3 - 10

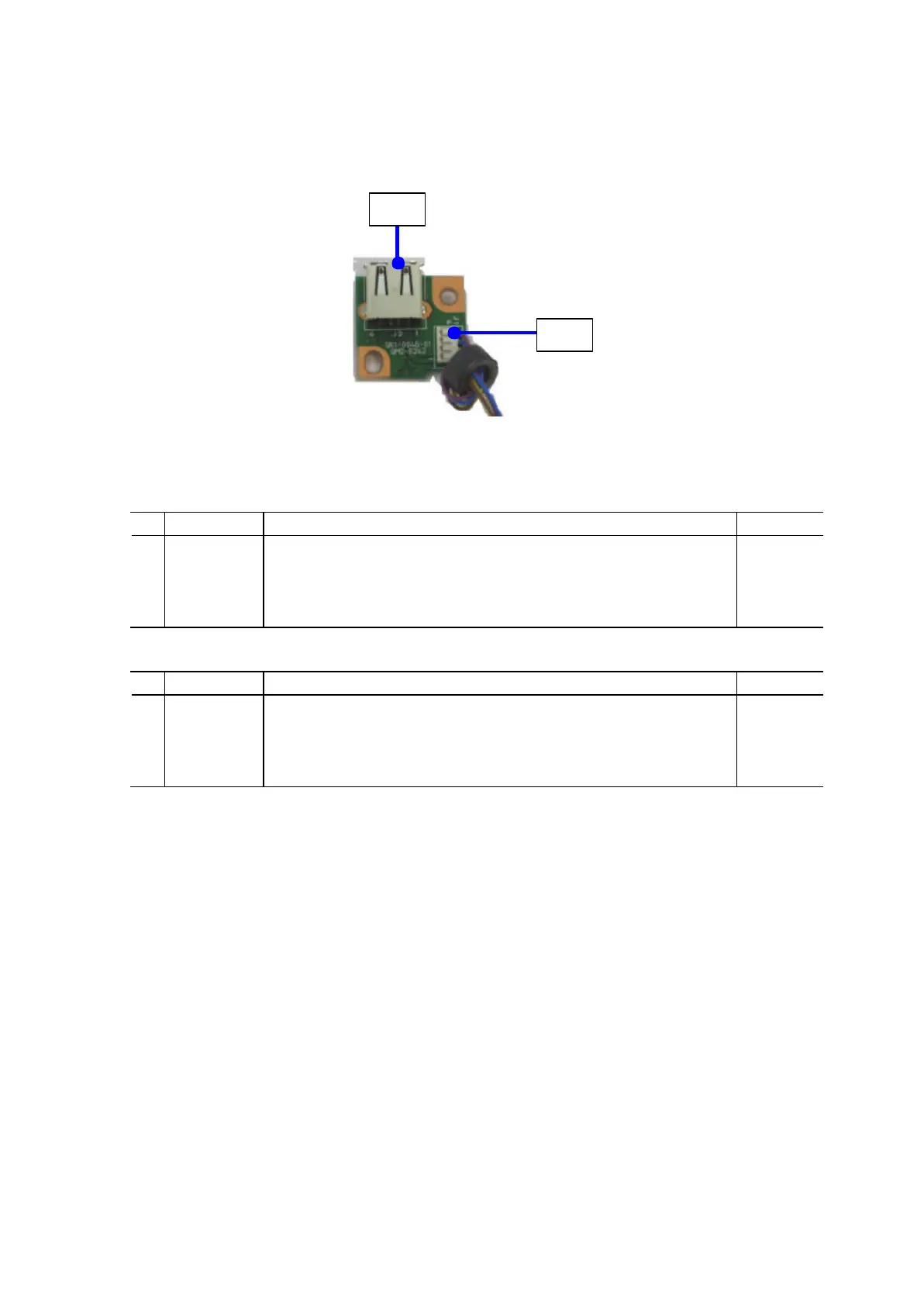

2.6 DCD Board Ass’y






J1 (Main PWB I/F)
No. Signal name Function Input/Output
1Vbus Cable power supply IN
2D- Data signal line I/O
3D+ Data signal line I/O
4GND Cable GND
J2 (Digital camera I/F: USB connector A)
No. Signal name Function Input/Output
1Vbus Cable power supply OUT
2D- Data signal line I/O
3D+ Data signal line I/O
4GND Cable GND

J2
J1
