This utility manages video recorded on an memory card. It allows you to play back recorded video and download it to a PC,
display a video list or perform filtering.

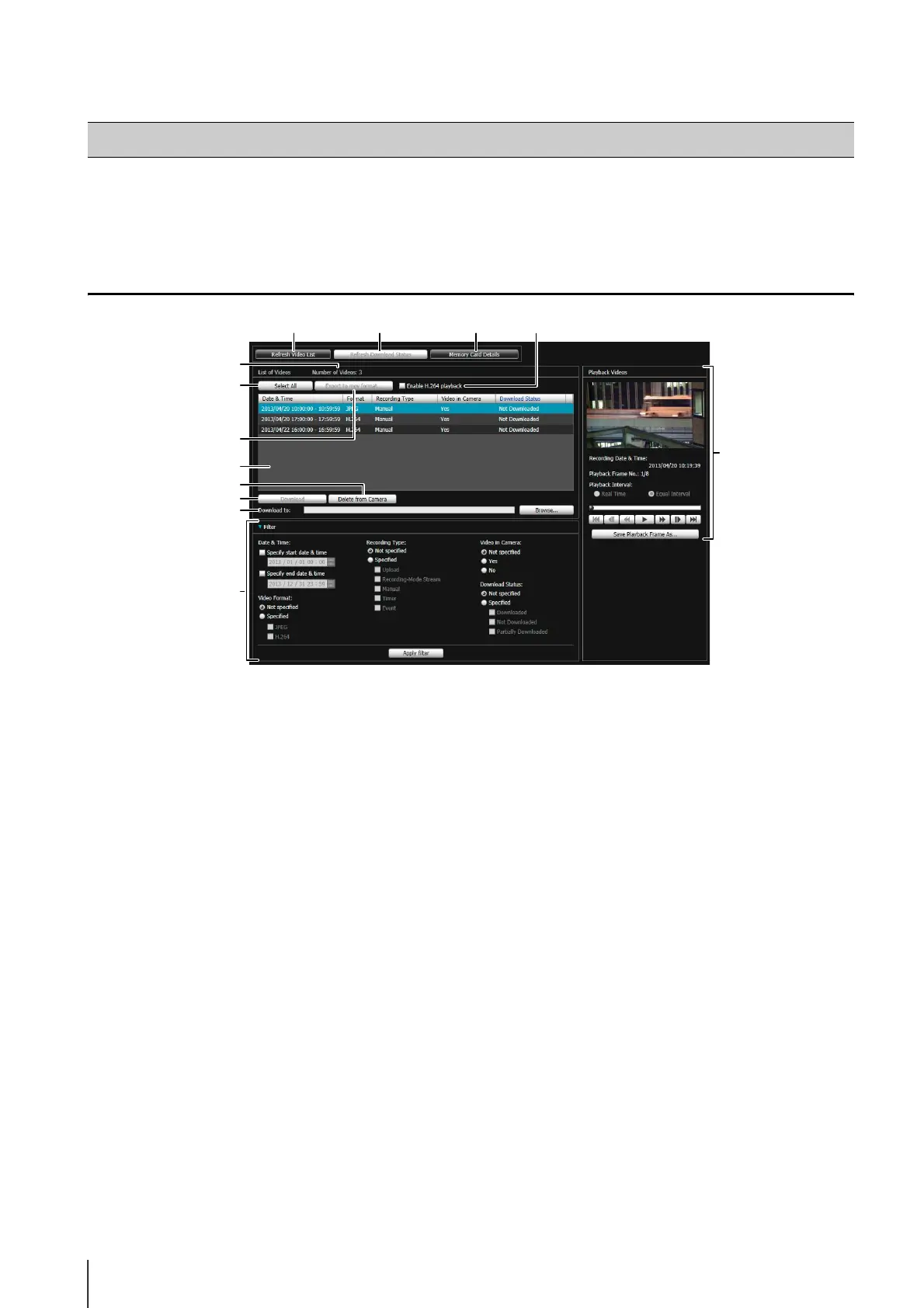

Display Screens of Recorded Video Utility
(1) [Refresh Video List]
Update the video list to the current state.
(2) [Refresh Download Status]
Update video download status to the current state.
(3) [Memory Card Details]
Displays the dialog box for details about the memory
card.
(4) [Number of Videos]
Displays the number of videos in the video list.
(5) [Select All]
Select all video in the video list.
(6) [Export to mov format]
Export the [Downloaded] video selected in the video
list to a mov format video file.
(7) [Enable H.264 playback] checkbox
Select to play H.264 video in the [Playback Videos]
area (p. 125).
(8) Video List
Displays a list of videos recorded on an memory card
and downloaded to a PC.
(9) [Delete from Camera]
Delete videos selected in the video list from the
memory card.
(10)[Download]
Download videos selected in the video list to a PC.
(11)[Download to]
Specify the folder that videos are downloaded to.
(12)[Filter]
Click [Filter] to open or close the filter area. Sets
criteria to narrow down the number of items displayed
in the video list (p. 123).
(13)[Playback Videos] Area
Plays videos selected in the video list (p. 124).
Recorded Video Utility
(1)
(12)
(8)
(11)
(10)
(9)
(5)
(6)
(4)
(2) (3) (7)
(13)

Canon VB-H43 Specifications

General

Type	IP security camera
PTZ control	Yes
Processor model	Canon DIGIC DV III
Placement supported	Indoor
Light exposure modes	Aperture priority AE, Auto, Manual, Shutter priority AE
Connectivity technology	Wired
Form factor	Dome
Mounting type	Ceiling
Product color	White
Total megapixels	2.1 MP
Maximum resolution	1920 x 1080 pixels
Supported video modes	1080p, 720p
Video formats supported	H.264, M-JPEG
Supported graphics resolutions	320 x 240, 960 x 540, 1280 x 960, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 640 x 480 (VGA)
Pan range	-170 - 170 °
White balance	Auto, Daylight, Fluorescent, Lamp, Manual
Tilt angle range	-90 - 10 °
Camera shutter speed	0.0000625 - 1 s
Minimum illumination	0.001 lx
Sensor type	CMOS
Optical sensor size	1/3 \
Digital zoom	12 x
Optical zoom	20 x
Focus adjustment	1.6 - 3.5
Focal length range	4.7 - 94 mm
Security algorithms	EAP-MD5, EAP-TLS, EAP-TTLS, SSL/TLS
Password protection type	User
Built-in HDD	No
Internal memory	5 MB
Compatible memory cards	SD, SDHC, SDXC
Cabling technology	10/100Base-T(X)
Supported network protocols	TCP/IP, UDP, HTTP, FTP, SNMP (MIB2), SMTP (Client), DHCP (Client), DNS (Client), ARP, ICMP, POP3, NTP, SMTP authentication, RTSP, WV-HTTP (Canon proprietary), ONVIF
Compliance industry standards	802.3af PoE
Interface	RJ-45
Ethernet LAN (RJ-45) ports	1
Audio system	2-way
Built-in microphone	-
AC input voltage	24 V
Power source type	PoE
Power consumption (max)	9.2 W
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	5 - 85 %

Weight and Dimensions

Width	132 mm
Height	155 mm
Weight	1140 g
