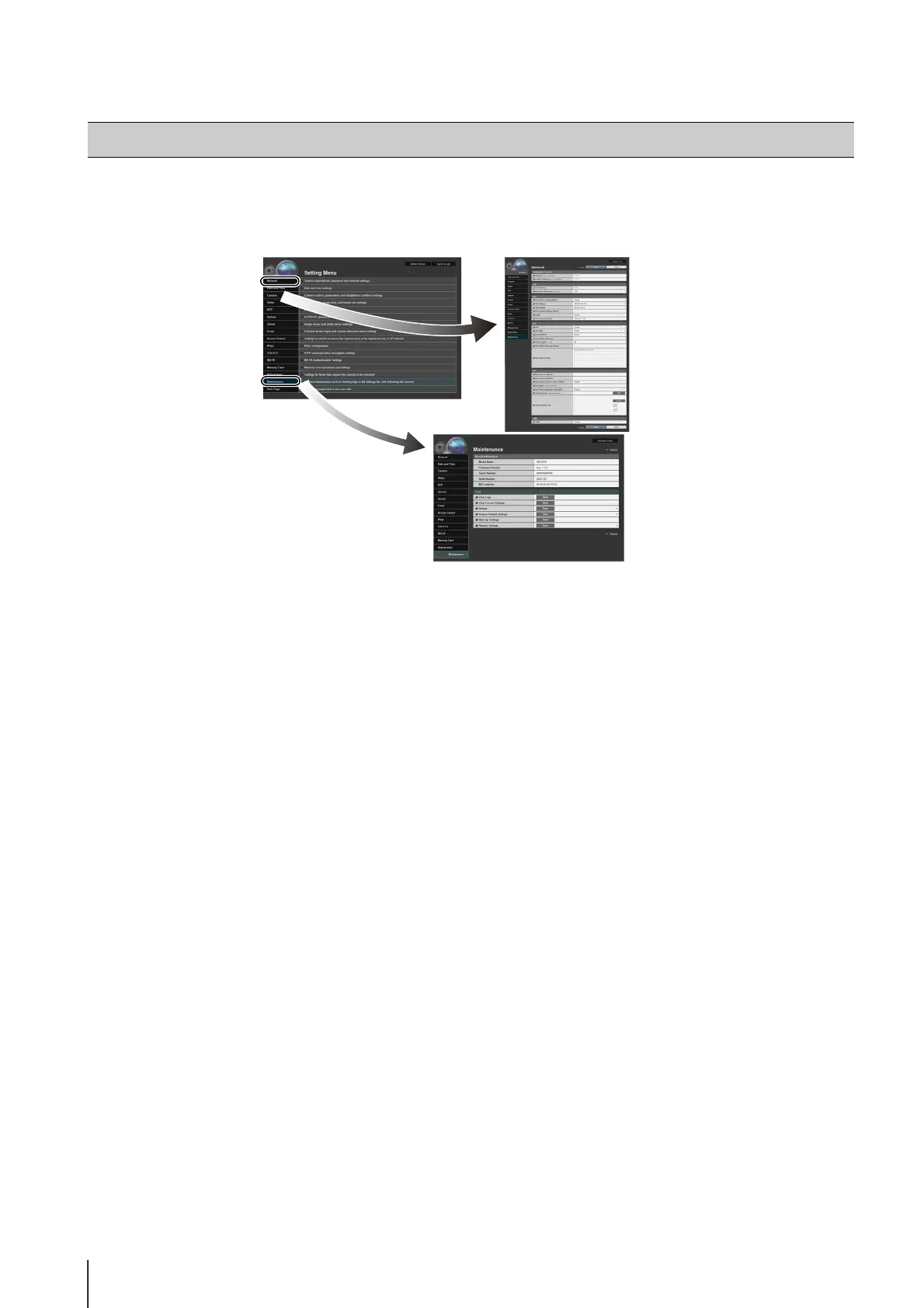

From the Setting Menu, you can navigate to each setting page to set various items regarding the camera.
Information describing what can be set from each setting page is listed as follows. See each setting page for details.
•Network
Administrator password, LAN, IPv4, IPv6, DNS and
SNMP Settings (p. 48)
• Date and Time
Camera date and time, time zone and daylight saving
time settings (p. 51)
• Camera
Camera name, initial camera settings, camera control,
day/night, installation conditions, camera position
control, external input device name and external output
device name settings (p. 53)
• Video
Video quality, video size, and frame rate settings for the
video size set, JPEG and H.264, as well as on-screen
display settings (p. 57)
•RTP
RTP Server, Audio Multicast and RTP Streaming
settings (p. 60)
•Upload
General upload and HTTP and FTP upload settings
and e-mail notification settings (p. 62)
• Server
Video server, audio server and HTTP server settings
(p. 65)
•Event
Video record settings, volume detection, external
device output, external device input, timer, and sound
clip upload (p. 67)
• Access Control
Authorized user account, user authorities, host access
restriction settings (p. 71)
•IPsec
IPsec settings (p. 73)
• SSL/TLS
Certificate creation, administrative settings and
encrypted communication settings (p. 76)
•802.1X
802.1X authentication settings and authentication
status display (p. 78)
• Memory Card
MEMORY card operations and information display
(p. 80)
• Reboot Item
Setting items that require the camera to be rebooted
(Reboot Item) (p. 83)
• Maintenance
Device information, displaying logs, current settings,
rebooting, restoring initial settings and backing up/
restoring settings (p. 84)
•User Page
Link to web page customized by the user (For details,
contact your nearest Canon Customer Service Center.)
Setting Menu
Setting Menu

Canon VB-H43 Specifications

General

Type	IP security camera
PTZ control	Yes
Processor model	Canon DIGIC DV III
Placement supported	Indoor
Light exposure modes	Aperture priority AE, Auto, Manual, Shutter priority AE
Connectivity technology	Wired
Form factor	Dome
Mounting type	Ceiling
Product color	White
Total megapixels	2.1 MP
Maximum resolution	1920 x 1080 pixels
Supported video modes	1080p, 720p
Video formats supported	H.264, M-JPEG
Supported graphics resolutions	320 x 240, 960 x 540, 1280 x 960, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 640 x 480 (VGA)
Pan range	-170 - 170 °
White balance	Auto, Daylight, Fluorescent, Lamp, Manual
Tilt angle range	-90 - 10 °
Camera shutter speed	0.0000625 - 1 s
Minimum illumination	0.001 lx
Sensor type	CMOS
Optical sensor size	1/3 \
Digital zoom	12 x
Optical zoom	20 x
Focus adjustment	1.6 - 3.5
Focal length range	4.7 - 94 mm
Security algorithms	EAP-MD5, EAP-TLS, EAP-TTLS, SSL/TLS
Password protection type	User
Built-in HDD	No
Internal memory	5 MB
Compatible memory cards	SD, SDHC, SDXC
Cabling technology	10/100Base-T(X)
Supported network protocols	TCP/IP, UDP, HTTP, FTP, SNMP (MIB2), SMTP (Client), DHCP (Client), DNS (Client), ARP, ICMP, POP3, NTP, SMTP authentication, RTSP, WV-HTTP (Canon proprietary), ONVIF
Compliance industry standards	802.3af PoE
Interface	RJ-45
Ethernet LAN (RJ-45) ports	1
Audio system	2-way
Built-in microphone	-
AC input voltage	24 V
Power source type	PoE
Power consumption (max)	9.2 W
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	5 - 85 %

Weight and Dimensions

Width	132 mm
Height	155 mm
Weight	1140 g
