Canon VB-H43 User Manual

134
Display Screens of Admin Viewer
The following gives an overview of the functions of buttons, boxes and other screen elements displayed in the Admin
Viewer.

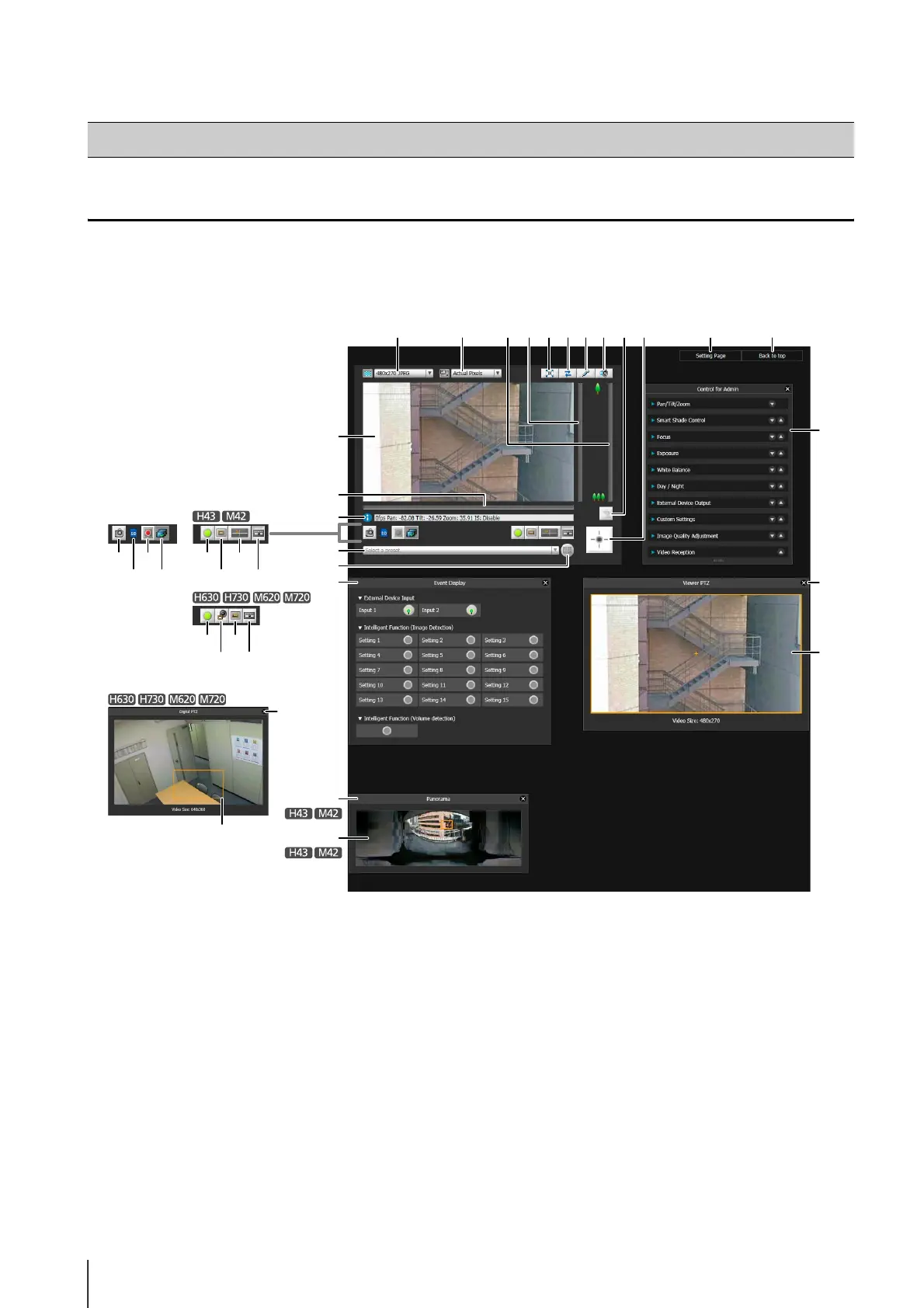

The following screen shows the Admin Viewer with all panels opened. In practice, you only open panels that are necessary,
and can put them anywhere desired in the web browser.
(1) Image Display Area
Displays images received from the camera.
(2) Video Size
Set the size and format of video received from the
camera.
(3) Video Display Size
Set the display size of the image shown on the screen.
(4) [Full Screen Mode] button
Live images are shown in full screen mode.
(5) [Reconnect] button
The camera is reconnected.
(6) [Audio Transmission] button
Displays the Audio Transmission panel.
(7) [Audio Reception] button
Displays the Receive Audio panel.
(8) Slider for tilt
This slider is used to control the tilt (vertical
movement) of the camera.
(9) Slider for pan
This slider is used to control the pan (horizontal
movement) of the camera.
(10)Slider for zoom
This slider is used to control the zoom ratio.
You can zoom in (telephoto) by moving the knob
upwards or zoom out (wide-angle) by moving the
knob downwards.
How to Operate the Viewer
(20)(16)
(32)
(1)
(9)
(17)
(18)
(19)
(13)
(14)
(31)
(33)
(34)
(28)
(10)(3)(2) (8) (4) (6)(5) (7)
(15) (21)
(22)
(18) (19)
(21)
(29)
(23)
(24)
(11)(12)
(25)
(26)
(27)
(30)

Canon VB-H43 Specifications

General

Type	IP security camera
PTZ control	Yes
Processor model	Canon DIGIC DV III
Placement supported	Indoor
Light exposure modes	Aperture priority AE, Auto, Manual, Shutter priority AE
Connectivity technology	Wired
Form factor	Dome
Mounting type	Ceiling
Product color	White
Total megapixels	2.1 MP
Maximum resolution	1920 x 1080 pixels
Supported video modes	1080p, 720p
Video formats supported	H.264, M-JPEG
Supported graphics resolutions	320 x 240, 960 x 540, 1280 x 960, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 640 x 480 (VGA)
Pan range	-170 - 170 °
White balance	Auto, Daylight, Fluorescent, Lamp, Manual
Tilt angle range	-90 - 10 °
Camera shutter speed	0.0000625 - 1 s
Minimum illumination	0.001 lx
Sensor type	CMOS
Optical sensor size	1/3 \
Digital zoom	12 x
Optical zoom	20 x
Focus adjustment	1.6 - 3.5
Focal length range	4.7 - 94 mm
Security algorithms	EAP-MD5, EAP-TLS, EAP-TTLS, SSL/TLS
Password protection type	User
Built-in HDD	No
Internal memory	5 MB
Compatible memory cards	SD, SDHC, SDXC
Cabling technology	10/100Base-T(X)
Supported network protocols	TCP/IP, UDP, HTTP, FTP, SNMP (MIB2), SMTP (Client), DHCP (Client), DNS (Client), ARP, ICMP, POP3, NTP, SMTP authentication, RTSP, WV-HTTP (Canon proprietary), ONVIF
Compliance industry standards	802.3af PoE
Interface	RJ-45
Ethernet LAN (RJ-45) ports	1
Audio system	2-way
Built-in microphone	-
AC input voltage	24 V
Power source type	PoE
Power consumption (max)	9.2 W
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	5 - 85 %

Weight and Dimensions

Width	132 mm
Height	155 mm
Weight	1140 g
