Canon VB-H43 User Manual

Privacy Mask Setting Tool
91
6
Admin Tools

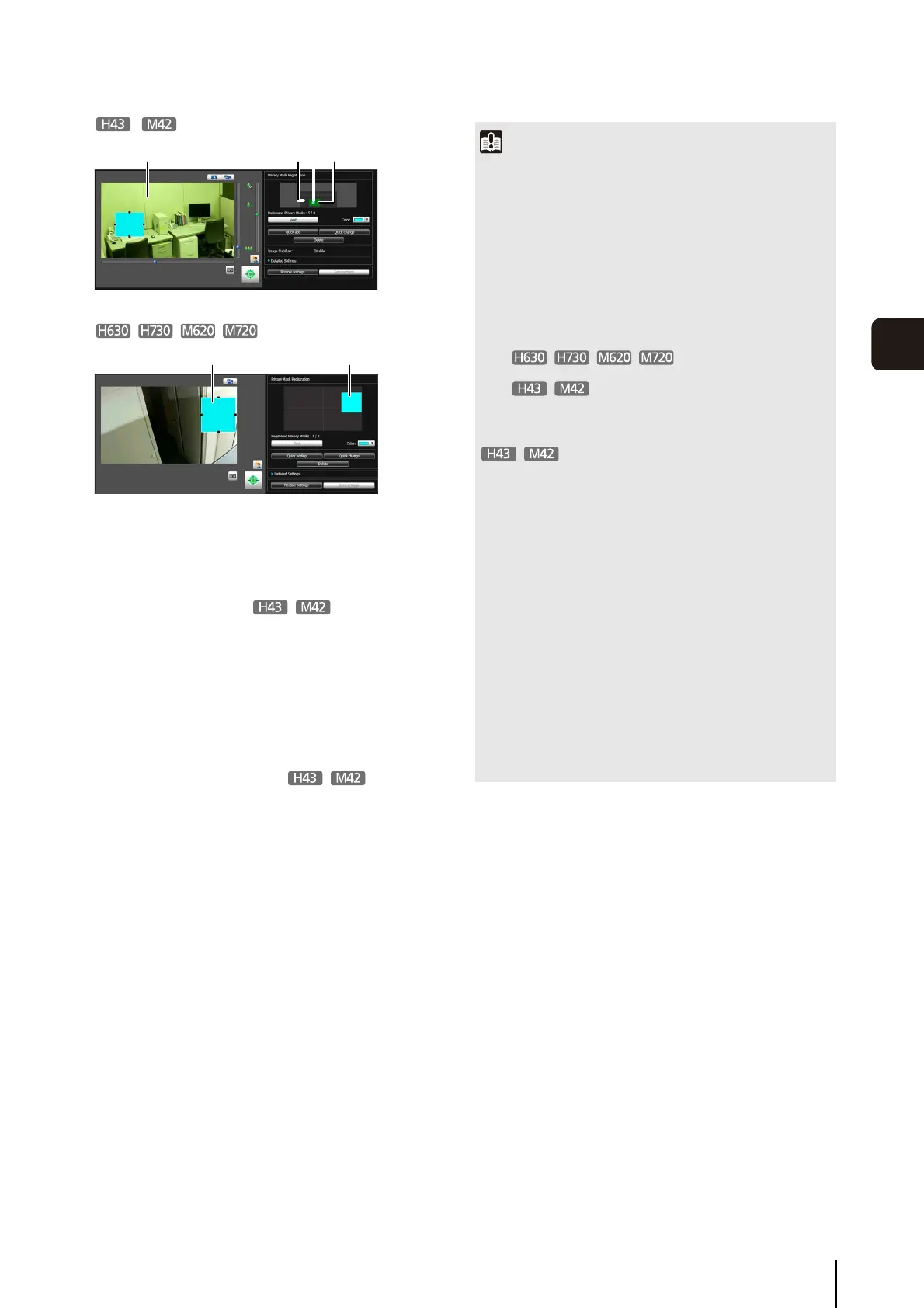

(1) Privacy Mask Area
Enabled privacy mask areas are shown filled with
color. Disabled privacy mask areas are just shown
in a frame.
(2) View Restriction Area
This is the area set with the View Restriction Setting
Tool.
(3) Privacy Mask Area
Privacy masks for which the [Enable privacy mask]
checkbox is selected are shown filled with color.
Privacy masks that are not selected are shown in a
hatched frame.
(4) Maximum Wide-angle Area
This is the visible area when the camera is at
maximum wide angle. This area is only shown
when a privacy mask area (3) is being dragged.
(1) (2)(3) (4)
(1) (3)
Important
• The privacy mask areas are also part of the intelligent
function detection area. Subject movement may be seen.
• Privacy masks are applied to all images transmitted from the
camera (live video, uploaded images, recorded video, video
recorded to an memory card).
• Check privacy mask settings again if the [Video] > [Video
Size Set] settings on the Setting page have been changed.
• The privacy mask function is not available in the following
situations:
– While the camera is starting up after being turned on
– Camera video in the
Camera Angle Setting Tool
– While a panorama image is being created
• The position of the privacy mask will need to be set again if
the image flip setting is changed.
• You can set privacy masks for optical zoom areas only.
Privacy mask areas cannot be set in digital zoom areas.
• Privacy masks may deviate slightly from the specified
position depending on the zoom position.
• Set the privacy mask area to a somewhat larger size than the
area you want to hide. Also, be sure to confirm that after
setting a privacy mask, the area you want to hide does not
become visible when the camera direction is altered by pan,
tilt, or zoom operations.
• If the privacy mask settings were changed after a panorama
image was saved using the Panorama Creation Tool, the
panorama image must be recreated using the Panorama
Creation Tool.
• Reconfigure all privacy mask positions and sizes when
reconfiguring privacy mask settings after the image stabilizer
setting was changed.

Canon VB-H43 Specifications

General

Type	IP security camera
PTZ control	Yes
Processor model	Canon DIGIC DV III
Placement supported	Indoor
Light exposure modes	Aperture priority AE, Auto, Manual, Shutter priority AE
Connectivity technology	Wired
Form factor	Dome
Mounting type	Ceiling
Product color	White
Total megapixels	2.1 MP
Maximum resolution	1920 x 1080 pixels
Supported video modes	1080p, 720p
Video formats supported	H.264, M-JPEG
Supported graphics resolutions	320 x 240, 960 x 540, 1280 x 960, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 640 x 480 (VGA)
Pan range	-170 - 170 °
White balance	Auto, Daylight, Fluorescent, Lamp, Manual
Tilt angle range	-90 - 10 °
Camera shutter speed	0.0000625 - 1 s
Minimum illumination	0.001 lx
Sensor type	CMOS
Optical sensor size	1/3 \
Digital zoom	12 x
Optical zoom	20 x
Focus adjustment	1.6 - 3.5
Focal length range	4.7 - 94 mm
Security algorithms	EAP-MD5, EAP-TLS, EAP-TTLS, SSL/TLS
Password protection type	User
Built-in HDD	No
Internal memory	5 MB
Compatible memory cards	SD, SDHC, SDXC
Cabling technology	10/100Base-T(X)
Supported network protocols	TCP/IP, UDP, HTTP, FTP, SNMP (MIB2), SMTP (Client), DHCP (Client), DNS (Client), ARP, ICMP, POP3, NTP, SMTP authentication, RTSP, WV-HTTP (Canon proprietary), ONVIF
Compliance industry standards	802.3af PoE
Interface	RJ-45
Ethernet LAN (RJ-45) ports	1
Audio system	2-way
Built-in microphone	-
AC input voltage	24 V
Power source type	PoE
Power consumption (max)	9.2 W
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	5 - 85 %

Weight and Dimensions

Width	132 mm
Height	155 mm
Weight	1140 g
