Canon VIXIA HF S10 User Manual

External Connections  121

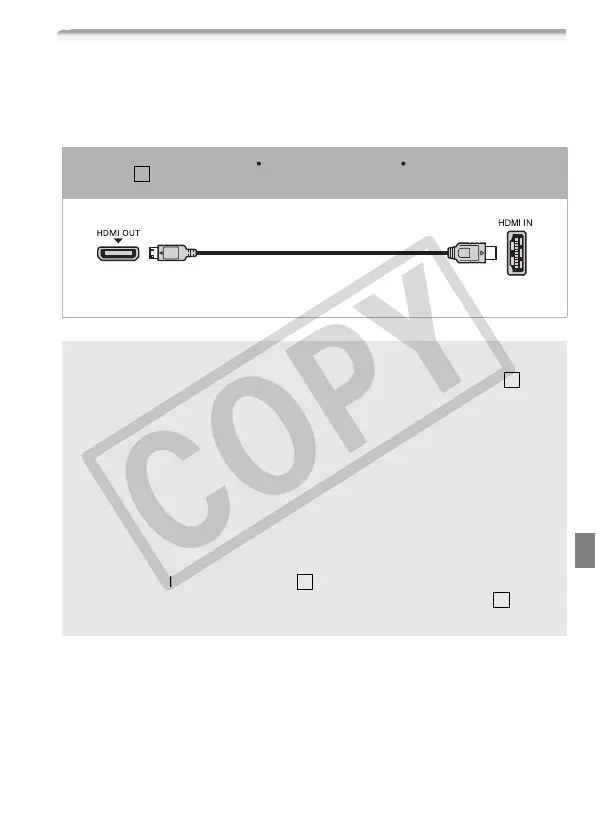

Connection Diagrams
In the following connection diagrams, the left side shows the terminals
on the camcorder and the right side shows (for reference only) an
example of terminals on a connected device.
Connection
Type: Digital Quality: High definition Output only
Connect to a high-definition TV (HDTV) with an HDMI input terminal.
1
HTC-100 HDMI Cable
(optional)
(HDMI mini-
connector)
(standard HDMI
connector)
About the HDMI
TM
connection
The HDMI (High-Definition Multimedia Interface) connection ( ) is a
convenient all-digital connection using a single cable for both video
and audio. When you connect the camcorder to an HDTV equipped
with an HDMI terminal, you can enjoy video and audio playback at
the highest quality.
- The HDMI OUT terminal on the camcorder is for output only. Do not
connect it to an HDMI output terminal on an external device, as this
may damage the camcorder.
- Correct operation cannot be guaranteed when connecting the
camcorder to DVI monitors.
- Depending on the HDTV, correct playback of personal video content may
not be possible using connection . Try one of the other connections.
- While the camcorder is connected to an HDTV using connection , there
will be no video output from other terminals.
1
1
1
COPY

Canon VIXIA HF S10 Specifications

General

Filter size	58 mm
Digital zoom	200 x
Optical zoom	10 x
Image stabilizer	Yes
Focal length range	6.4 - 64 mm
Focal length (35mm film equivalent)	43.5 - 435 mm
Sensor type	CMOS
Total megapixels	8.59 MP
Optical sensor size	1/2.6 \
Optical sensor resolution	8020000 pixels
Effective megapixels (movie)	6010000 MP
Focus	TTL
Interface	USB 2.0
Video out	1
Resolution	3264 x 2456 pixels
Display diagonal	2.7 \
Macro focusing range	0.1 m
Normal focusing range	1 m
Video formats supported	H.264
Maximum video resolution	1920 x 1080 pixels
Analog signal format system	NTSC
Flash memory	32 GB
Camcorder tape type	HDV
Compatible memory cards	SD, SDHC
Minimum illumination	0.3 lx
Shutter speed (photo)	1/500 s
Shutter speed (video)	1/2000 s
Product color	Black
Battery type	BP-807
Video recording time	12.25 h
Bundled software	Pixela ImageMixer 3SE

Weight and Dimensions

Depth	136 mm
Width	70 mm
Height	69 mm
Weight	500 g
