5.4 Connessioni elettriche pLAN
La connessione tra schede in pLAN si effettua usando esclusivamente
un cavo schermato AWG20/22 costituito da una coppia ritorta e lo
schermo. Le schede vanno collegate in parallelo facendo riferimento al
morsetto J11.
ATTENZIONE rispettare le polarità di rete: RX/TX+ di una scheda
deve essere collegato al RX/TX+ delle altre schede; la stessa cosa per
RX/TX-.

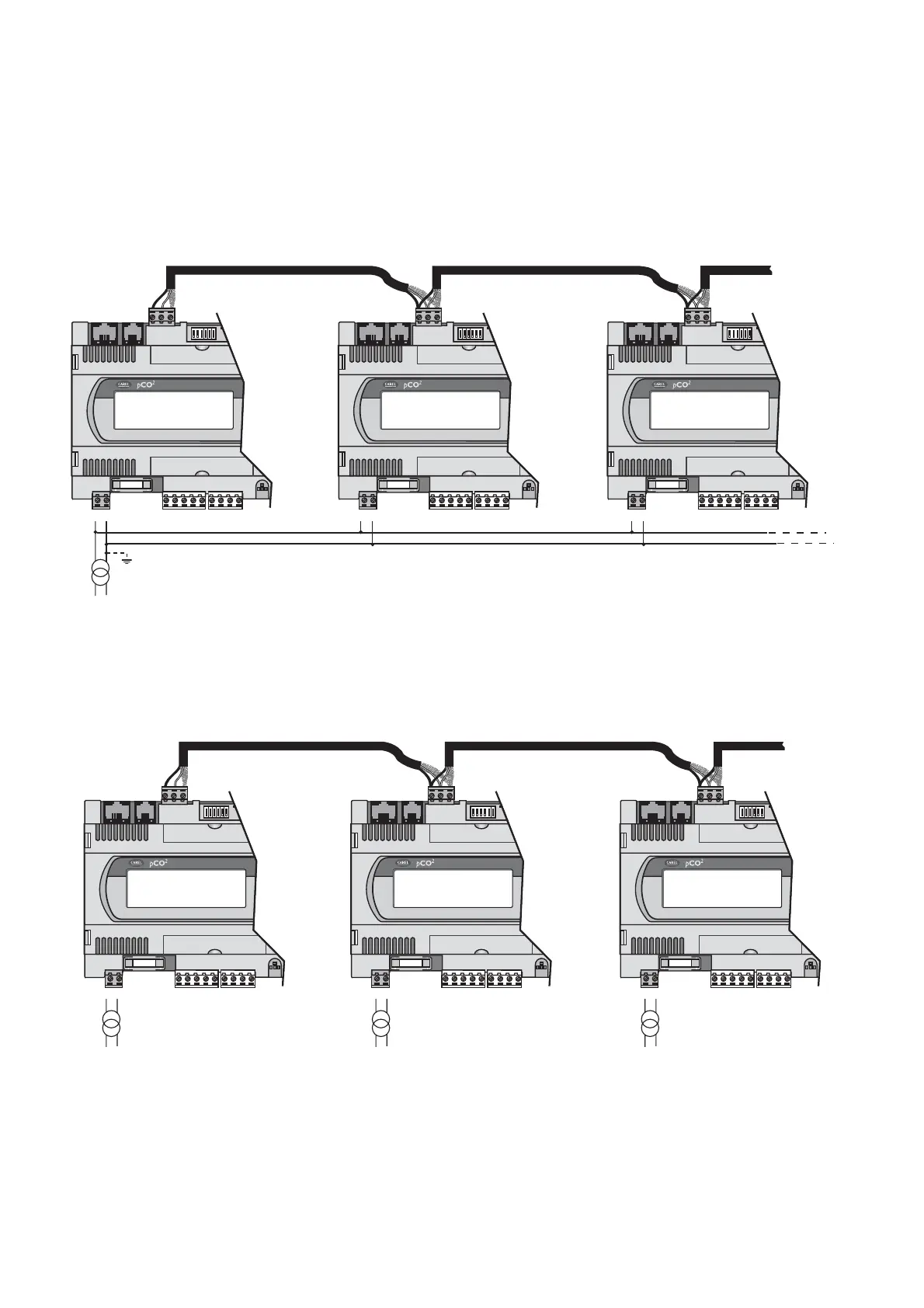

La Fig. 5.4.1 rappresenta lo schema di più schede collegate in rete pLAN
alimentate dallo stesso trasformatore; questa è una tipica applicazione di
più schede collegate all’interno di uno stesso quadro elettrico.
La Fig. 5.4.2 rappresenta lo schema di più schede collegate in rete
pLAN alimentate da trasformatori diversi (con il G0 non connesso a
terra); questa è una tipica applicazione di più schede che fanno parte
di quadri elettrici diversi.
La Fig. 5.4.3 rappresenta lo schema di più schede collegate in rete
pLAN alimentate da trasformatori diversi con unico riferimento di terra;
questa è una tipica applicazione di più schede che fanno parte di
quadri elettrici diversi.
5.4 pLAN electrical connections
Connection between boards in a pLAN network is carried out using an
AWG20/22 shielded cable, made up of a twisted pair plus shield.The
boards are connected in parallel, with terminal J11 as the reference.
Pay ATTENTION to the network polarity:RX/TX+ on one board must
be connected to RX/TX+ on the other boards; the same is true for
RX/TX-.
Fig. 5.4.1 shows a diagram of a number of boards connected in a
pLAN network and powered by the same transformer (typical
application: a number of boards connected inside the same electrical
panel).
Fig. 5.4.2 shows a diagram of a number of boards connected in a
pLAN network and powered by different transformers (with G0 not
earthed).Typical application: a number of boards inside different
electrical panels
Fig. 5.4.3 shows a diagram of a number of boards connected in a
pLAN network and powered by different transformers with the same
earth reference.Typical application: a number of boards inside different
electrical panels.
38
pCO
2
- cod. +030221835 rel. 3.0 - 18.02.03
AWG 20/22 AWG 20/22 AWG 20/22
Fuse
built-in terminal
G
G0
RX-/TX+
RX+/TX-
GND
Fuse
built-in terminal
G
G0
RX-/TX+
RX+/TX-
GND
Fuse
built-in terminal
G
G0
RX-/TX+
RX+/TX-
GND
AWG 20/22 AWG 20/22 AWG 20/22
Fuse
built-in terminal
G
G0
RX-/TX+
RX+/TX-
GND
Fuse
built-in terminal
G
G0
RX-/TX+
RX+/TX-
GND
Fuse
built-in terminal
G
G0
RX-/TX+
RX+/TX-
GND
Fig. 5.4.1
Fig. 5.4.2
