Casio CDP-120 Service Manual

CDP-120
– 11 –

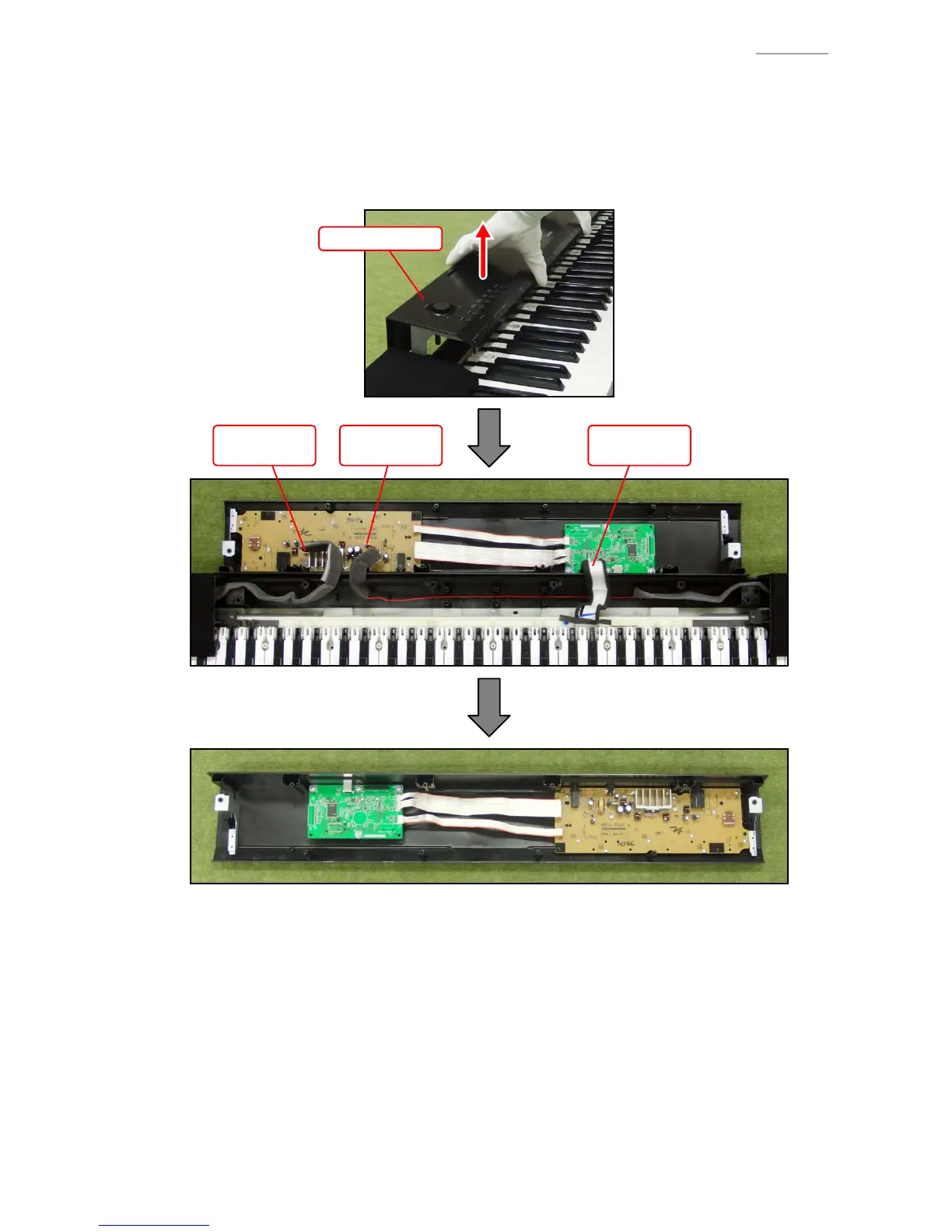

A-4. Place the main unit with the keys facing up.
A-5. Lift the main panel unit and turn it over.
NOTE: The main panel unit is connected to the lower case unit with the connectors and FFC.
Use caution when turn over the main panel unit.
A-6. Release the connector lock and remove the FFC.
A-7. Remove two connectors and then remove the main panel unit.
Main panel unit
Connector
(Right speaker)
FFC
(M914-KYB1)
Connector
(Left speaker)

Casio CDP-120 Specifications

General

Sound effects	Reverberation
Number of speakers	2
Chorus effects quantity	5
Maximum polyphony (notes)	48
Reverberation effects quantity	10
USB version	2.0
USB connector type	USB Type-B
Keys quantity	88 keys
Product color	Black

Weight and Dimensions

Depth	286 mm
Width	1322 mm
Height	129 mm
Weight	11400 g
