Casio CDP-120 Service Manual

CDP-120
– 20 –
B. REMOVE THE HAMMERS
B-1. Place the chassis upside down so that the hammers are visible.
B-2. Press the chassis with the tip of tweezers.
B-3. While catching a hammer with tweezers, set the tweezers against the resin part of the chassis.
B-4. Using the chassis-tweezer contact as a fulcrum point, press down against the resin part in the
direction of the red arrow in the illustration below, and then disengage the hammer.
NOTE: You must press the resin part of the hammer.
NOTE: Pressing on the metal part of the hammer may damage the area connected to the resin.

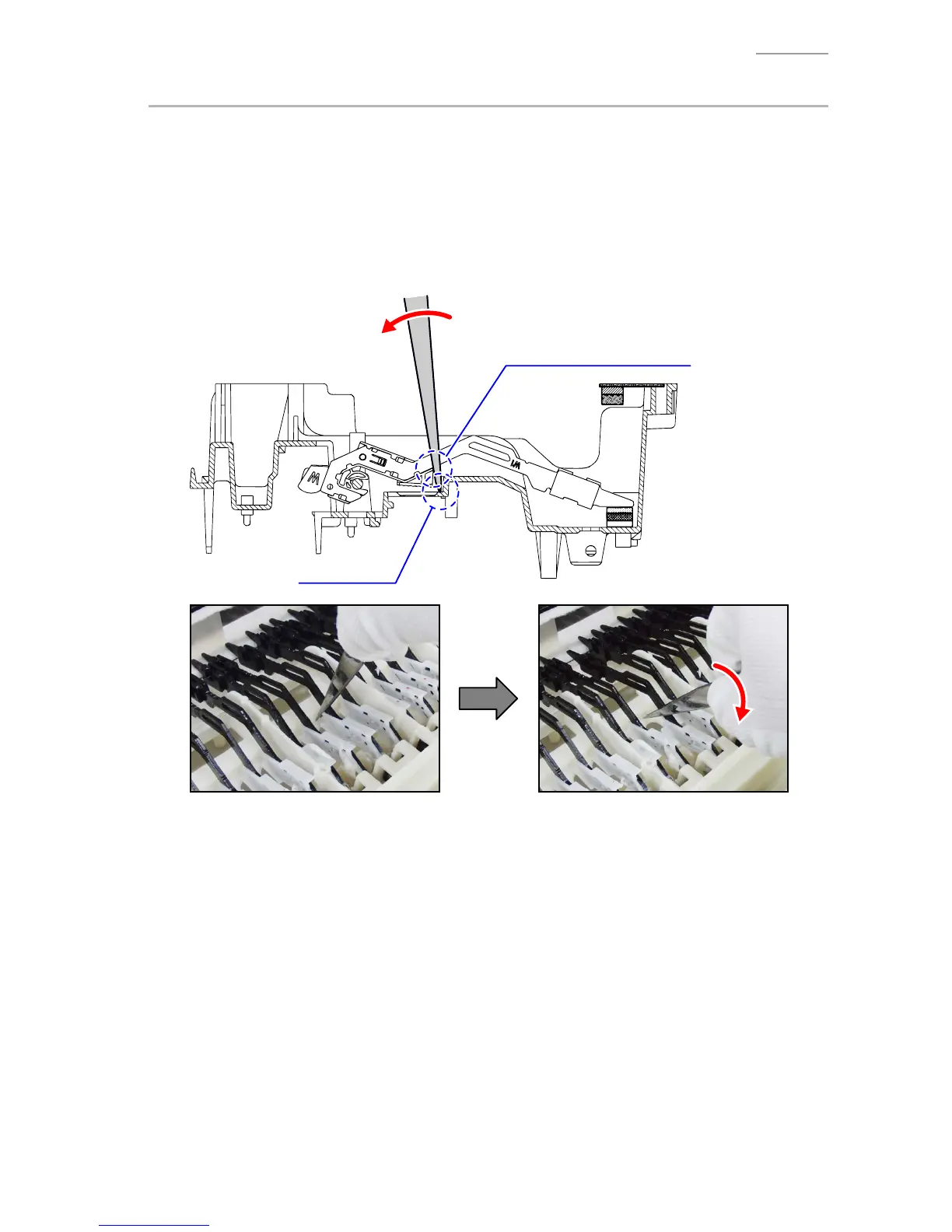

Tweezers
Press down the resin part.
Fulcrum point

Casio CDP-120 Specifications

General

Sound effects	Reverberation
Number of speakers	2
Chorus effects quantity	5
Maximum polyphony (notes)	48
Reverberation effects quantity	10
USB version	2.0
USB connector type	USB Type-B
Keys quantity	88 keys
Product color	Black

Weight and Dimensions

Depth	286 mm
Width	1322 mm
Height	129 mm
Weight	11400 g
