Casio CDP-120 Service Manual

CDP-120
– 17 –

DISASSEMBLY OF THE KY-ASSY
A. REMOVE THE KEYS
<Removing the keys>
• To remove the keys, you will need two of the tools described below.
• Before removing a black key, you must rst remove both white keys on either side of the black
key.
• White keys may be removed with the same procedures as removing black keys.
<Tool>
The tool used in the photos in this section was converted from a gardening ID tag. The size and
shape of an ID tag accord to the dimensions below.
<Note on shaping an ID tag>
The thickness of the tool must be within 1.2~1.3 mm. If the tool is too thin, removing keys become
difcult. If the tool is too thick, it may damage the rib of the chassis.

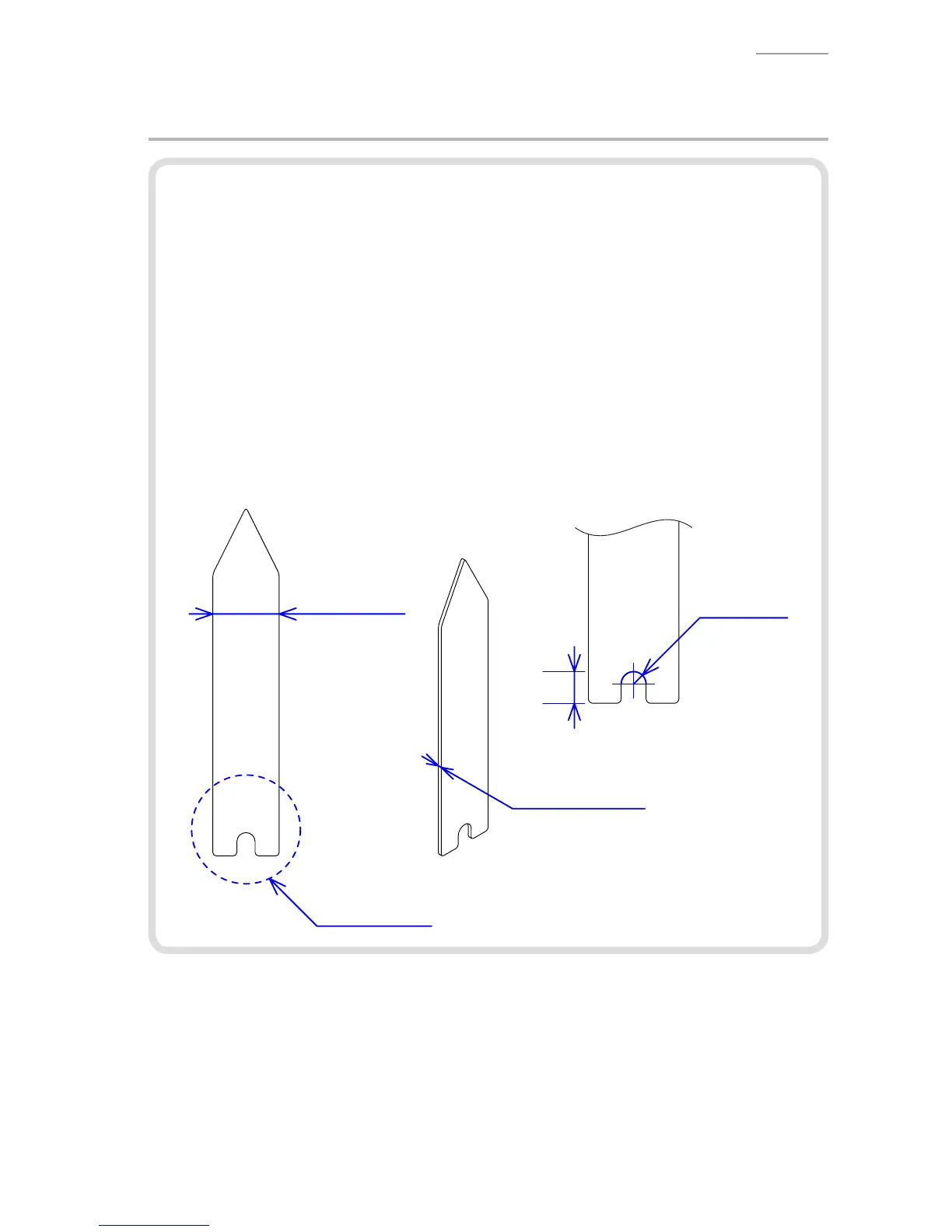

<Tool dimensions>
Width:
15~20 mm
R=2.75 mm
Use this part to
remove the key.
7 mm
Thickness:
within 1.2~1.3 mm

Casio CDP-120 Specifications

General

Sound effects	Reverberation
Number of speakers	2
Chorus effects quantity	5
Maximum polyphony (notes)	48
Reverberation effects quantity	10
USB version	2.0
USB connector type	USB Type-B
Keys quantity	88 keys
Product color	Black

Weight and Dimensions

Depth	286 mm
Width	1322 mm
Height	129 mm
Weight	11400 g
