Casio CDP-120 Service Manual

CDP-120
– 15 –

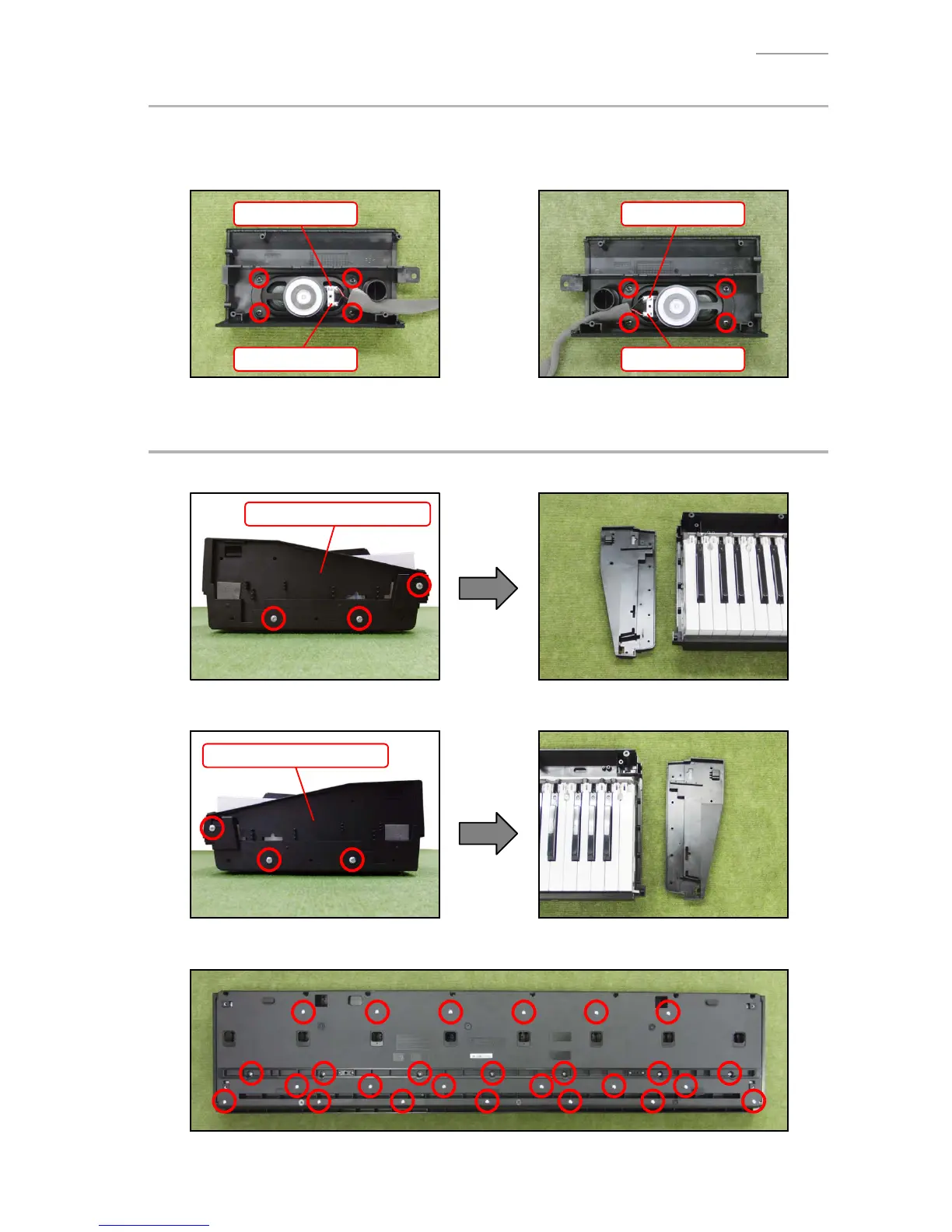

D. REMOVE THE SPEAKER
D-1. Unsolder two lead wires.
D-2. Undo four screws and then remove the SPEAKER.
<Left speaker> <Right speaker>
Lead wire (Black)
Lead wire (Red)
Lead wire (Red)
Lead wire (Black)
E. REMOVE THE KY-ASSY
E-1. Undo three screws and then remove the LEFT-SIDE-INNER-CASE.
LEFT-SIDE-INNER-CASE
E-2. Undo three screws and then remove the RIGHT-SIDE-INNER-CASE.
RIGHT-SIDE-INNER-CASE
E-3. Undo 26 screws.

Casio CDP-120 Specifications

General

Sound effects	Reverberation
Number of speakers	2
Chorus effects quantity	5
Maximum polyphony (notes)	48
Reverberation effects quantity	10
USB version	2.0
USB connector type	USB Type-B
Keys quantity	88 keys
Product color	Black

Weight and Dimensions

Depth	286 mm
Width	1322 mm
Height	129 mm
Weight	11400 g
