Casio IT-G500 User Manual

– 52 –
IT-G500
6-2. Separating the INNER-CASE-UNIT and UPPER-CASE-UNIT
Y
WAN model: (1) to (4)

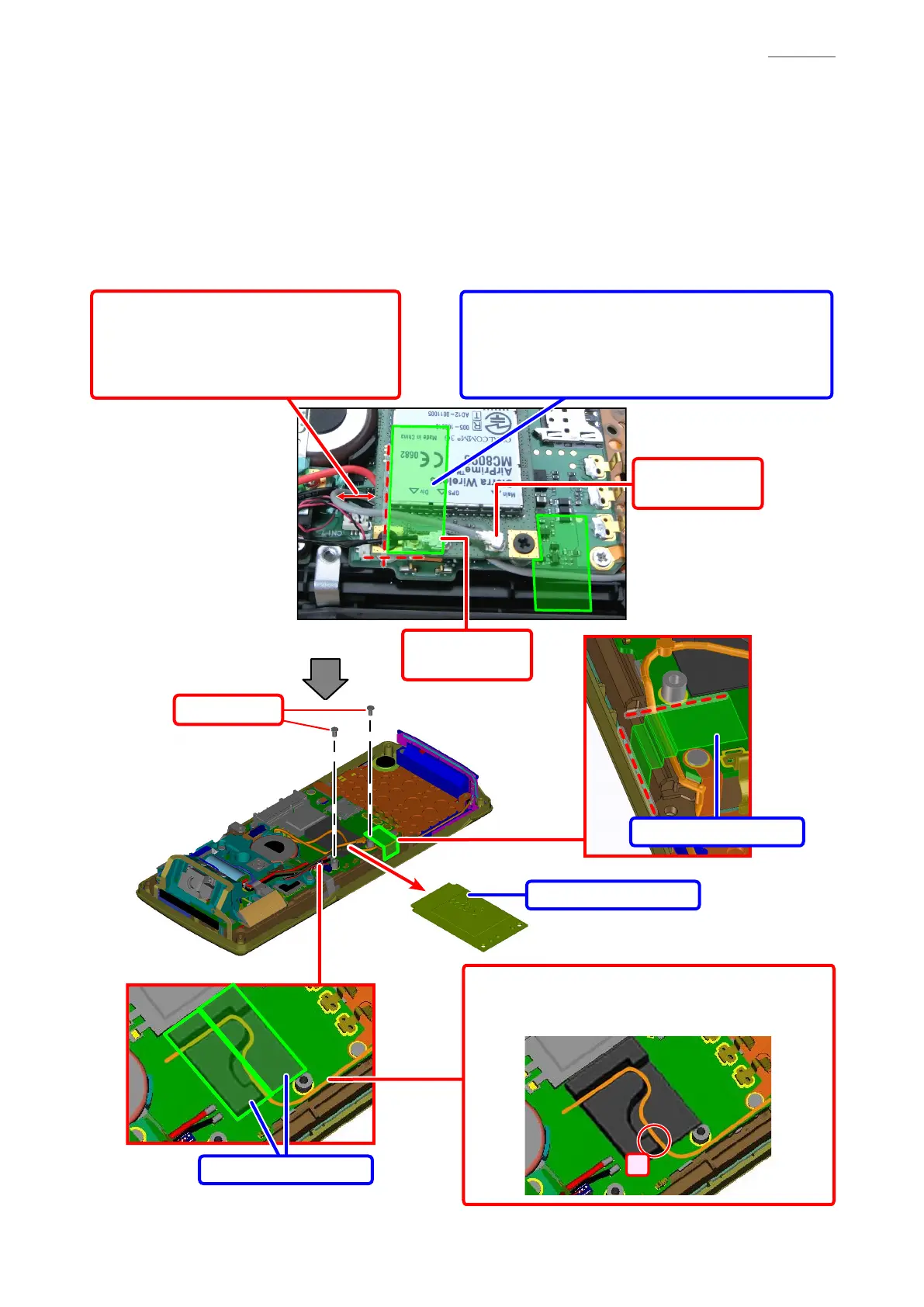

(1) Peel off the tape (TAPE/CONNECTOR-C) (1 place).
(2) Disconnect the W-WAN cable and GPS cable.
(3) Undo 2 screws and remove the WAN/GPS-MODULE.
(4) Peel off the tape (TAPE/CONNECTOR-C) (1 place).
(5) Peel off the tape (TAPE/CONNECTOR-C) (2 places).
TAPE/CONNECTOR-C
[ Note on reassembling ]
When attaching it, be sure that the W-WAN cable
does not run on the convex part of the module.
Screws (S5)
[ Note on reassembling ]
Separate the W-WAN cable from the
module as much as possible.
W-WAN Cable
(Main Connector)
GPS Cable
(GPS Connector)
[ Note on reassembling ]
Run the cable as shown below. In this case,
run it along the protruding part “a”.
a
TAPE/CONNECTOR-C
TAPE/CONNECTOR-C
WAN/GPS-MODULE
