– 9 –
3. TECHNICAL INFORMATION

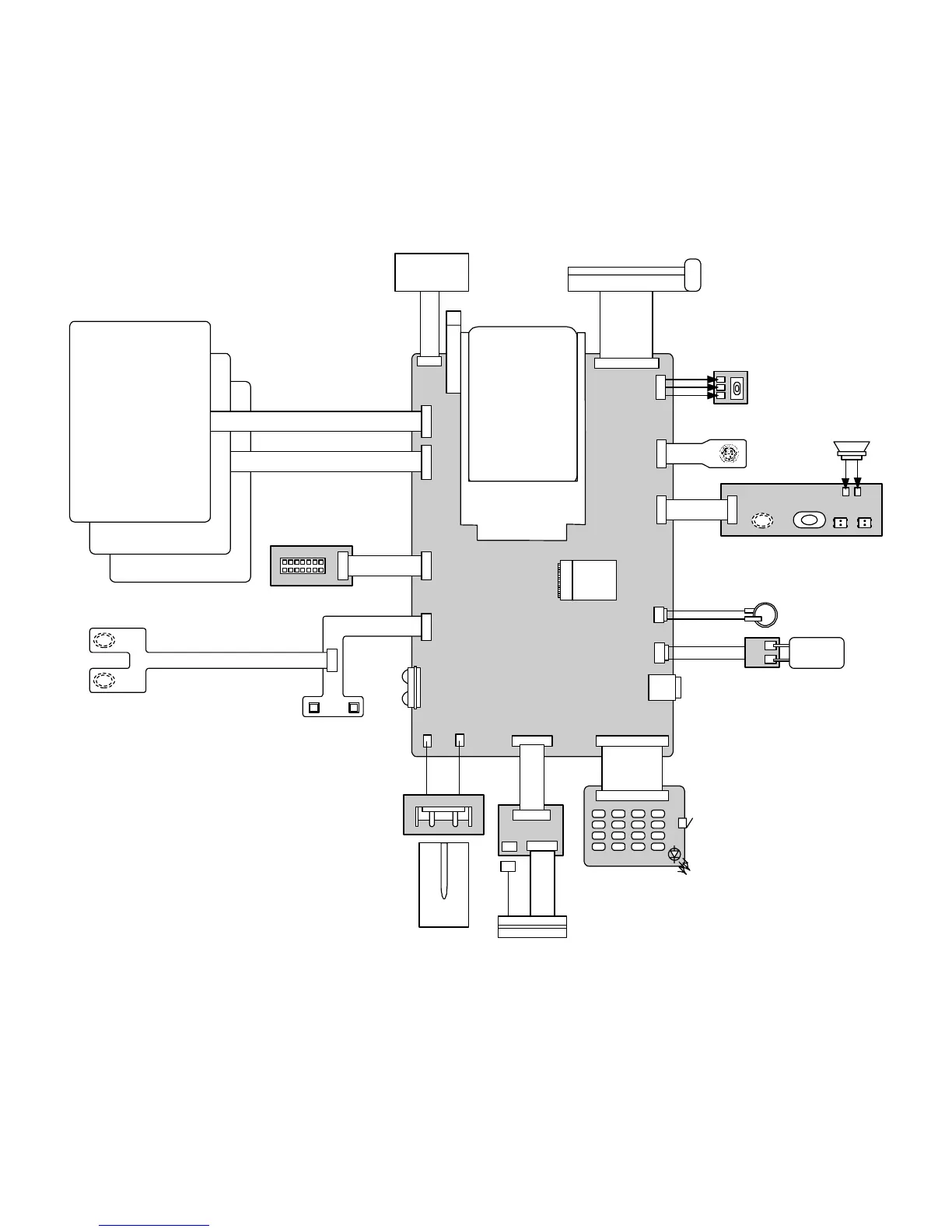

3-1. WIRING DIAGRAM
Back light
LCD
FPC
2D
Scanner
PCMCIA
CARD
PCMCIA
CONNECTOR
68pin
MAIN PCB
SD
CARD
Printer
FPC
FPC
FFC
DC Jack
FPC
FFC
IrDA
Main
Battery
MCR
Head
KEY PCB
LED
LED LED
Battery cover detect
MCR PCB
13pin
13pin
2pin
10pin
14pin
9pin 3pin
2pin
16pin
30pin
22pin
CN6
CN19
CN801
CN7
CN28 CN29 CN14 CN16
CN3
CN800
CN12
CN15
J1
CN24
CN22
CN11
CN13
CN20
9pin
45pin
12pin
4pin
14pin
16pin
6pin
3pin
Triger KEY
14pin I/F
FPC
Touch Panel
FFC
FPC
FPC
8pin I/F
Speaker
Paper
Sensor
Power
key
Sub Battery
Super
CAP
Illuminance
sensor
