— 4 —
ADJUSTMENT
■ Preparation
1. PC (IBM Compatible)/OS:Windows 95/98
2. Link cable.
3. Adjustment program
1) ADJ716.EXE (Color adjustment data transfer program)
2) FLOAD.EXE (Camera unit version up program)
3) 786 romXXXX.bin (Camera unit program data)
4) 786gmenugXXXX.bin (Camera unit menu display data)
5) qv3500ex.bin (Upgrade data for CF cards)
4. AC adaptor or stabilizer
5. Digital oscilloscope
6. Multimeter
7. Ammeter
8. Frequency counter
9. TV (with video terminal)
10. Video cable
11. Battery (battery operation/battery cover lock)
12. PC link program : Photo Loader (Communication function confirmation)
13. USB cable/USB driver (USB function confirmation)

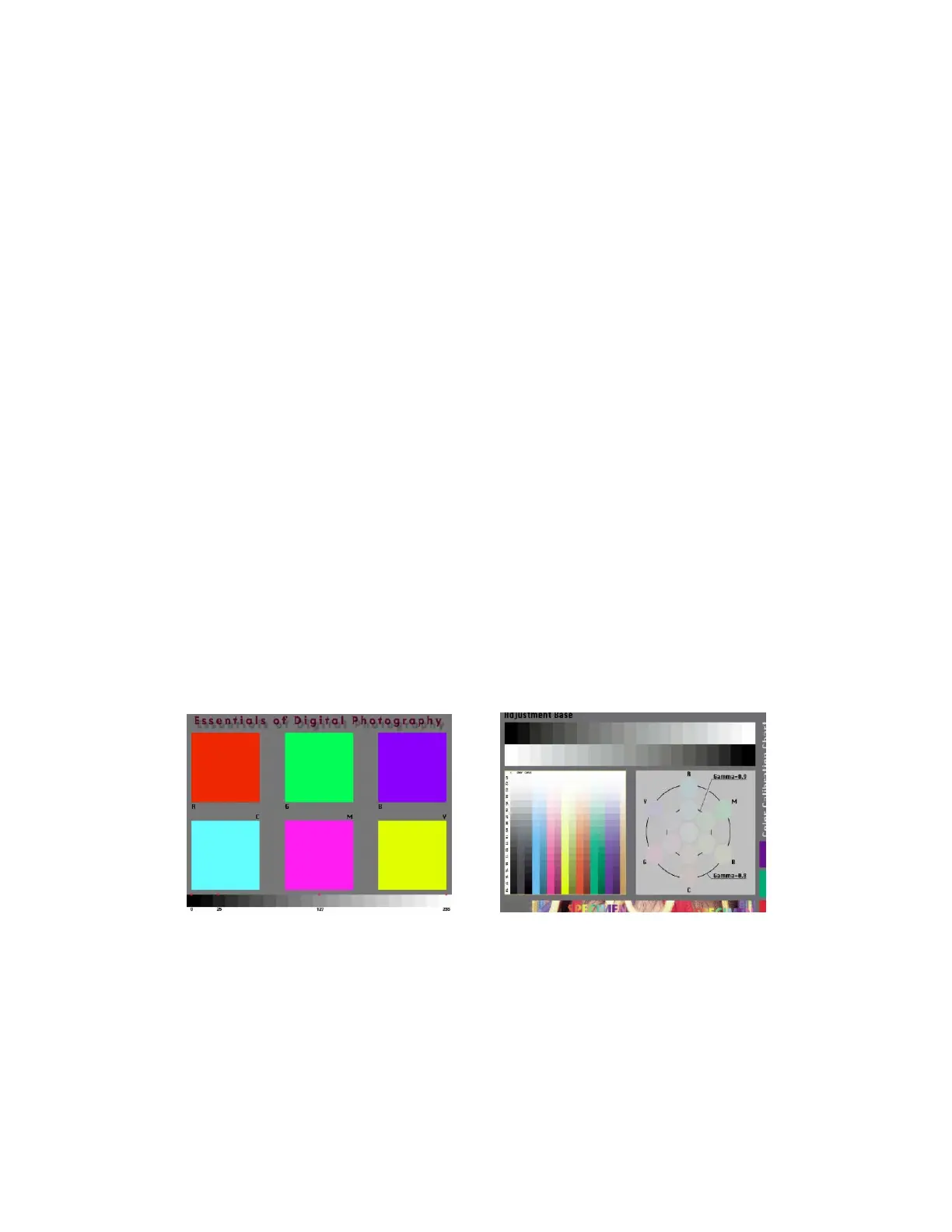

14. Test chart (for photography check)
That which carried out color printing of picture data "CHART1.JPG" and the "CHART2.JPG".
