Casio SE-S10 Service Manual

— 21 —

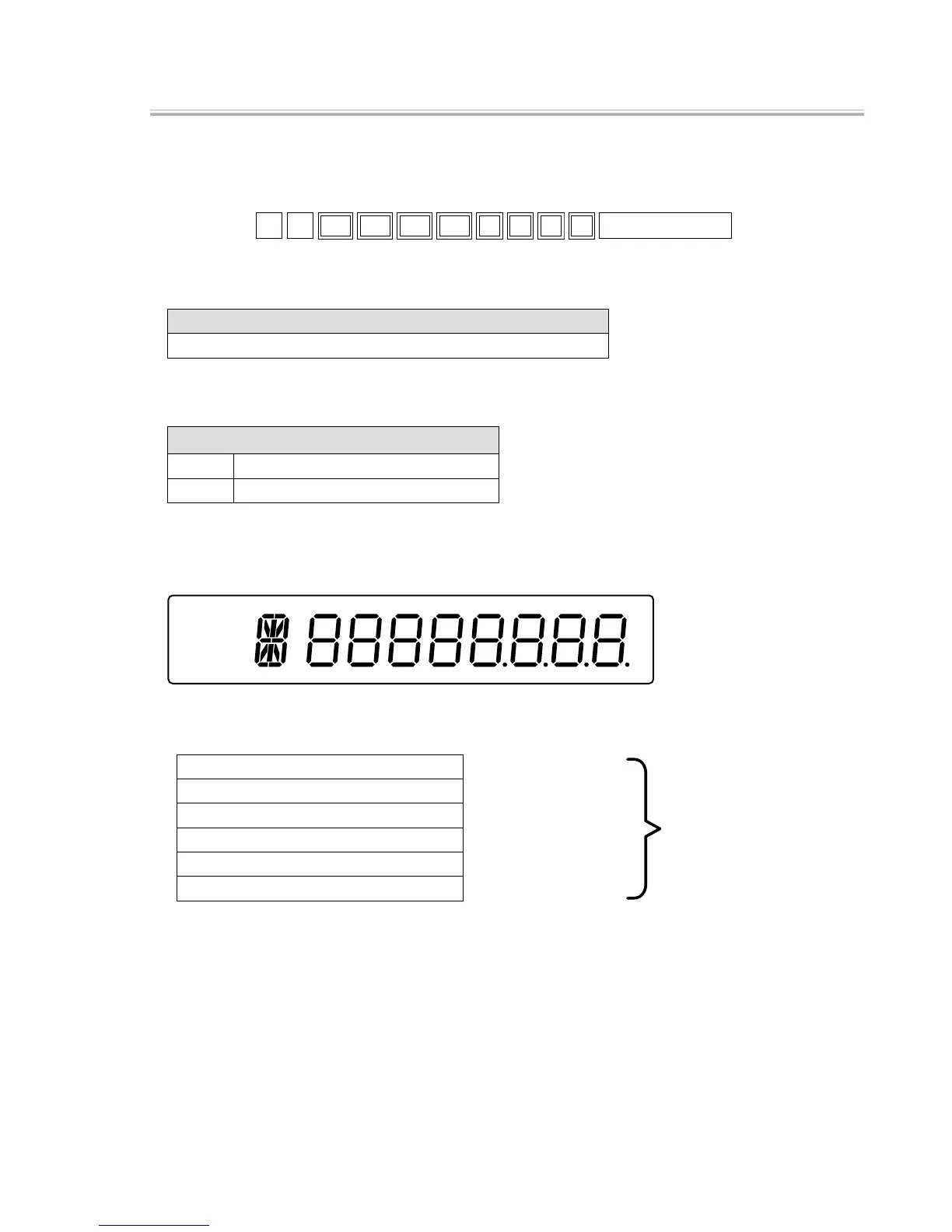

GRAPHIC PATTERN PRINT TEST[ 15 ]
[Function]
Tests if the internal printer prints graphics correctly.
[Operation]
Command:
P1 P1 P1 P2 P2 P2 n 1 3 0 SUBTOTAL
● Double-linedboxesshowthecommanddisplayedonthe7-Segment.
 Therst2commandswillbecanceled.
P1: Graphic pattern 1, P2:Graphic pattern 2
An 8-bit value converted to a decimal number
● “0”or“1”inthe8-bitvaluedeterminesifdotsareprintedinthegraphicpattern.“0”isfor“nodot
printing”, “1” is for “dot printing”.
n: Number of times to run
0 Once
1 ~ 9 Inniteloop
● Ifyouselect“Inniteloop”,printingrepeatsunlessitisforciblyterminated.
● Toforciblyterminatetheinniteloop,press[C(Clear)]orturntheModeSwitchto[OFF].
[Segment Display]
[PRINT]
Repeats a pattern for a 28-dot line alternately in the order below.
Graphic pattern 1 ←Dotline1
Graphic pattern 2 ←Dotline2
Graphic pattern 1 ←Dotline3
Graphic pattern 2 ←Dotline4
:
Graphic pattern 2 ←Dotline28
1line(28dots)

Casio SE-S10 Specifications

General

Types of payment	Cash
Number of clerks/departments	20
Number of Price Look-Up codes (PLUs)	500 PLUs
Supported paper width	57.5 mm
Backlight	Yes
Display digits	8 digits
Display number of lines	1 lines
Dimensions (WxDxH)	330 x 360 x 203 mm
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	120/230 V
Power consumption	100 mA

Weight and Dimensions

Weight	4100 g
