Appendix
This section explains how to establish a component video connection between the projector and a
video device.
 Component video output terminals come in 3-terminal sets: Y·Cb·Cr or Y·Pb·Pr. Be sure to match
the colors of the plugs on a component video cable with the colors of the terminals (Green: Y;
Blue: Cb/Pb; Red: Cr/Pr).
 Note that connection only to an analog component video output terminal is supported.
Connection to a digital output terminal is not supported.

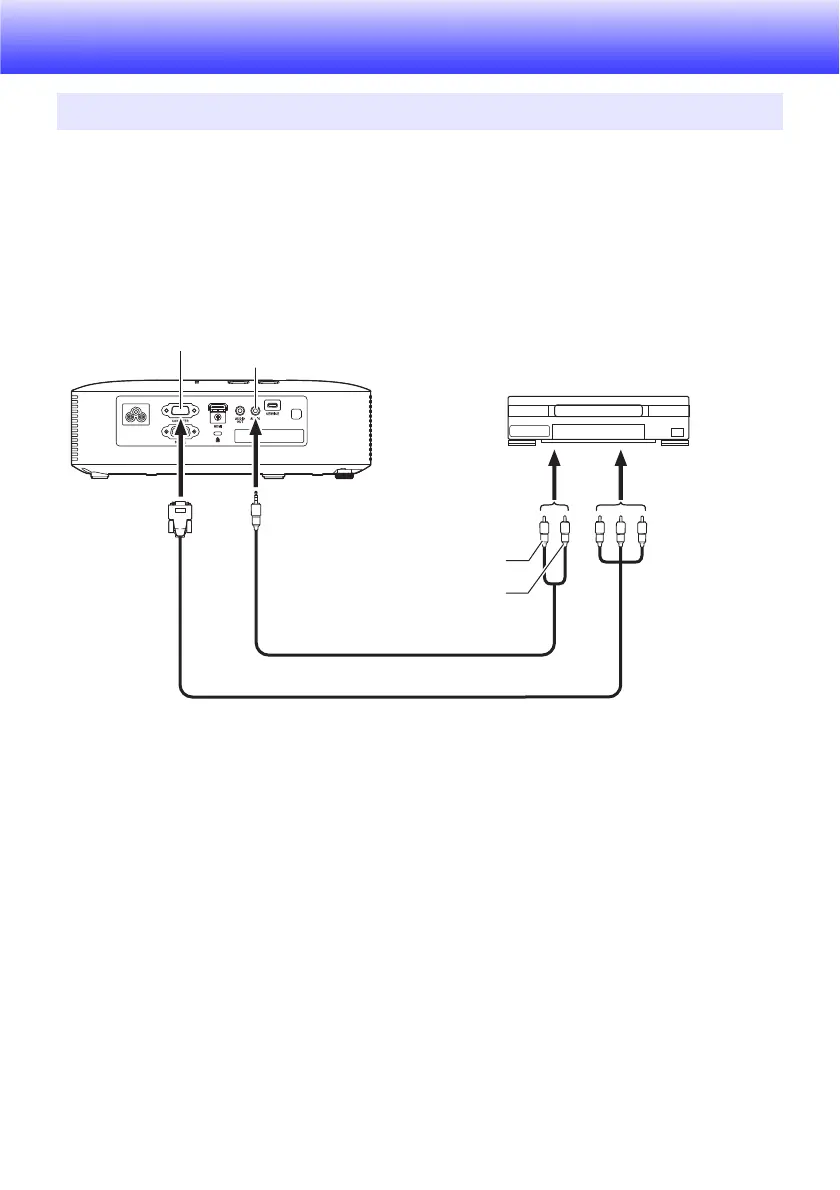

Connecting to a Component Video Output
Projector
AUDIO IN terminal
COMPUTER IN terminal
Stereo mini plug

Pin plug type audio cable
(commercially available)
Component video cable (commercially available)
To component video
output terminals
To audio output terminals
Video device
Red
White

Casio XJ-V2 Specifications

General

Number of colors	1.073 billion colors
Native aspect ratio	4:3
Projection distance	- m
Projection technology	DLP
Contrast ratio (typical)	20000:1
Screen size compatibility	30 - 300 \
Projector native resolution	XGA (1024x768)
Service life of light source	20000 h
Power source	AC
AC input frequency	- Hz
Power consumption (standby)	- W
Focus	Manual
Offset	72 %
Optical zoom	1.1 x
Focal length range	- mm
DVI port	No
Serial interface type	RS-232C
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) in	0
Noise level	37 dB
Preset modes	Presentation
Placement	Ceiling
Product type	Standard throw projector
Product color	White
Analog signal format system	-
Supported graphics resolutions	1024 x 768 (XGA), 1600 x 1200 (UXGA)
Operating temperature (T-T)	5 - 35 °C

Weight and Dimensions

Width	270 mm
Height	89 mm
Weight	2900 g
