Introduction
01-30
79033093 D Re
v
.

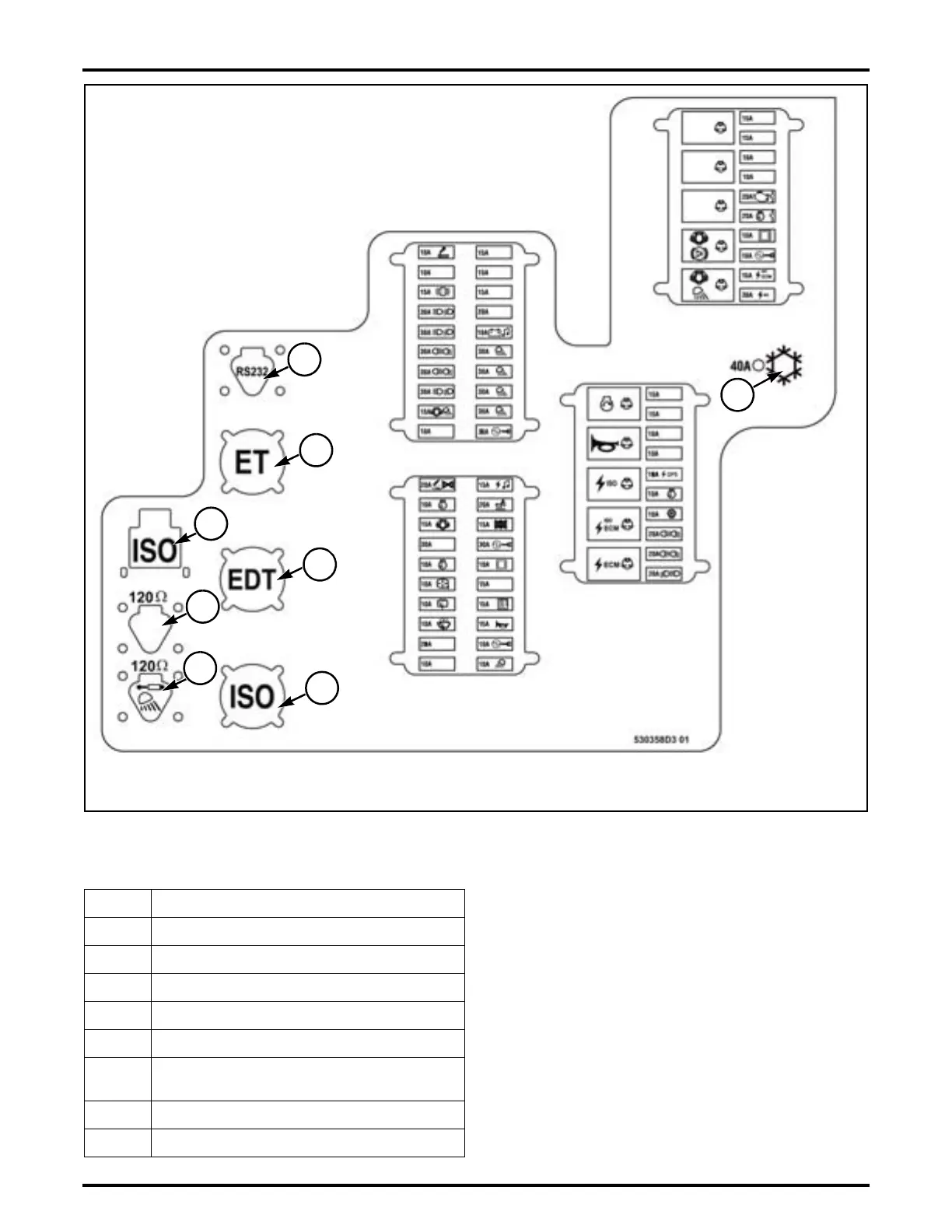

FIG. 41:
Fuse Panel Descriptions
FIG. 41
R06081100
1
3
2
1
4
5
6
7
8
Item
Descripti
on
1
ISO - TBC (T
er
minating Bias Circuit)
2
P
ower T
rain Resistor 120 OHM
3
Light/A
uxiliar
y Resistor 120 OHM
4
Guidance RS232
5
E
T - Electronic Ser
v
ice Connector
6
E
DT
- Electronic Diagnostic Ser
vice
Connector
7
ISO - Service Connector
8
40 Amp - A/C Fuse
Find manuals at http://best-manuals.com/
search?&s=CHAL-79033093
32
34
Table of Contents
Default Chapter
1
Table of Contents
1
Introduction
4
Service Manual
4
Divisions and Page Numbers
4
Units of Measurement
4
Replacement Parts
4
Important Safety Information
5
Safety Alert Symbol
6
Signal Words
6
Informational Messages
6
General Hazard Information
7
Protective Clothing
9
Mounting and Dismounting
9
Crushing/Cutting Prevention
9
Exhaust Dangers
10
Before Operation
10
Parking
10
Operation
11
Operator Station
11
Engine
12
Engine Starting
12
Seat Belts
12
Shield Removal
12
Fluid Precautions
13
Battery Disconnect
13
Rollover Protective Structure (ROPS)
13
Burn Hazards
14
Coolant Precautions
14
Escaping Fluid Dangers
14
Batteries
15
Lights, Reflector and Signs
16
Fire and Explosion Prevention
16
Fire Extinguisher
17
Auto-Guide Precautions
17
Asbestos Information
17
Electrical Storm Injury Prevention
17
Machine Identification
18
Product Identification Information
18
Torque Specifications
20
Constant Torque Hose Clamps
20
Fasteners Information
21
Metric Fasteners
21
Inch Fasteners
22
Tightening Straight Thread Fittings
23
Metric Information
24
Lubricant Viscosities and Refill Capacities
25
Lubricant Viscosities
25
Refill Capacities
25
Service Intervals
26
When Required
26
Maintenance Access
29
Engine Compartment
29
Location of Guards
29
Engine Screen Cover
30
Electrical System
32
Main Fuse Panel
32
Powertrain
33
Air System
35
Electrical Schematics
35
Virtual Terminal
35
Cab
38
Main Fuse
38
Circuit Breakers (ECM)
38
Special Tooling
38
Index
