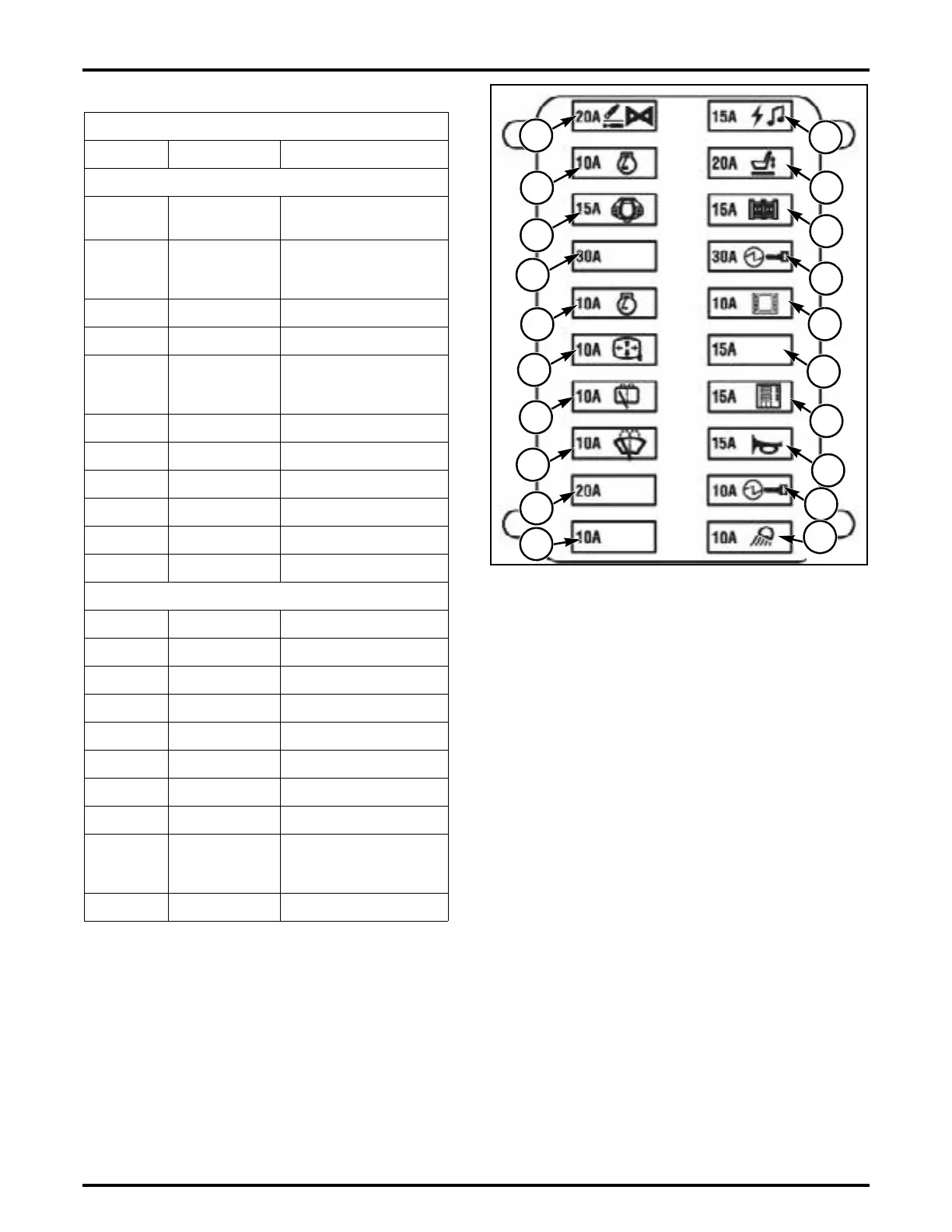

FIG. 43: Fuse Block 2
FIG. 43
P101411013
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Fuse Block 2
Item Rating Description
Switched Battery
1 20 Amp Implement Valve/Hitch
Valve
2 10 Amp Inch Sensor/Steer
Sensor/Rockshaft
Sensor
3 15 Amp Trailer Auxiliary
4 30 Amp Not used
5 10 Amp Decel Sensor/Air
Sensor/Belt Tension
Sensor
6 10 Amp Mirror Power/Heat
7 10 Amp Rear Wiper
8 10 Amp Front Wiper
9 20 Amp Not used
10 10 Amp Not used
Item Rating Description
Switched Battery
11 15 Amp Radio
12 20 Amp Seat
13 15 Amp Terminal Strip
14 30 Amp Power Ports Switched
15 10 Amp Virtual Terminal
16 15 Amp Not used
17 15 Amp Product Link
18 15 Amp Horn
19 10 Amp Cell phone port
power port
Undertrainer seat
20 10 Amp Light Switch
