Main Fuse

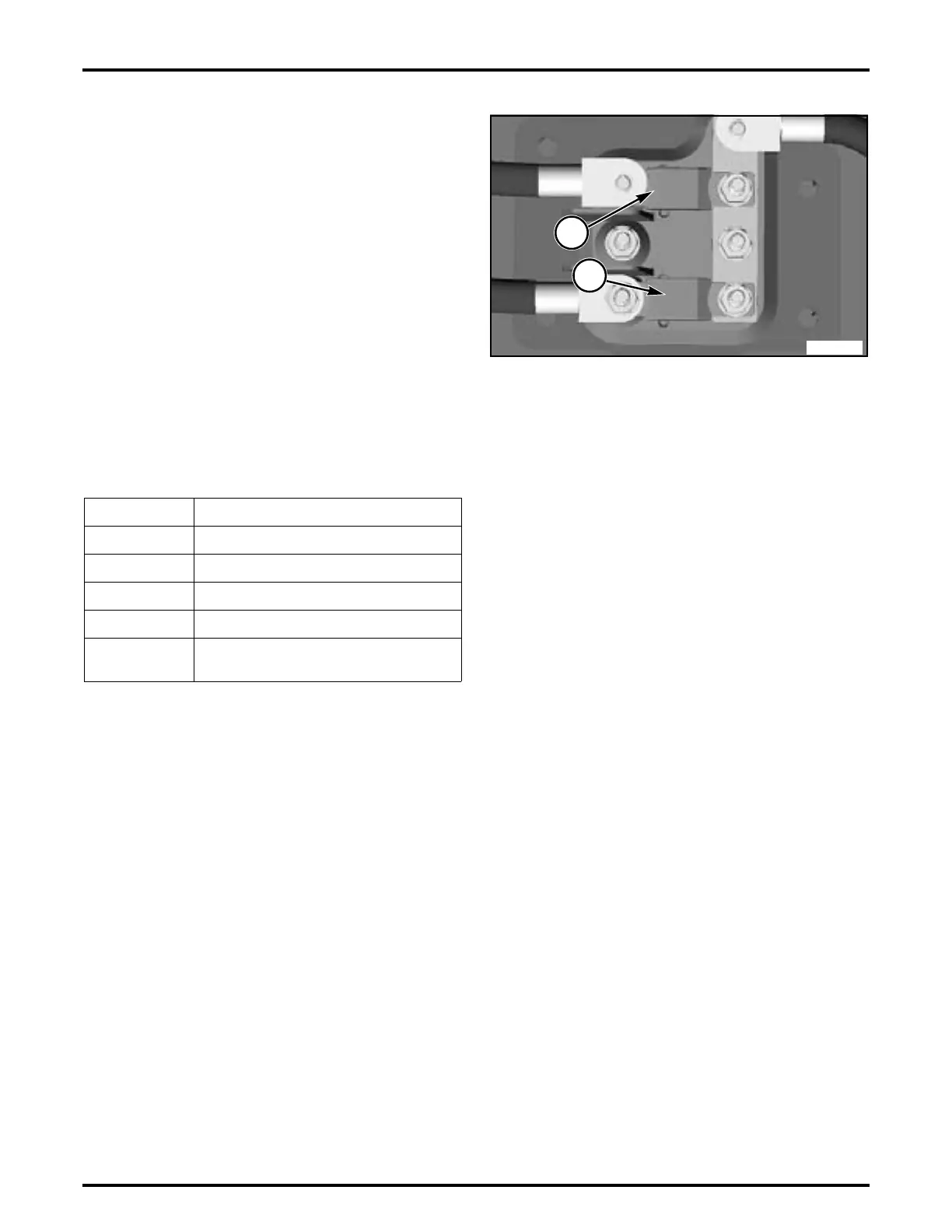

FIG. 48: Two main fuses are located on left side of
machine on inside of frame rail, as shown.
Fuse (1) is rated at 175 Amps and is main fuse for cab
power.
Fuse (2) is rated at 200 Amps and is main fuse for
alternator.
Circuit Breakers (ECM)
The circuit breakers for machine ECM are in the cab in
the fuse panel area.
Both circuit breakers are rated at 20 Amps.
SPECIAL TOOLING
Special tooling listed below may be required for removal,
installation, disassembly or assembly of components of
the machine.
These parts can be ordered from AGCO.
FIG. 48
Part Number Description
516186D1 Hose AS. - Tensioner Charge
548008D1 Adapter GP - Communications
516200D1 Communications Adapter II
516201D1 Cable - Data Link
547710D1 Tool - Seal Installation Field
Machinable
