Children operating or playing with a
garage door opener can injure themselves
or others.
The garage door could close
and cause serious injury or death.
Install the Door Control (or any additional push
buttons) out of the reach of children and away from
all moving parts of the door and door hardware,
but
where the garage door is visible.
Do not allow
children to operate the push button(s) or the remote
control transmitter(s).
A moving garage door could injure someone under it.
Activate the opener only when the door is properly
adjusted, you can see it clearly, and there are no
obstructions to door travel.

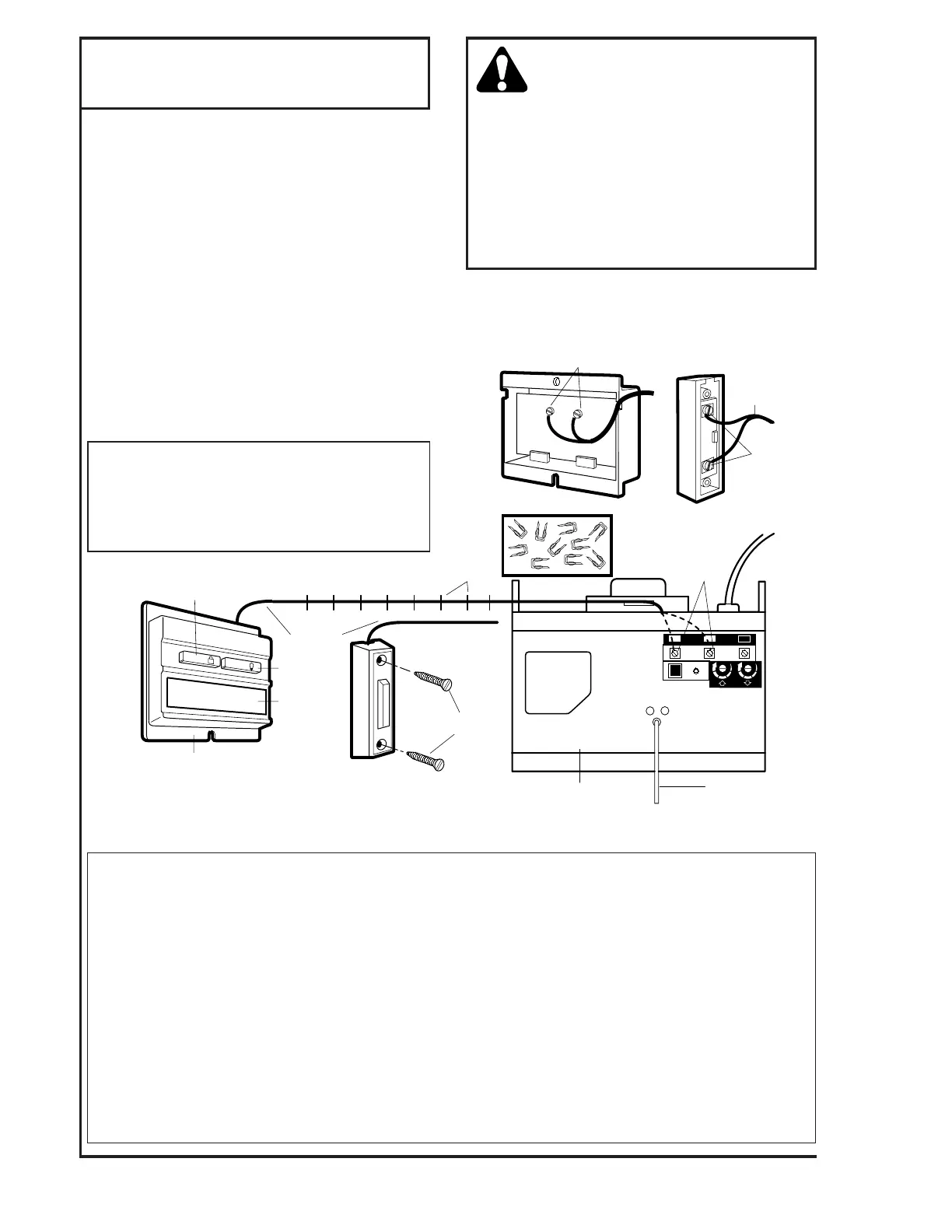

INSTALLATION STEP 7
Install the Door Control
• Remove about 6mm of insulation from both ends
of 2-strand bell wire. Connect one end to terminal
screws on back of Door Control: white to 2 and
white/red to 1.
• Fasten the Lighted DoorControl securely with
6ABx1-1/2" screws. The Multi-Function Door
Control uses 6ABx1-1/4" screws. If installing into
drywall, drill 4mm diameter holes for anchors.
• Run bell wire up the wall and across the ceiling to
the opener. Secure with insulated staples.
• Receiver terminals and antenna are located on
back panel of opener. Position antenna wire as
shown.
• Then connect the bell wire to the opener terminal
screws: white to 2 and the white/red to 1.
18
WIRING INSTRUCTIONS FOR ACCESSORIES
The Protector System™: To opener terminal
screws:White to 2 and Black to 3
Outside Keylock Accessory connections: To
opener terminal screws: Red to 1 and White to 2
Lighted Push Bar/Button: Press to open or close the
door. Press again to
reverse
the door during the
closing cycle or to
stop
the door while it's opening.
Light Feature: Press the Light button. If the opener
light is
off,
it will turn
on
. If the opener light is
on,
(even
in the 4-1/2 minute automatic cycle) it will turn
off.
But if you use the Light button to turn the lights
on
and
then activate the opener, the lights will turn
off
after
4-1/2 minutes.
The Light button will not activate the opener lights
when the door is in motion.
Lock Feature: The Lock feature is designed to
prevent operation of the door from remote controls.
However, the door will
open and close
from the door
control push bar and from the Keylock and the
Keyless Entry Accessories.
To Activate:
Press and hold the Lock button for 2
seconds. The push bar light will flash as long as the
Lock feature is
on.
To turn off:
Press and hold the Lock button again
for 2 seconds.The push bar light will stop flashing.
Normal operation will resume. The Lock feature will
also turn off whenever the "Smart" button on the
opener end panel is activated.
Operation of the Door Control
Model 1110E – Lighted Door Control Button; Model 1120E – Multi-Function Door Control Panel
