Chamberlain 1120E-1/2HP User Manual

Multi-Function
Door Control Panel
41A4202A
3 Volt Battery
10A20
Hanging Brackets
12B350
Straight Door
Arm Section
178B34
Curved Door Arm
Section 178B35
Door Bracket
12B374
Door Bracket Plate
12B380
Remote Contol
Transmitter Visor Clip
29B137
INSTALLATION PARTS
2 Strand Bell Wire
217A238
Manual Release Rope
& Handle Assembly
41A2828
NOTICE
Single-Function Remote Control
Transmitter Case, Cover & Screw
(circuit board not included)
41A3984-7
Header Bracket plus
Clevis and Fastener
41A4353
UP
CEILING MOUNT ONLY
LIGHT
LOCK
Model 1120E Only
Lighted Door
Control Button
41A4166
Model 1110E Only
Chain Pulley
Bracket
41A2780
RAIL ASSEMBLY PARTS
Trolley
41A3489
Chain
41A3611-1
T-rail
Center Section
1B3117
TO GARAGE DOOR
T-rail
End Section
(each)
183B110
Master Link Kit
4A1008
Safety Labels
and
Literature
Light Lens
108D34
Model 1120E (2)
Model 1110E (1)
Carton Inventory

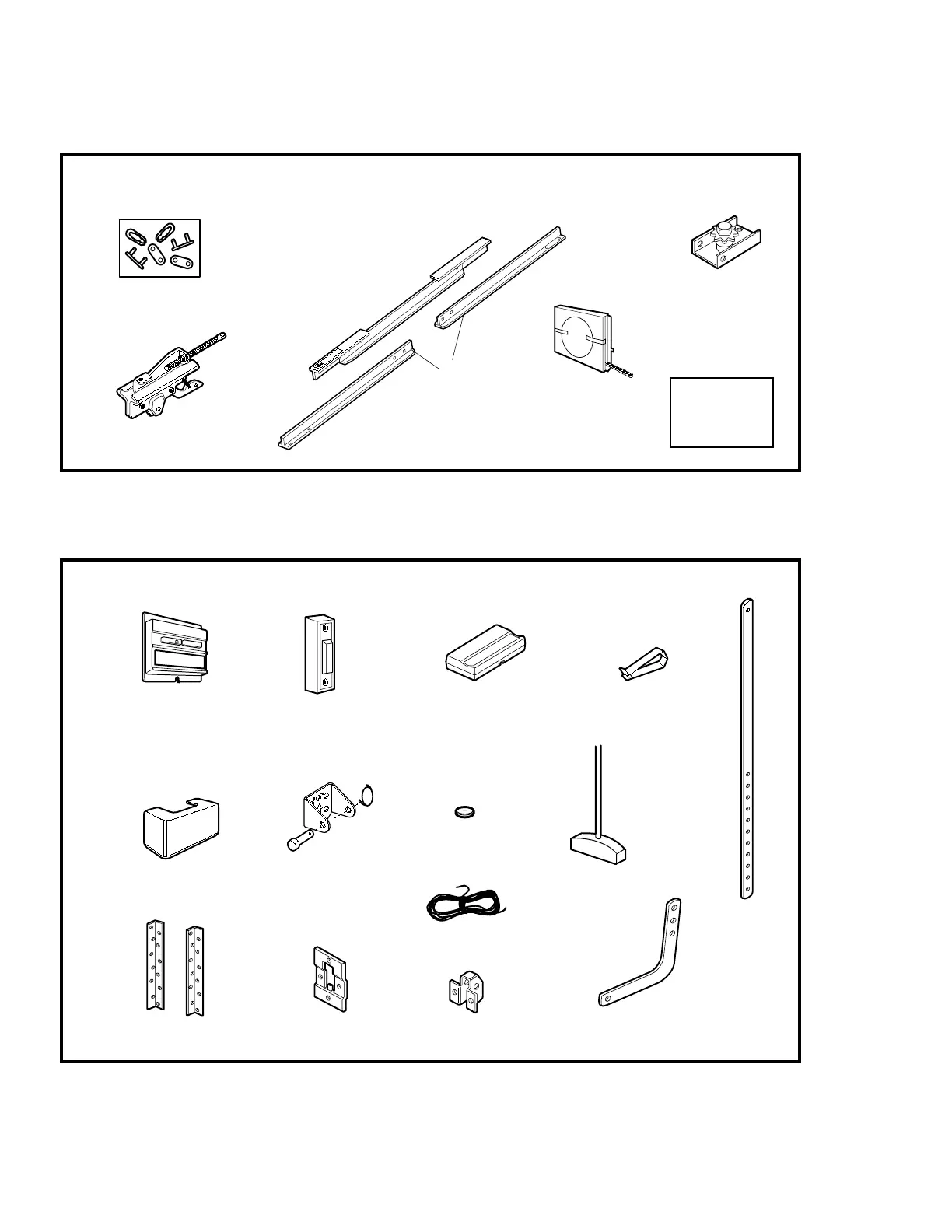

Your garage door opener is packaged with all parts illustrated below. If anything is missing, carefully check the
packing material. Parts may be “stuck” in the foam. Hardware for assembly and installation is shown on page 7.
6

Chamberlain 1120E-1/2HP Specifications

General

Brand	Chamberlain
Model	1120E-1/2HP
Category	Garage Door Opener
Language	English
