Chevrolet 2010 New Sail New Technical Training
- Learner's Manual
2.4 Engine Maintenance and Service
2.4.1 Timing Calibration
1.2L LMU

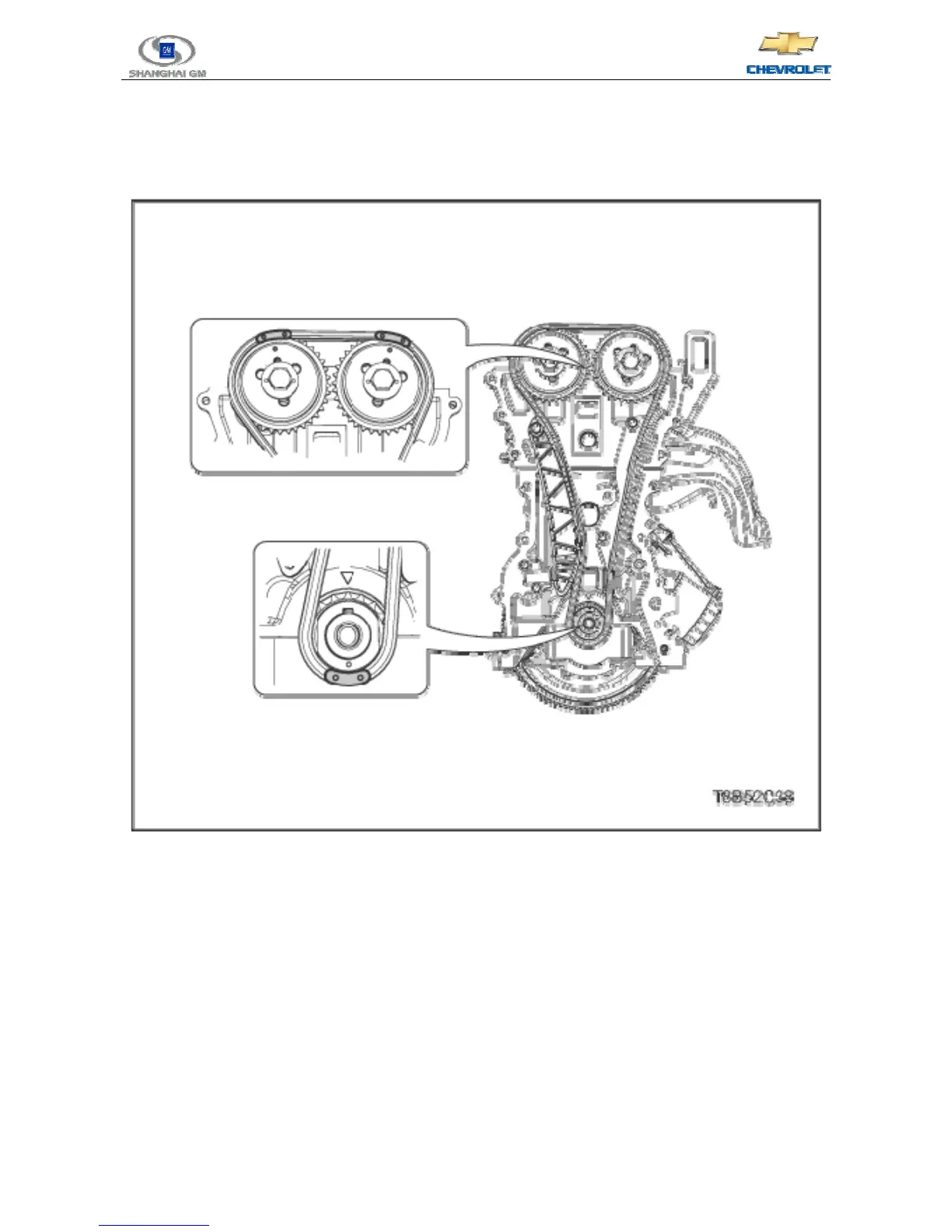

1. Align the mark on the camshaft sprocket with the mark on the timing chain, and then mount the timing
chain.
2. Align the mark on the crankshaft sprocket with the mark on the timing chain.
3. Push the timing chain tensioner rod, and fix it through mounting the tensioner pin （EN-49073）.
4. Assemble the timing chain guide plate.
Fastening: fasten the fixed bolts of the timing chain guide plate to 12 N.m （106 in.lbf）
5. Assemble the timing chain main guide plate.
To Next Page
