Chevrolet 2010 New Sail New Technical Training
- Learner's Manual
5 Braking System

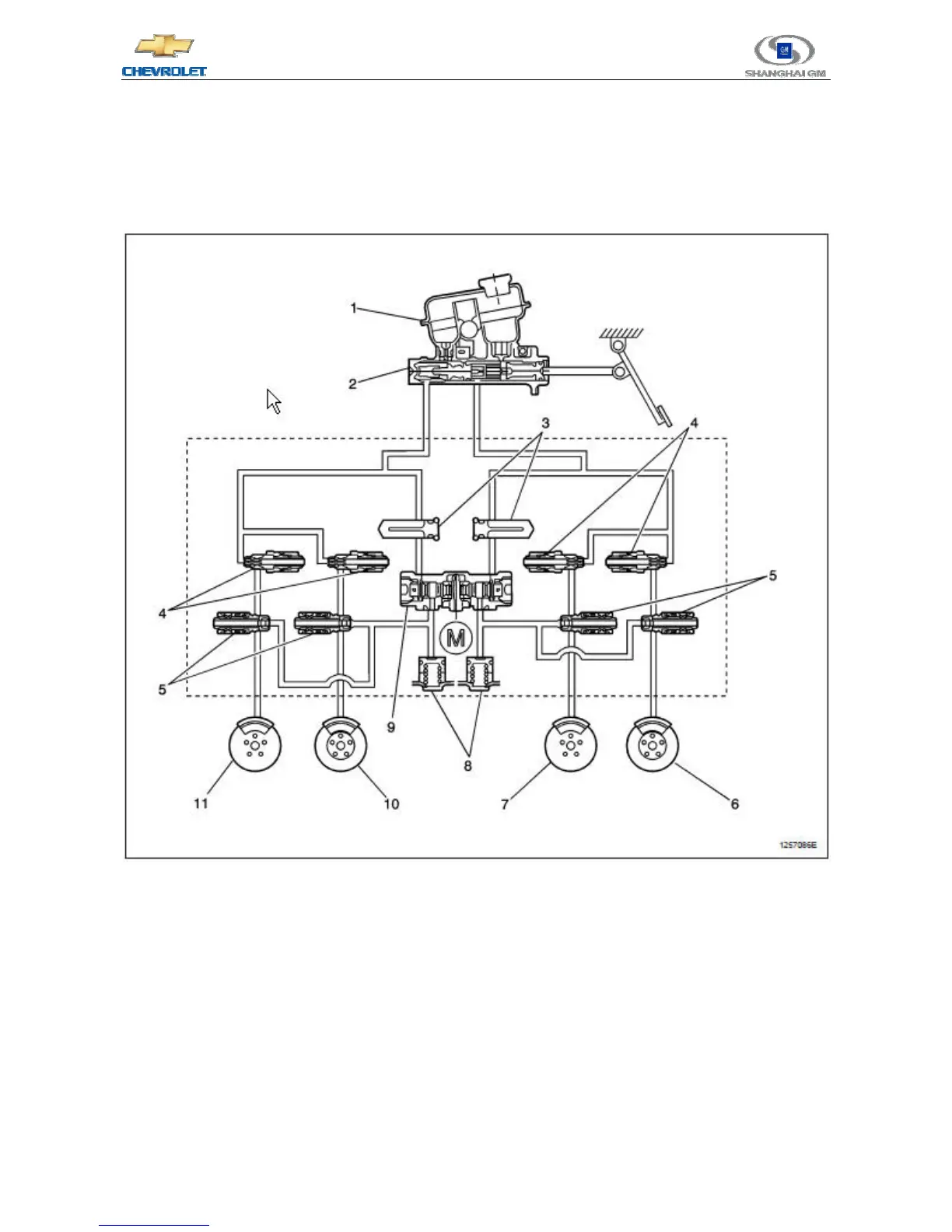

5.1 MGH-25 ABS Oil Circuit Diagram
1. Fluid Storage Tank
2. Master Cylinder
3. Damper
4. Intake Valve
5. Outlet Valve
6. Left Front
7. Right Rear
8. Pressure Pump
9. Energy Storage
10. Left Rear
11. Right Front
5.2 System Introduction
The MGH-25 anti-lock braking system（ABS）consists of a normal hydraulic braking system and anti-lock
components. The normal braking system consists of a vacuum booster, a Master Cylinder, front and rear disc
brakes, rear drum brakes, hydraulically interconnected brake oil pipe and hose, a brake fluid level sensor, and a
brake warning light. The anti-lock braking system consists of a hydraulic unit, an electronic brake control module
