Chevrolet 2010 New Sail New Technical Training
- Learner's Manual
4. Displacement Pump
5. Power Accumulator
6. Intake Valve
7. Right Rear Brake Caliper
8. Outlet Valve
9. Outlet Valve
10. Left Front Brake Caliper
11. Intake Valve
15. Outlet Valve
16. Outlet Valve
17. Left Rear Brake Caliper
18. Non-Return Valve
19. Intake Valve
20. Power Accumulator
21. Displacement Pump
22. Damper
23. Orifice

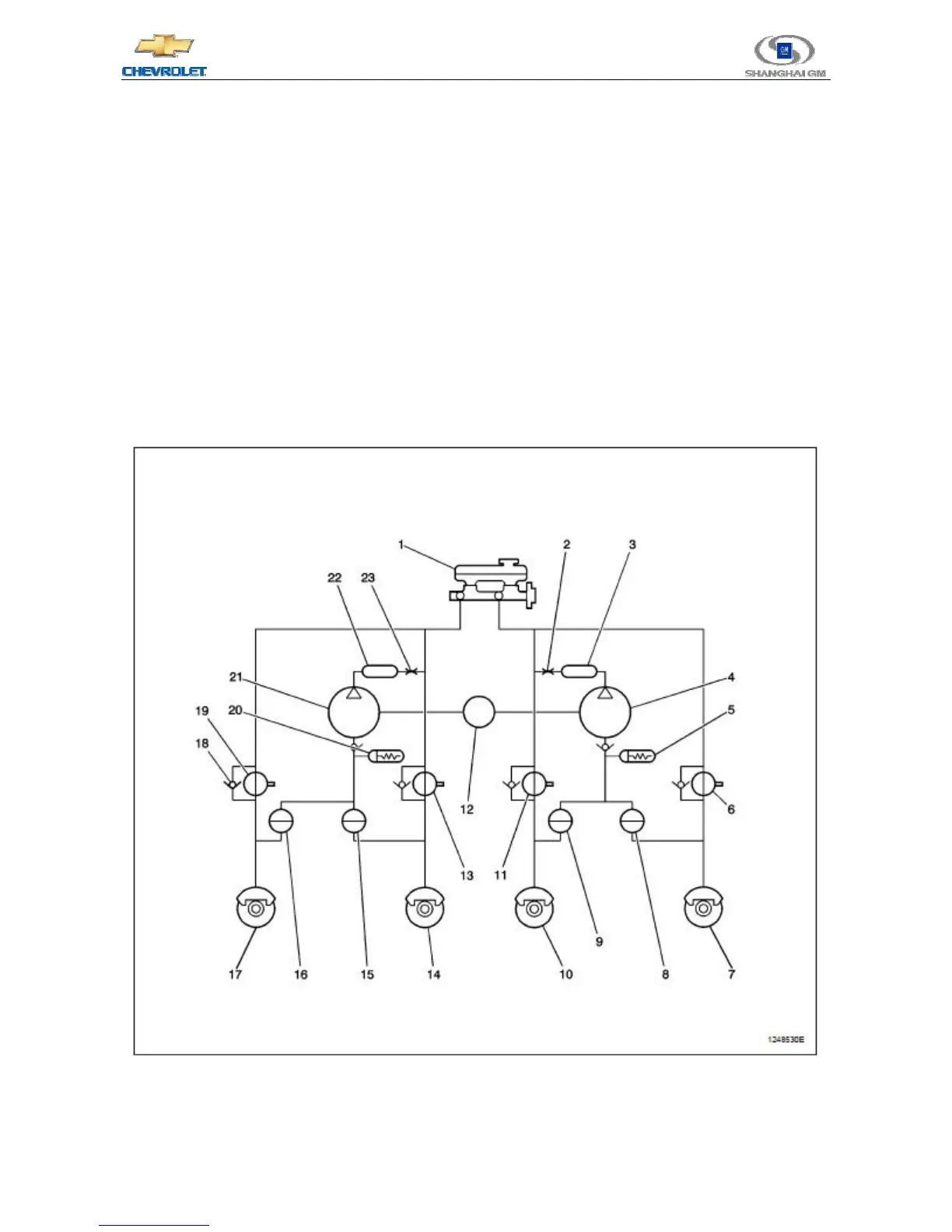

5.3.2 Anti-Lock Braking Mode - Connection
If, in pressure maintaining or pressure drop mode, the electronic brake control module detects that the wheel
slip rate has been reduced, then the electronic brake control module will increase the brake fluid pressure of the
corresponding wheel through applying the Master Cylinder pressure. At this point, the intake valve is open and the
outlet valve is closed so that the pressure of the normal brake Master Cylinder can be applied to the wheels.
1. Master Cylinder
2. Orifice
3. Damper
13. Intake Valve
14. Right Front Brake Caliper
15. Outlet Valve
