Chevrolet Tahoe/Suburban Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-15555985) - 2022 - CRC - 8/20/21
326 Vehicle Care
Taillamps, Turn Signal, Stoplamps,
and Back-Up Lamps

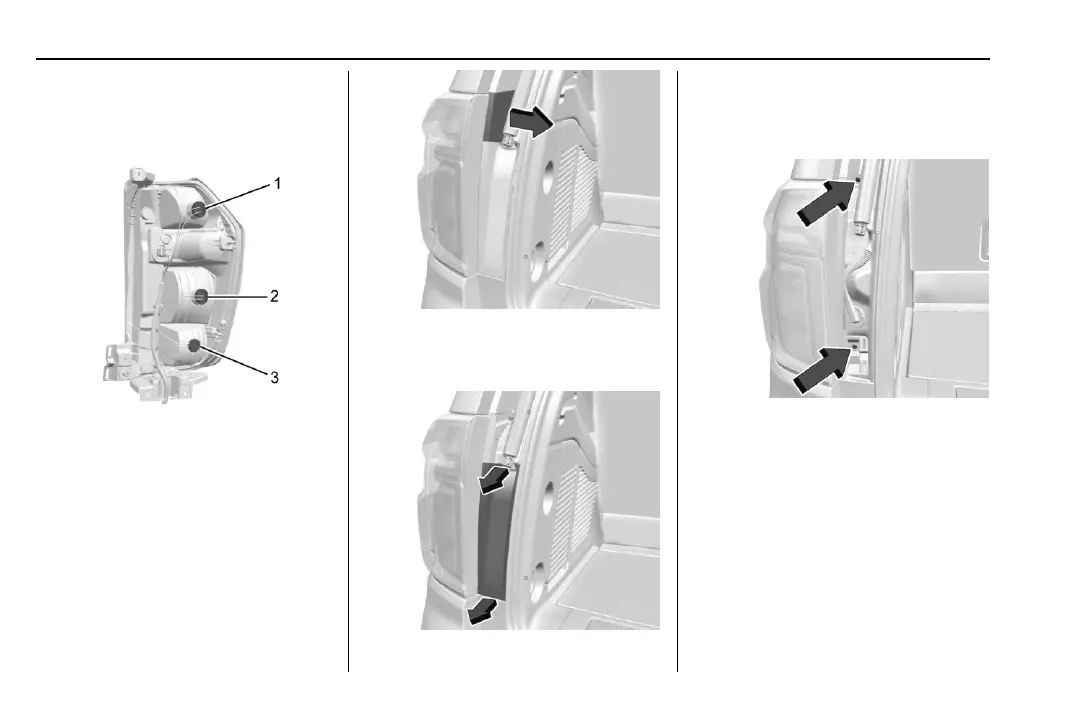

Base Level Taillamp Assembly
1. Stop Lamp
2. Turn Signal Lamp
3. Back-Up Lamp
It is recommended to replace the grommets
when replacing a bulb. See your dealer.
To replace one of these bulbs:
1. Open the liftgate.
2. Remove the middle trim piece by pulling
towards the center of the vehicle to
disengage the clips.
3. Remove the lower taillamp closeout
cover from the taillamp assembly by
pulling rearward from the top and
bottom to disengage the clips.
4. Remove the two rear lamp assembly
screws.
To Next Page
