Chevrolet Tahoe/Suburban Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-15555985) - 2022 - CRC - 8/20/21
Instruments and Controls 97

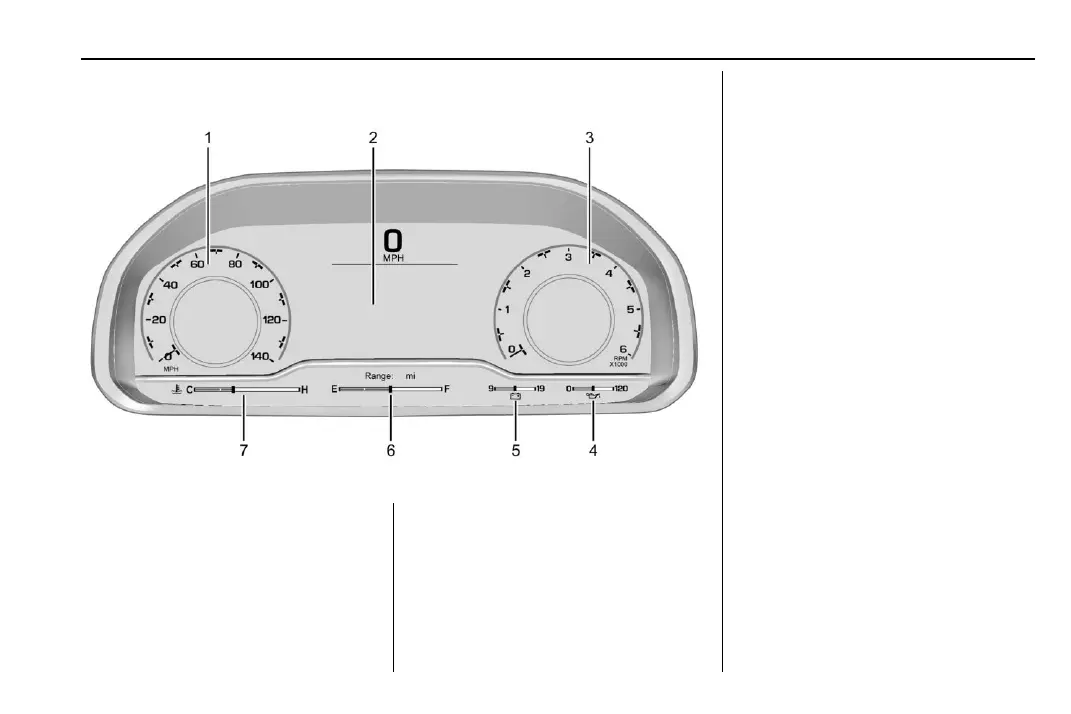

Instrument Cluster (Uplevel)
Classic Display English Cluster Shown, Others Similar
1. Speedometer 0 100
2. Driver Information Center (DIC)
(Uplevel) 0 118 or
Driver Information Center (DIC) (Base
Level) 0 116
3. Tachometer 0 100
4. Engine Oil Pressure Gauge 0 101
5. Voltmeter Gauge 0 103
Transmission Temperature Gauge
(Uplevel only) 0 103
6. Fuel Gauge 0 100
7. Engine Coolant Temperature Gauge
0 102
Reconfigurable Instrument Cluster
The instrument cluster layout can be
changed. There are four display
configurations to choose from: Classic,
Progressive, Digital, and Clean. The Classic,
Progressive, and Digital, layouts may also be
configured with one, two, or four gauges.
See “Lower Gauges” under “Options.” The
Clean layout will only display the fuel
gauge. Use the steering wheel control to
move between the different display zones
and scroll through the different displays. See
“Display Layout” under “Options.”
.
Classic configuration displays a larger
speedometer and tachometer on the far
left and right sides of the display. There
are info display areas inside of the
speedometer and tachometer. The DIC
area is located in the center of the
display.
.
Progressive configuration displays a
smaller speedometer and tachometer on
the far left and right sides of the display.
There are info display areas inside of the
speedometer and tachometer. The DIC
area is larger and located in the center of
the display.
