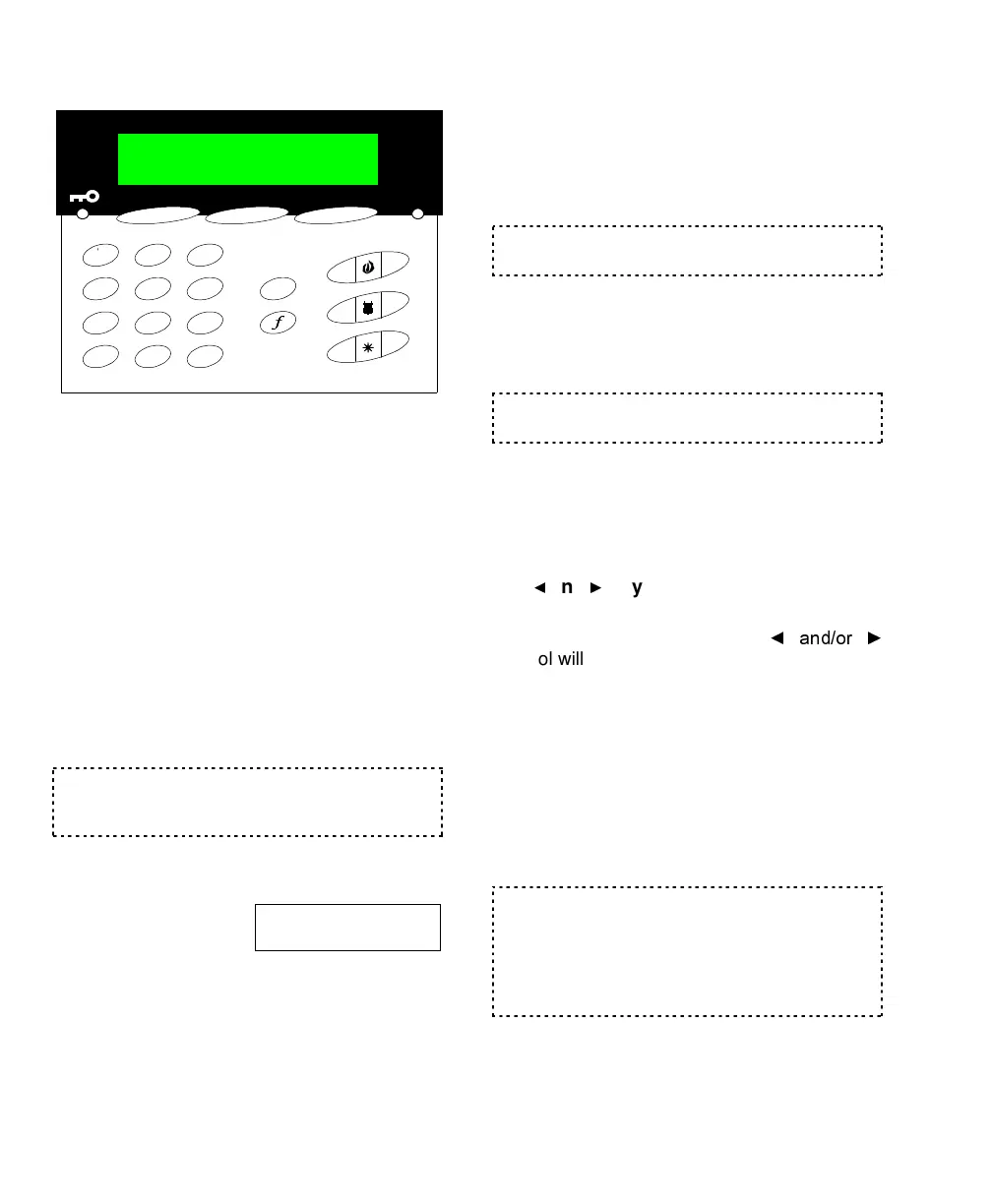

The MONITOR AFx LCD keypad provides an
integrated 2-line display and multi-function
backlit keypad. (The keypad is hidden behind
a hinged access cover.)
What You can do with the
LCD Keypad
MONITOR AFx™ LCD keypads provide a
convenient local interface that allows:
•
Arming and disarming the system;
•
Checking status of items;
•
Controlling / commanding items;
•
Performing administrative tasks;
•
Performing the initial system set-up.
Note:
Initial set up is performed by an authorized
technician as described in the "MONITOR AFx
Commissioning Reference Guide".
Keypad Display and Buttons
The display is your
'window' into the
MONITOR AFx
system.
When you enter your user ID and/or PIN, you
will be given access to all menus and features
as assigned through your user authorities.
Buttons under the Display
The buttons directly under the display allow
selecting associated items on the display (i.e.,
the item indicated above each button).
Like the rest of the keypad, these buttons are backlit
for use in poor lighting conditions.
The Numeric Keypad
The main keypad (in the bottom-left portion of
the unit) provides a convenient way to enter
numbers, and letters as well (when applicable).
This keypad is fully backlit for use in poor lighting
conditions.
The
Key
This is the "escape" key, which allows you to
return to a previous screen, or exit from a
menu altogether (i.e., log out).
The
and
Keys
These keys allow selecting different items and
topics. When available, the
symbol will appear on-screen.
Emergency Keys and Programmed
Function Keys
Pressing a number and the
ƒ
key at the same
time will perform the action as programmed for
that key-sequence. The emergency keys on
the right-hand side of the keypad each transmit
a specific emergency message ( to the central
monitoring station).
For more information on the emergency keys, refer
to "Using the Emergency Keys" in the "Alarms…"
chapter.
For details on the programmable function keys, refer
to "Using the Function Keys" in the "Status &
Control" chapter.
The MONITOR AFx™ LCD Keypad
Welcome
Enter ID: _
_
_
