You can front mount the device by attaching the brackets at the front of the chassis with the front panel facing
forward
Attach Bracket to the Chassis
Attach the mounting bracket to each side of the device as shown in the figure below. You will need four
screws to attach each bracket to the device; so, you will need eight screws in total to attach both the brackets
to the device. Use the screws provided along with the mounting kit to attach the screws to the device.

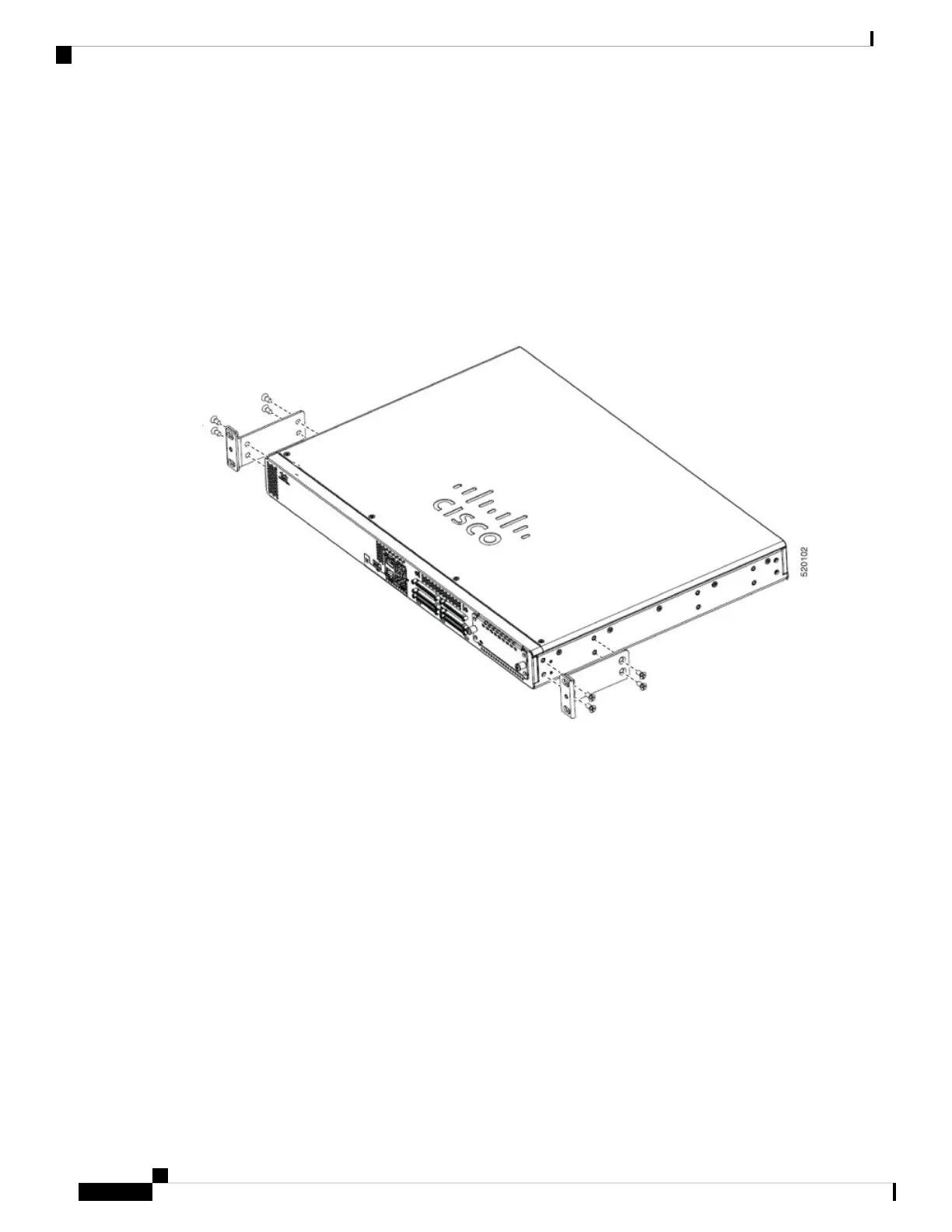

Figure 13: C1100TG-1N32A – 19” Bracket installation for rack mounting
Hardware Installation Guide for the Cisco 1100 Terminal Gateway
20
Install and Connect the Router
Attach Bracket to the Chassis
To Next Page
