Cisco 2500 Series Wireless Controller Getting Started Guide
About This Guide
Note For Cisco 2504 WLC, mobility configuration that is part of the WLAN configuration is not uploaded to
the config file.

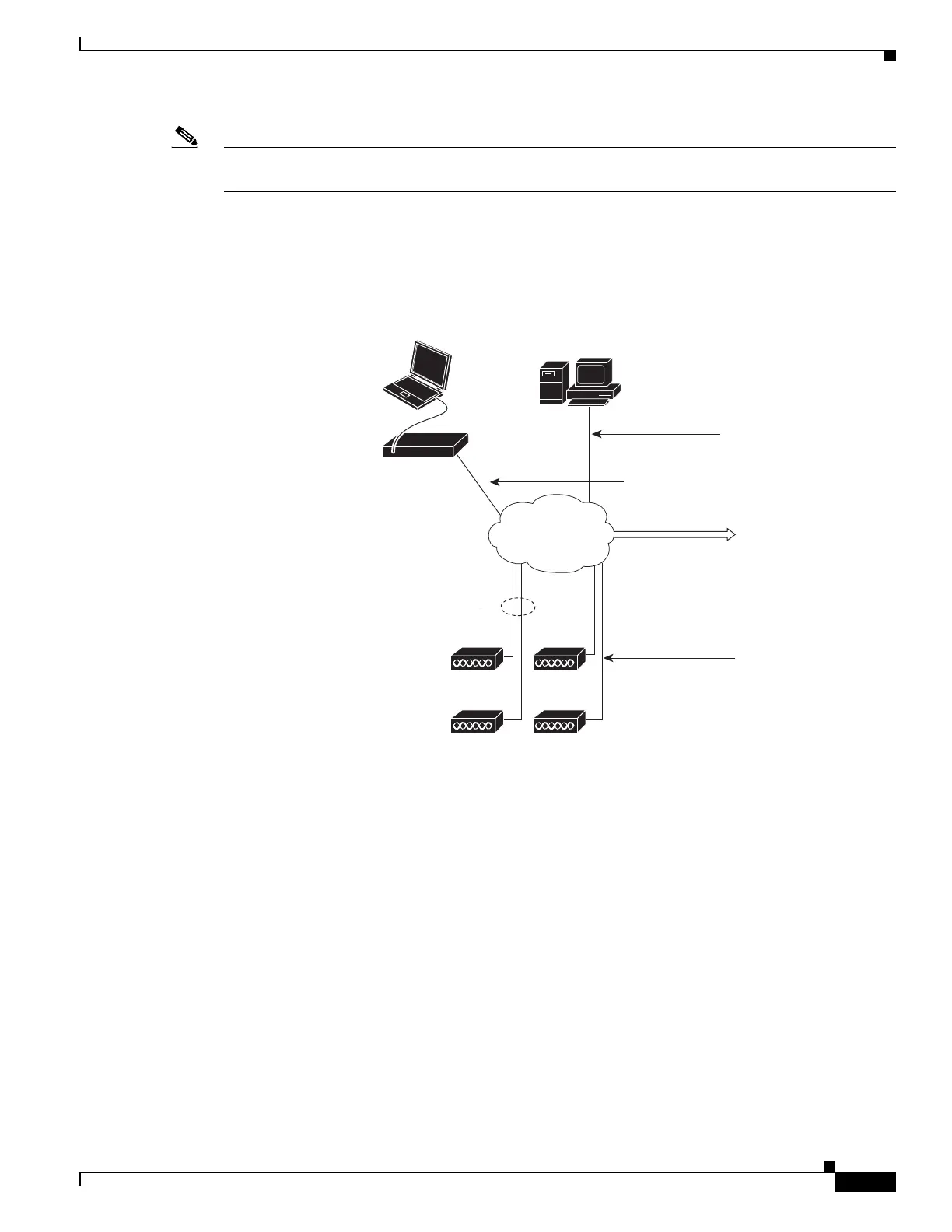

Figure 1 shows a 2504 controller network topology and network connections, showing the medium
dependent interface (MDI) Ethernet cables required. The controller has an auto MDI feature, so you can
use straight-through or crossover cables.
Figure 1 Typical Controller Topology and Network Connections
282297
10/100/1000BASE-T
MDI cables
10/100/1000BASE-T
MDI cable
Network
Distribution
system
connection
Access
point
connections
WAN or LAN
connection to
main office
Cisco Access Points
Null modem serial
cable (DB-9 -> RJ-45)
to console connection
LAN link for
management software
connections
Console emulator
for initial boot-up
Cisco WCS software,
web user interface

Cisco 2504 Specifications

General

Number of users	25 user(s)
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Quality of Service (QoS) support	Yes
Internal	No
LED indicators	Link, Power, Status
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	5
Security algorithms	3DES, DES, MD5, SSL/TLS, WPA, WPA2
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	0 - 95 %
Operating relative humidity (H-H)	10 - 95 %
Safety	UL 60950-1, EN 60950:2005, FCC 15.107, FCC 15.109, ICES-003, VCCI, EN 55022, EN 55024
Power supply type	AC
AC input frequency	50 - 60 Hz
Power requirements	100 - 240 V

Weight and Dimensions

Weight	1590 g
Dimensions (WxDxH)	271.5 x 203.2 x 43.9 mm
