Cisco 800 Series Hardware Installation Guide

3-15
Cisco Integrated Services Router Hardware Installation Guide
Chapter 3 Connecting the Router
Cisco 860, 880, 890 Series
Connecting the V.92 modem Port
Warning Hazardous network voltages are present in WAN ports regardless of whether power to the unit is OFF
or ON. To avoid electric shock, use caution when working near WAN ports. When detaching cables,
detach the end away from the unit first. Statement 1026
To connect the router to your service provide network through the V.92 port, follow these steps:
Step 1 Connect one end of the straight-through R-J11 cable to the V.92 port.

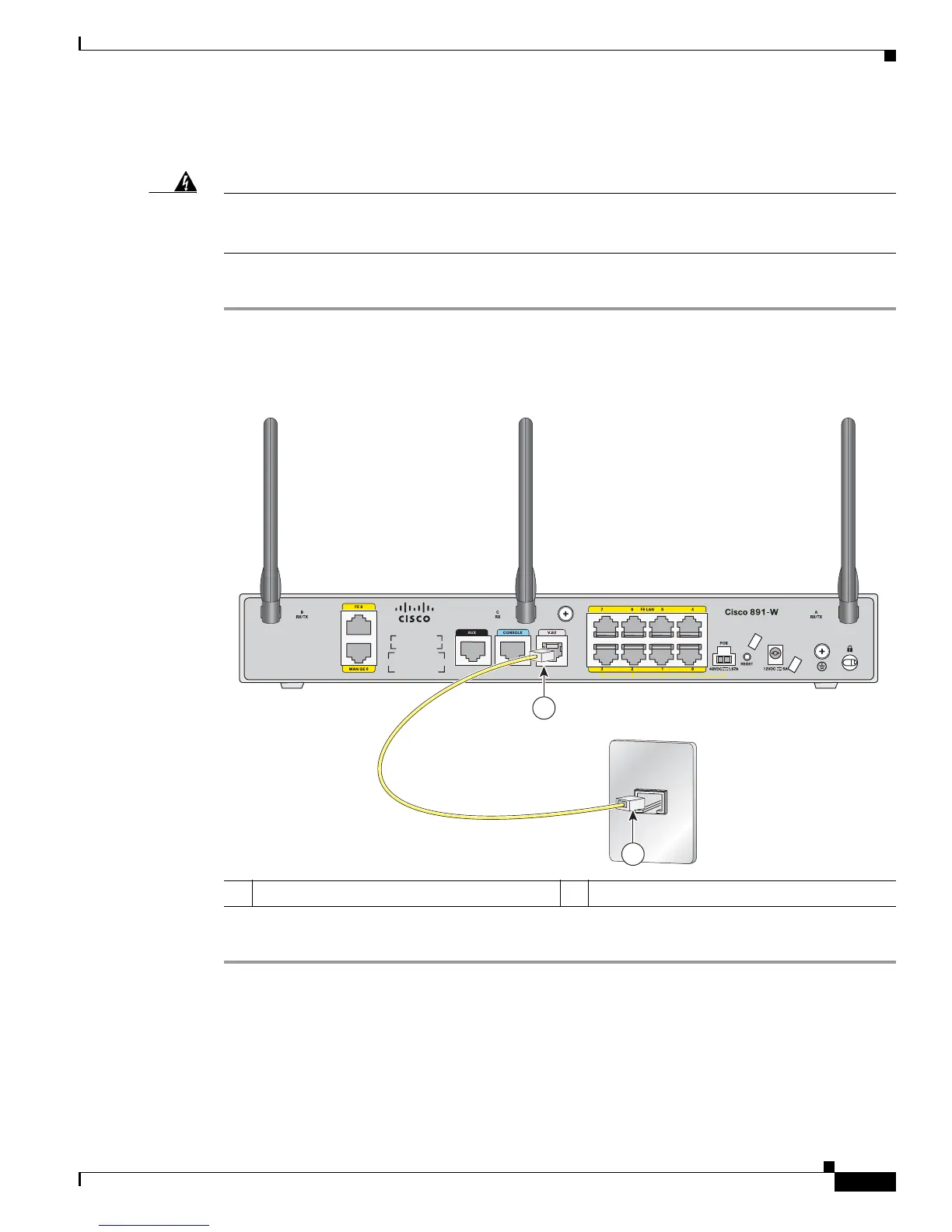

Figure 3-10 shows how to connect the router to the service provide through the V.92 port.
Figure 3-10 Connecting to Your Service Provider Through the V.92 port
Step 2
Connect the other end of the straight through R-J11 cable to an RJ-11 telephone wall outlet.
1 V.92 port on the router 2 Telephone wall outlet
272387
1
2
