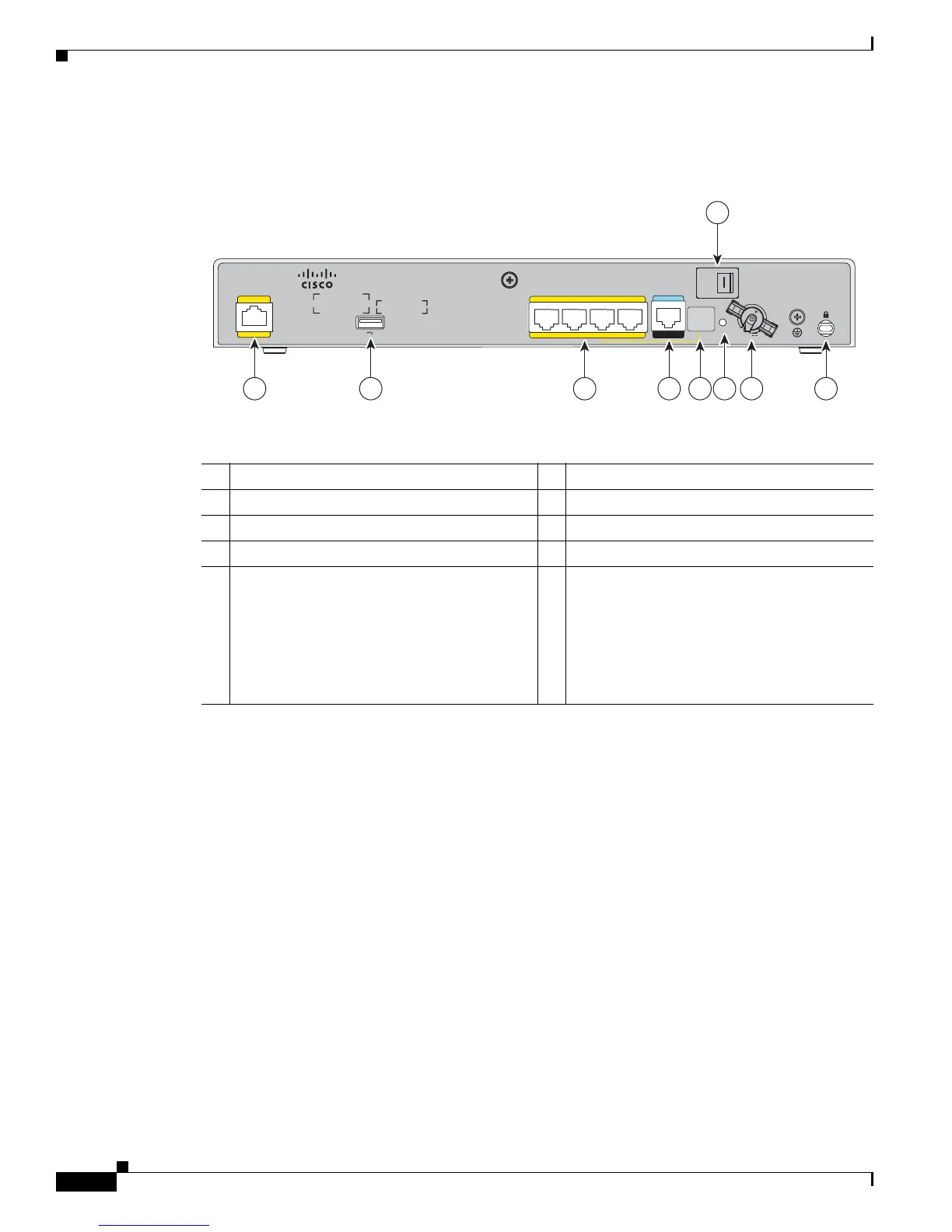

Figure 1-31 shows the back panel details of the C881WD-A-K9 and C881WD-E-K9 ISRs.
Figure 1-31 Back Panel of the C881WD-A-K9 and C881WD-E-K9 ISRs
C881G-B/S/V-K9 ISRs
The C881G-B-K9, C881G-S-K9, and C881G-V-K9 ISRs are members of the Cisco 880 series data
routers. These routers provide integrated Virtual Private Network (VPN), 802.11b/g/n-compliant
wireless Access Point (AP), 3G, and backup capabilities.
For information on configuring Cisco 880 Series ISRs, see Cisco 880 Series Integrated Services Router
Software Configuration Guide.
C881GW-S/V-A-K9 ISRs
The C881GW-S-A-K9 and C881GW-V-A-K9 ISRs are members of the Cisco 880G series data routers.
These routers provide integrated VPN, embedded Wi-Fi CERTIFIED™, 802.11b/g/n-compliant wireless
AP, 3G, and backup capabilities.
For information on configuring Cisco 880 Series ISRs, see Cisco 880 Series Integrated Services Router
Software Configuration Guide.
284987
Cisco 881WD
AUX
CONSOLE
FE LAN
POE OPTION
REQUIRES 5A
POWER
ADAPTOR
3 210
RESET
12VDC 5A
0
O
FE WAN
4
9
21 3 4 5 6 7 8
1 Primary WAN port—10/100 FE 6 Reset button
2 USB port 7 Power connector
3 4-port 10/100 Ethernet switch 8 Kensington security slot
4 Serial port—console or auxiliary 9 Power switch
5
Note No separate PoE power supply is
required for routers with embedded
WLAN antennas. For information on
system power supply requirements
when PoE is enabled, see the “Power
over Ethernet Module” section on
page 1-126.
