Cisco ASR-920-24SZ-IM User Manual

Alarm port11Power Supply 1 LED (AC or
DC)
4
USB Console port12Console port (TIA/EIA-232F)5
Board power LED13Management port6
System Status LED14Auxiliary Console port7

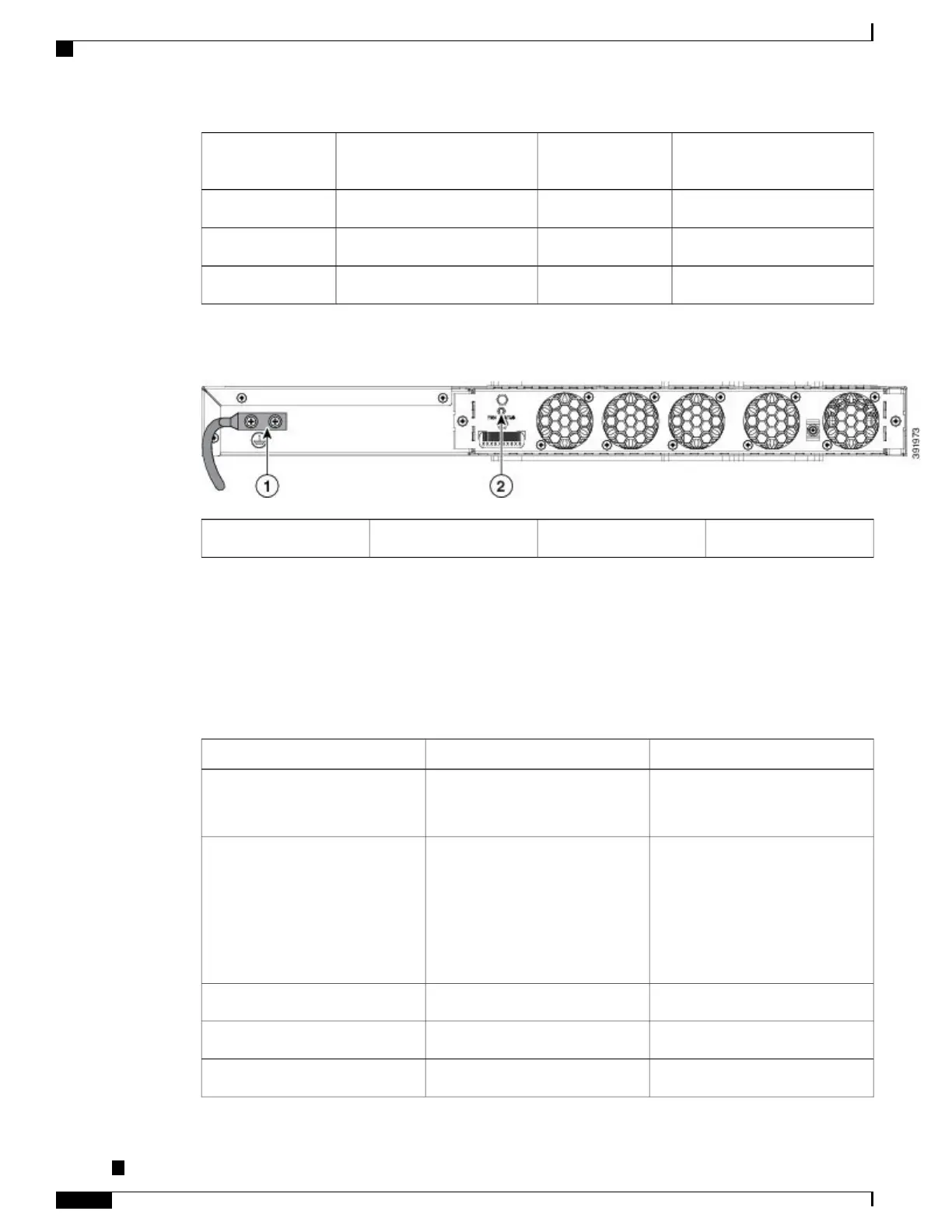

Figure 9: Back Panel of Cisco ASR-920-24SZ-M, ASR-920-24TZ-M Router
Fan status LED2Grounding lugs1
Specifications
The table below describes the other features of Cisco ASR-920-24SZ-IM Router (AC and DC) and Cisco
ASR-920-24SZ-M, ASR-920-24TZ-M Router (AC and DC) Routers.
Table 3: Cisco ASR 920-24SZ-IM, ASR-920-24SZ-M, ASR-920-24TZ-M Router Specifications
ASR-920-24SZ-M, ASR-920-24TZ-MASR-920-24SZ-IMSpecification
17.5 x 9.43 x 1.72 inches
Dimensions exclude the
PSU and IM handle.
Note
17.5 x 9.43 x 2.6 inches
Dimensions exclude the
PSU and IM handle.
Note
DimensionWidth x Depth x Height
ASR-920-24SZ-M: 5.53 kg
ASR-920-24TZ-M: 4.90 kg
(inclusive of rack brackets,
twenty-four SFP (only for
ASR-920-24SZ-M) and four SFP+
optics and two AC PSUs)
7.08 kg
(inclusive of rack brackets,
twenty-four SFP and four SFP+
optics, two AC PSUs and an IM
card)
Weight
One RUOne and a half RURack Unit
Front to backFront to back and side to backAirflow
Front cable accessFront cable accessCable access
Cisco ASR-920-24SZ-IM, ASR-920-24SZ-M, ASR-920-24TZ-M Aggregation Services Router Hardware Installation
Guide
12
Overview
Specifications

Cisco ASR-920-24SZ-IM Specifications

General

Brand	Cisco
Model	ASR-920-24SZ-IM
Category	Network Router
Language	English
