Stack Bandwidth and Partitioning Examples

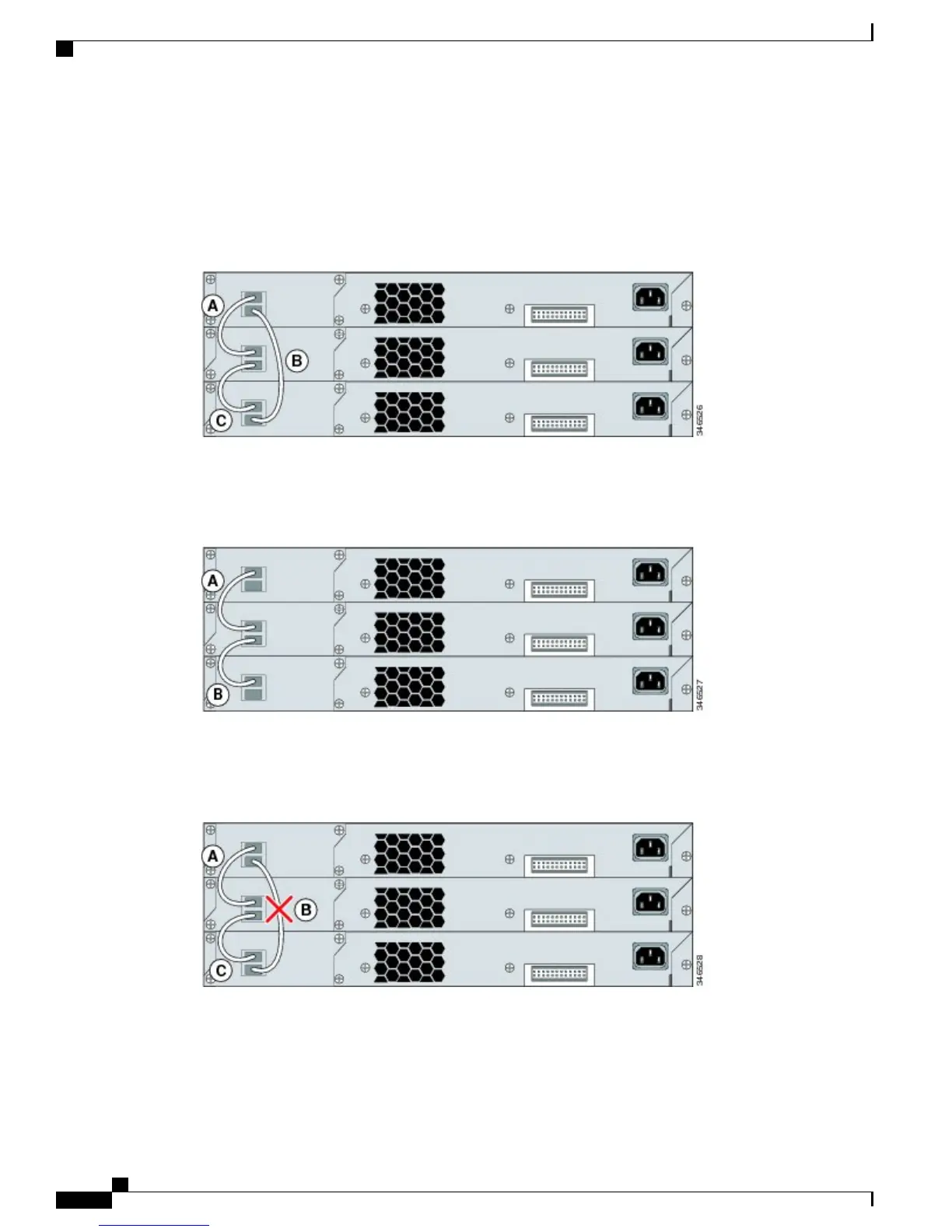

This figure shows a stack that provides full bandwidth with redundant connections.
Figure 12: Stack with Full Bandwidth Connections
This figure shows a stack with incomplete stack cabling connections. This stack provides only half bandwidth
and does not have redundant connections.
Figure 13: Stack with Half Bandwidth Connections
This figure shows a stack with a bad FlexStack cable in link B. This stack provides only half bandwidth and
does not have redundant connections.
Figure 14: Stack with a Failover Condition
