Cable Pinouts

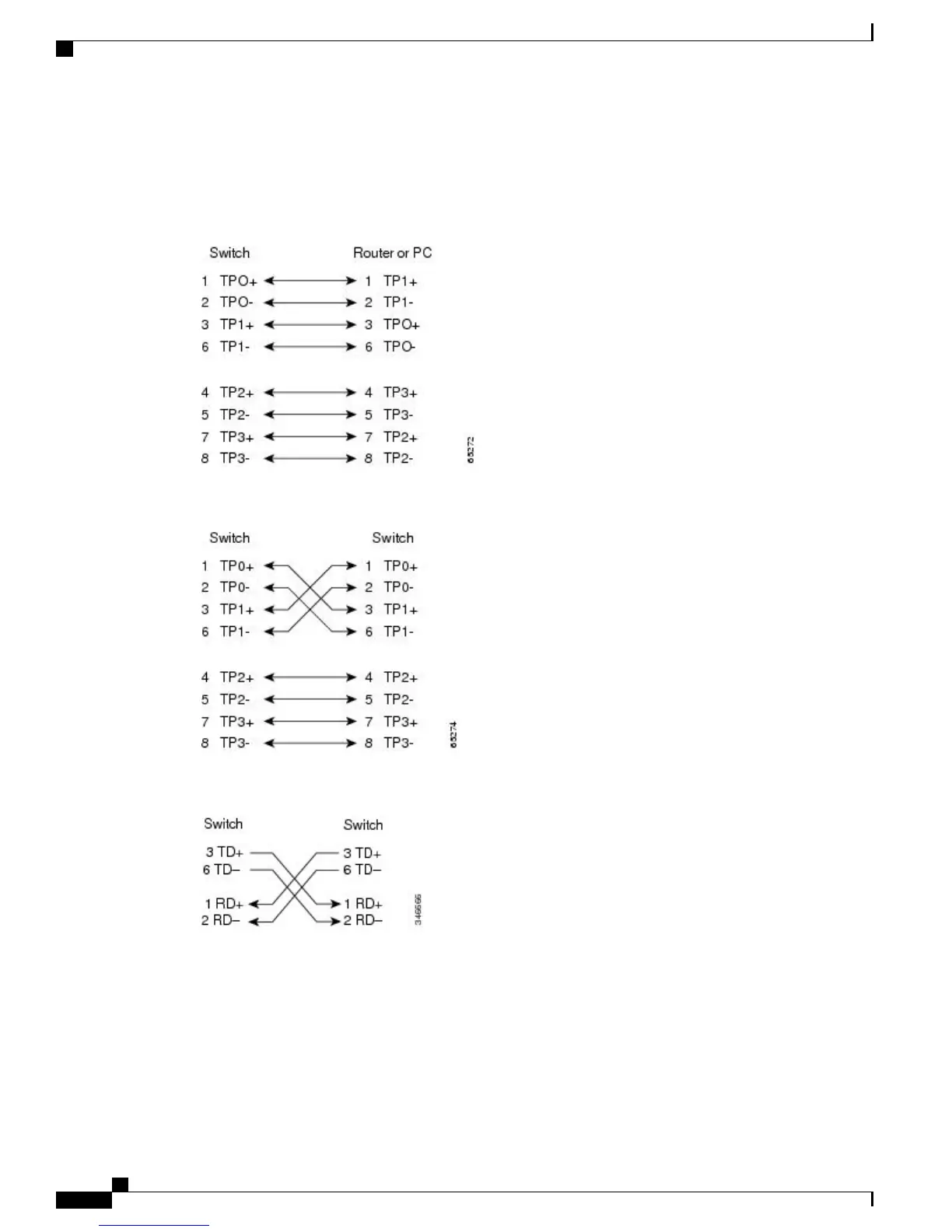

Figure 45: Four T
wisted-Pair Straight-Through Cable Schematic
Figure 46: Four T
wisted-Pair Crossover Cable Schematic
Figure 47: T
wo T
wisted-Pair Straight-Through Cable Schematic
Figure 48: T
wo T
wisted-Pair Crossover Cable Schematic
Catalyst 2960-X and 2960-XR Switch Hardware Installation Guide
80
OL-28309-02
Connector and Cable Specifications
Cable Pinouts
89
91
