Cisco MDS 9000 Series Hardware Installation Guide

Front View
The following figure shows the front view of the switch:

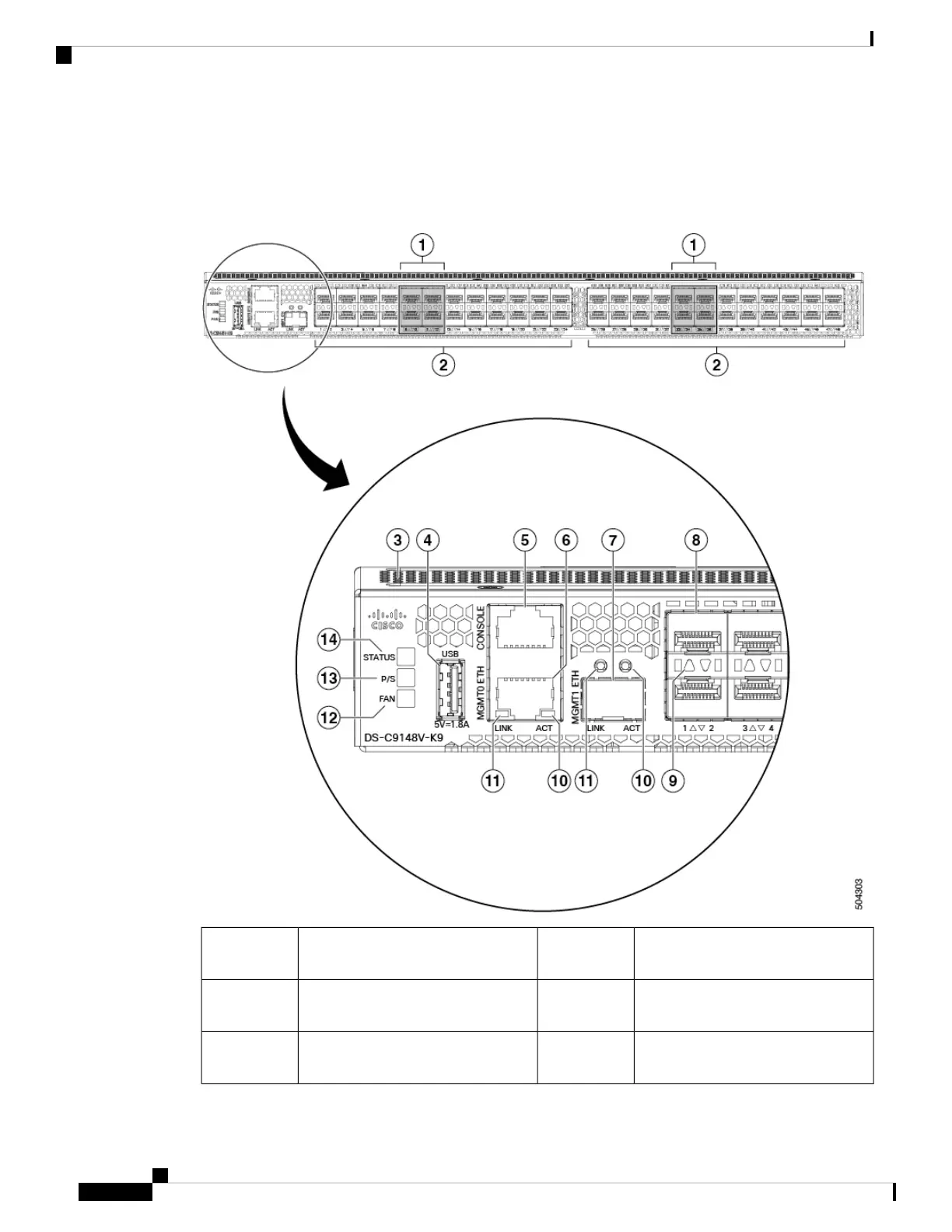

Figure 1: Front View of the Switch
Fixed FC ports (48 x 8/16/32/64 Gbps,
pluggable SFP or SFP+ compatible)
8Fibre Channel encryption ports (9-12)
and (33-36)
1
FC port status LEDs (48)9Fibre Channel port groups. A port
group consists of 24 ports.
2
Management port packet activity
LEDs (2)
10Airflow grill3
Cisco MDS 9148V-K9 Switch Hardware Installation Guide
6
Overview of Cisco MDS 9148V-K9 Switch
Front View
