Fan Modules
The fan modules have a fixed handle for insertion and removal from the chassis. The switch requires a minimum
of two operating fan modules to prevent automatic shutdown. It supports up to four fan modules. This provides
redundancy for uninterrupted operation in the event of fan module failure. The switch fan modules are
hot-swappable to also allow swapping out of a fan module during operation for uninterrupted operation.
During a fan module replacement, the internal airflow through the chassis is changed. If the internal airflow
is disrupted for too long, the preset temperature thresholds will be exceeded and the system will automatically
shut down to prevent permanent damage.

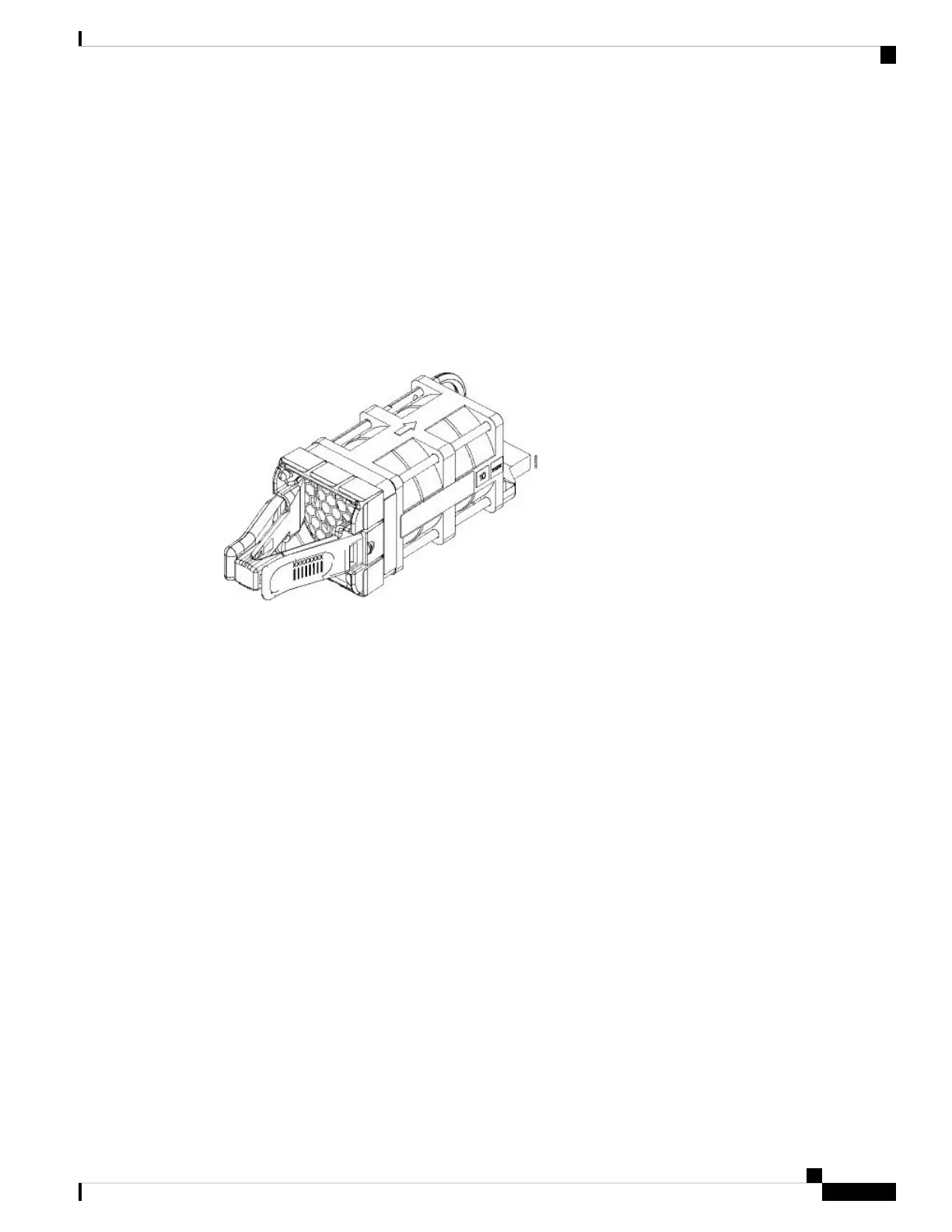

Figure 4: Fan Module
To facilitate different data center cooling configurations of hot or cold aisles and racks, there are two models
of fan modules. The first type has airflow with port-side intake and exhaust at the rear of the chassis. The
second type has airflow in the opposite direction, that is, rear-chassis intake and port-side exhaust. The airflow
direction is denoted on each fan module as follows:
• Red—Port-side intake airflow
• Blue—Port-side exhaust airflow
For more information on installing and removing fan modules, see Installing and Removing Fan Modules.
Power Supplies
The switch PSUs have an unswitched power socket, a PSU status LED and a handle for insertion and removal
of the PSU from the chassis. The switch requires a minimum of one operating PSU. It supports up to two
PSUs. This provides redundancy for uninterrupted operation in the event of PSU or grid failure. The PSUs
are hot-swappable to allow swapping out of a PSU during operation for uninterrupted operation. During a
PSU replacement, the internal airflow through the chassis is changed. If the internal airflow is disrupted for
too long, the preset temperature thresholds will be exceeded and the system will automatically shut down to
prevent permanent damage.
Cisco MDS 9148V-K9 Switch Hardware Installation Guide
11
Overview of Cisco MDS 9148V-K9 Switch
Fan Modules
