Smart Network Application (SNA)

Tags

502 Cisco 350, 350X and 550X Series Managed Switches, Firmware Release 2.4, ver 0.4

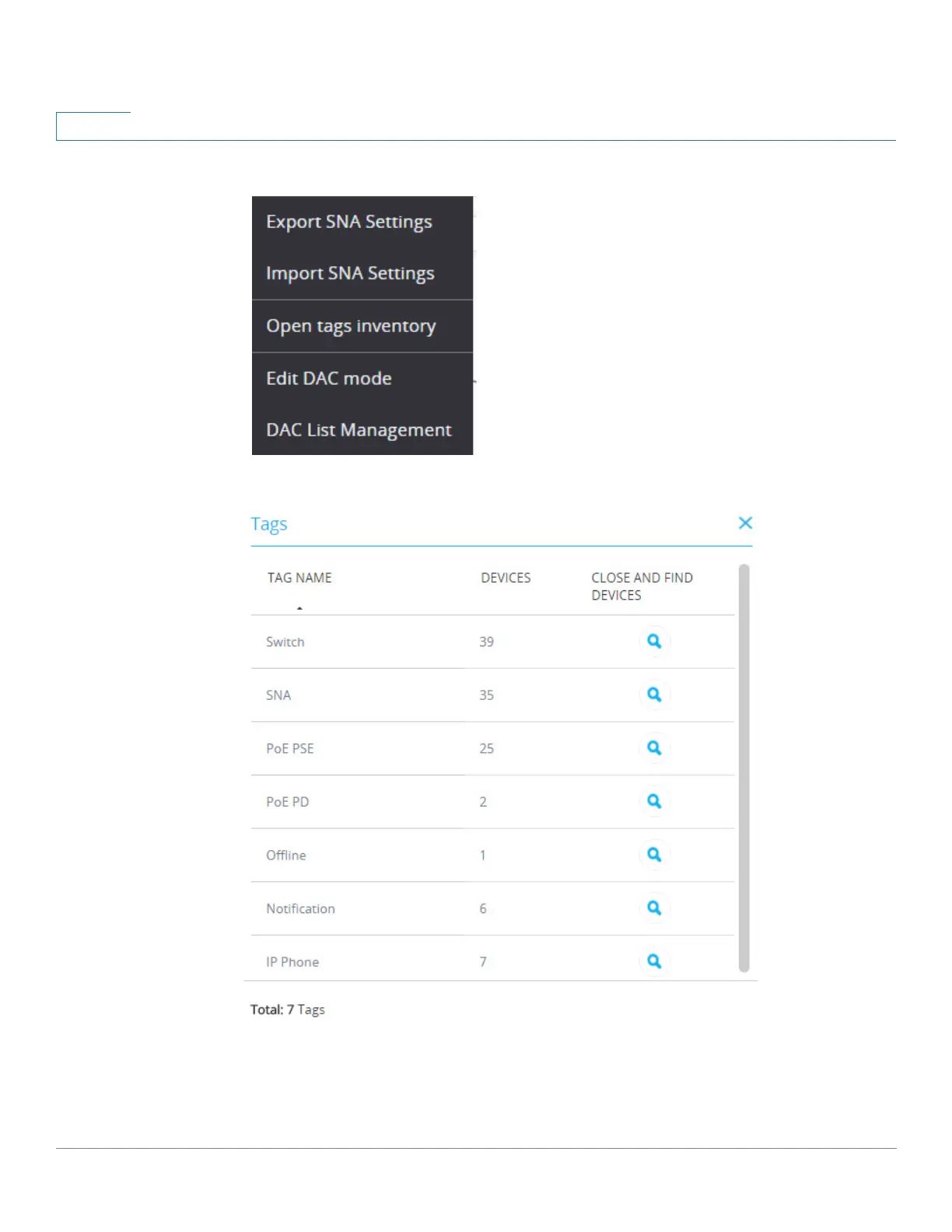

The following menu is displayed:

STEP 2 Select Open tags inventory. A list of tags is displayed, as shown below:

STEP 3 Click the search icon for a specific tag in the Close and Find Devices column to see a list

of devices with the selected tag.
