Cisco Unmanaged Rackmount Switches 5
Connecting Network Devices

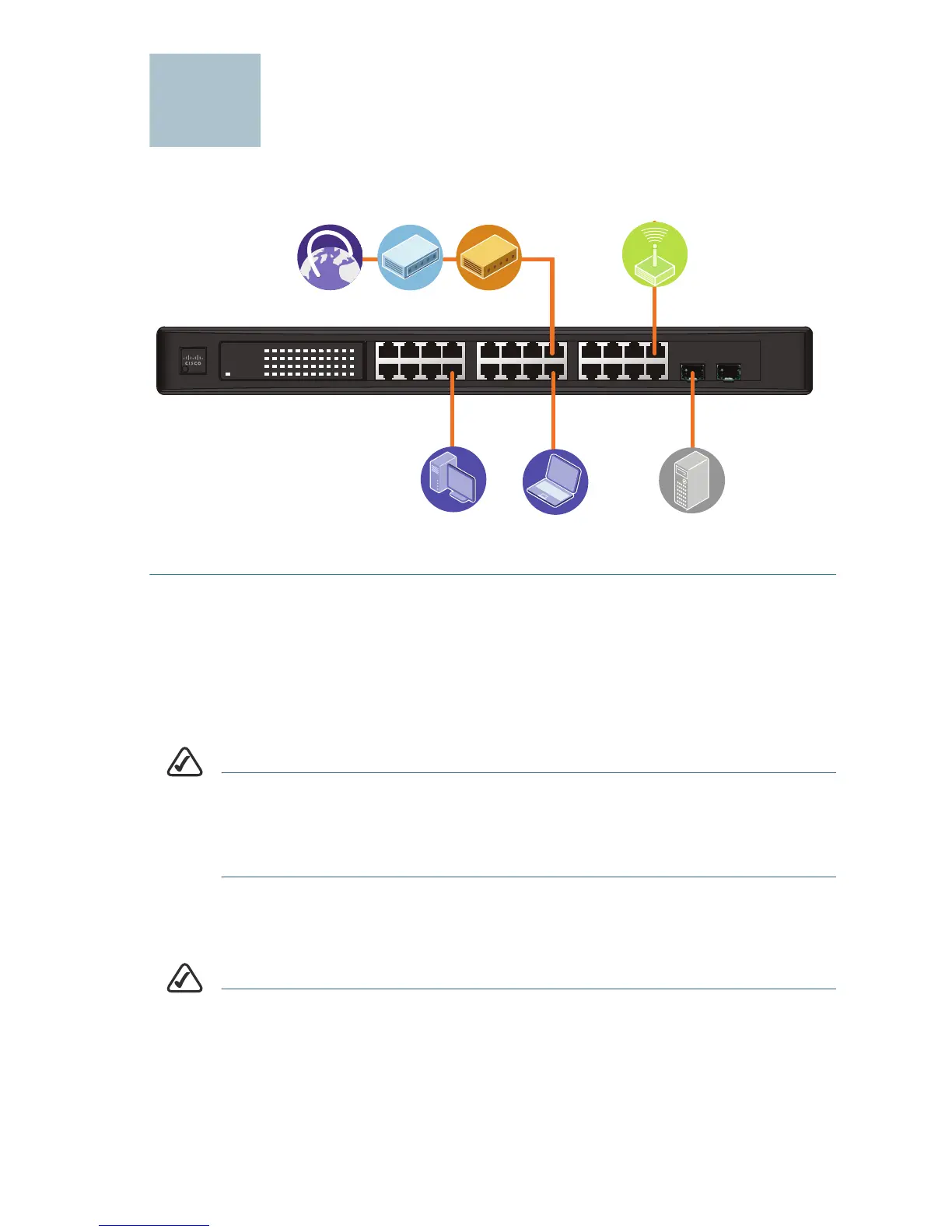

The application diagram is an example of a typical network configuration.
To connect the unmanaged rackmount switch to the network:
STEP 1 Connect the Ethernet cable to the Ethernet port of a computer,
printer, network storage, or other network device.
STEP 2 Connect the other end of the network Ethernet cable to one of the
numbered unmanaged rackmount switch Ethernet ports.
The LED of the port lights if the device connected is active.
NOTE If the uplink from one unmanaged, cascaded switch to another is
moved from one port to another port, it can take up to one minute
for full network operation to resume. This is normal and expected
behavior.
STEP 3 Repeat Step 1 and Step 2 for each device you want to connect to
the unmanaged rackmount switch.
NOTE To prioritize voice or video traffic by using the QoS feature on the
switch, set flow control to off in the configurations of the
connected devices. Otherwise, flow control might send a pause
123 4 5678 9101112
13 14 15 16 17 18 19 20 21 22 23 24
miniGBIC1
(Shared with 12) (Shared with 24)
miniGBIC2
Cisco Small Busine ss
SR2024
24-Por t
10/100/ 1000 Swit ch
1 2 3 4 5 6 7 8 9 1 0 11 12 /
miniGBIC1
Link/Act
Gigabit
Link/Act
Gigabit
SYSTEM
13 14 15 16 17 18 19 20 21 22 23 24 /
miniGBIC2
193803
