Cisco Webex Desk Pro User Manual

15435.02 Cisco Webex Desk Pro User Guide JUNE 2020
All contents © 2020 Cisco Systems, Inc. All rights reserved
10

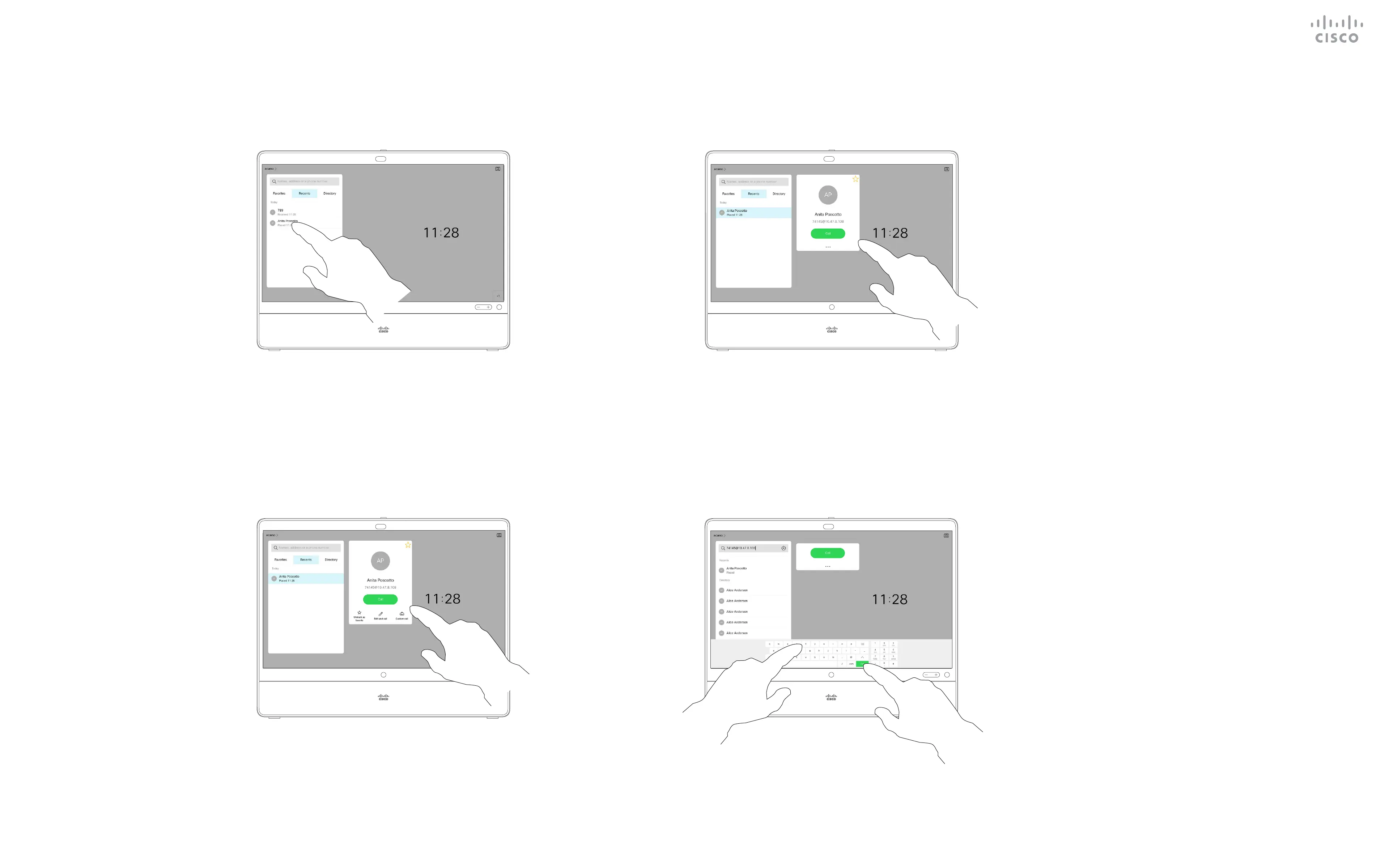

Tap Edit and Call.
Locate the entry to be edited before a call
is placed. Tap that entry. This opens the Call
menu.
Tap the More (...) icon just below the green Call
button.
Use the keyboard to edit and then tap either of
the green Call buttons to place the call.
For how to enter the Contacts list, see
the previous page.
You may have to edit an entry in one
of the Contact lists before you place
the call. There may be a need to add
a prex, a sux, or otherwise alter the
entry to ensure success.
Edit a Contact Before Calling
Video Calls
About Entry Edits
1 2
43

Cisco Webex Desk Pro Specifications

General

Product type	Group video conferencing system
Product color	Silver
Number of persons	- person(s)
Megapixel	12 MP
Sensor type	CMOS
Gain control type	Auto
Image sensor size	1/2.8 \
Vertical field of view	59 °
Horizontal field of view	71 °
Supported video modes	1080p, 1440p, 2160p
Video formats supported	H.263, H.264
Resolution at capture speed	1920x1080@60fps, 3840x2160@30fps, 3840x2160@60fps
Voice codecs	AAC, G.711, G.722, G.722.1, G.729, OPUS
Frequency range	60 - 20000 Hz
RMS rated power	14 W
USB 2.0 ports quantity	3
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Display diagonal	27 \
Touchscreen type	Capacitive
Display brightness	300 cd/m²
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	89 °
Telepresence	-
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 90 %
Power consumption (max)	200 W
Country of origin	China
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	75 mm
Width	630 mm
Height	510 mm
Weight	11600 g
Package width	779.78 mm
Package height	218.44 mm
Package weight	15960 g
