15435.02 Cisco Webex Desk Pro User Guide JUNE 2020
All contents © 2020 Cisco Systems, Inc. All rights reserved
11

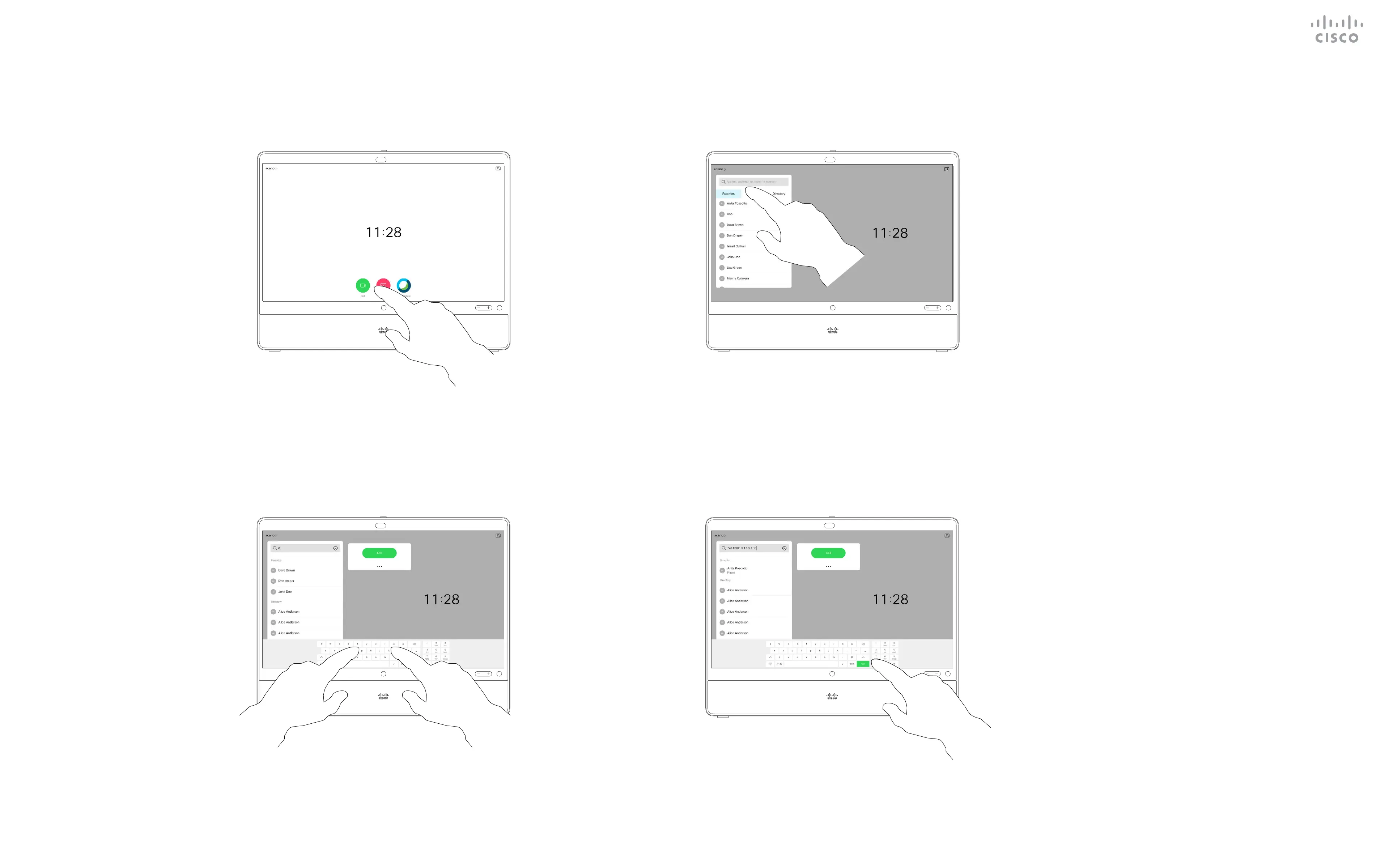

Key in a name, number, or address. Matches and
suggestions appear as you type. If the correct
match appears, tap that match, otherwise keep
typing.
Tap the green Call button.
Tap the Search or Dial eld. This opens the
keyboard
When you have typed or located whom to call,
tap either of the green Call buttons to place the
call.
You may call someone who is not
listed in your list of contacts by keying
in their name, address or number
using the virtual keyboard appearing
on the display.
Anyone you have previously called, or
who has called you, appears in the
Recents list and you may transfer any
of them to your list of Favorites. This is
described in the section Contacts.
Sometimes you need to enter
numbers during a call, typically to
reach extensions or to provide a pin
code.
Tap Touch Tones (this button appears
as soon as the call is placed) to invoke
the keypad needed for this.
Note that Recents can be cleared
from the web interface only.
Place a Call Using Name, Number, or Address
Video Calls
About Placing Calls
1 2
43

Other manuals for Cisco Webex Desk Pro

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Cisco Webex Desk Pro and is the answer not in the manual?

Cisco Webex Desk Pro Specifications

General IconGeneral
Product typeGroup video conferencing system
Product colorSilver
Number of persons- person(s)
Megapixel12 MP
Sensor typeCMOS
Gain control typeAuto
Image sensor size1/2.8 \
Vertical field of view59 °
Horizontal field of view71 °
Supported video modes1080p, 1440p, 2160p
Video formats supportedH.263, H.264
Resolution at capture speed1920x1080@60fps, 3840x2160@30fps, 3840x2160@60fps
Voice codecsAAC, G.711, G.722, G.722.1, G.729, OPUS
Frequency range60 - 20000 Hz
RMS rated power14 W
USB 2.0 ports quantity3
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Ethernet LAN data rates10, 100, 1000 Mbit/s
Display diagonal27 \
Touchscreen typeCapacitive
Display brightness300 cd/m²
Contrast ratio (typical)1000:1
Viewing angle, horizontal89 °
Telepresence-
Storage temperature (T-T)-20 - 60 °C
Operating temperature (T-T)0 - 35 °C
Storage relative humidity (H-H)10 - 90 %
Operating relative humidity (H-H)20 - 90 %
Power consumption (max)200 W
Country of originChina
Quantity per pack1 pc(s)
Harmonized System (HS) code85176990
Weight and Dimensions IconWeight and Dimensions
Depth75 mm
Width630 mm
Height510 mm
Weight11600 g
