Cisco Webex Desk Pro User Manual

15435.02 Cisco Webex Desk Pro User Guide JUNE 2020
All contents © 2020 Cisco Systems, Inc. All rights reserved
40
Turn Selfview On and O
Camera Control
Selfview shows what others see from
your device. You can use it to conrm
that they see what you want them to
see.
The selfview appears as a PiP
(Picture-in-Picture).
From time to time you may want to
have the selfview activated during the
meeting. This could, for example, be
to ensure that you remain seen on the
screen.

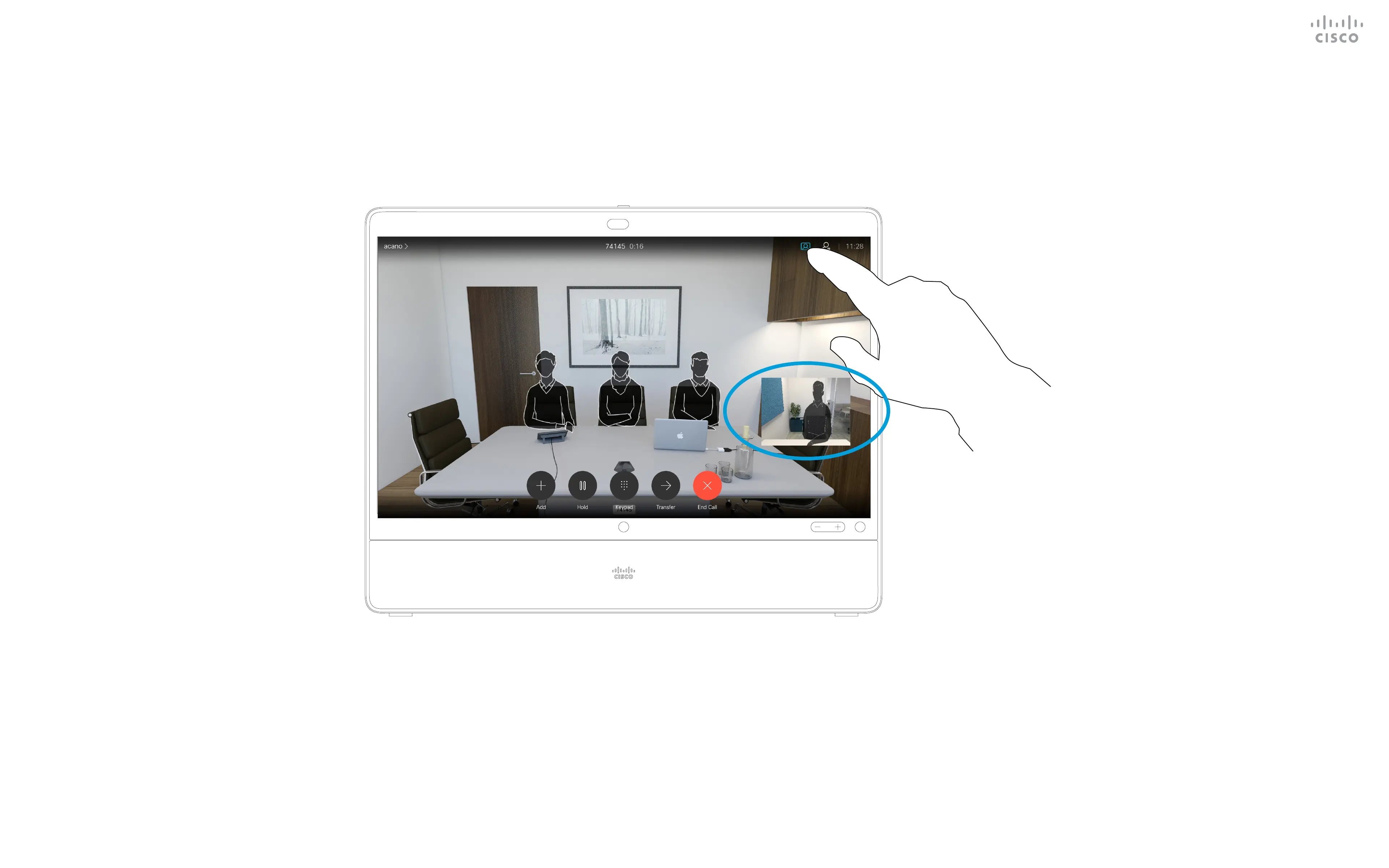

Tap as shown at left to activate or
deactivate the Selfview.
It may happen that the current position
of the selfview blocks important parts
of the image on your screen. You may
therefore want to move it (see the
next page for more).
Why Selfview?

Cisco Webex Desk Pro Specifications

General

Product type	Group video conferencing system
Product color	Silver
Number of persons	- person(s)
Megapixel	12 MP
Sensor type	CMOS
Gain control type	Auto
Image sensor size	1/2.8 \
Vertical field of view	59 °
Horizontal field of view	71 °
Supported video modes	1080p, 1440p, 2160p
Video formats supported	H.263, H.264
Resolution at capture speed	1920x1080@60fps, 3840x2160@30fps, 3840x2160@60fps
Voice codecs	AAC, G.711, G.722, G.722.1, G.729, OPUS
Frequency range	60 - 20000 Hz
RMS rated power	14 W
USB 2.0 ports quantity	3
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Display diagonal	27 \
Touchscreen type	Capacitive
Display brightness	300 cd/m²
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	89 °
Telepresence	-
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 90 %
Power consumption (max)	200 W
Country of origin	China
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	75 mm
Width	630 mm
Height	510 mm
Weight	11600 g
Package width	779.78 mm
Package height	218.44 mm
Package weight	15960 g
