3-33
Cisco 2900 and 3900 Series Hardware Installation
OL-18712-01
Chapter 3 Installing and Connecting the Router
Connecting to a Console Terminal or Modem

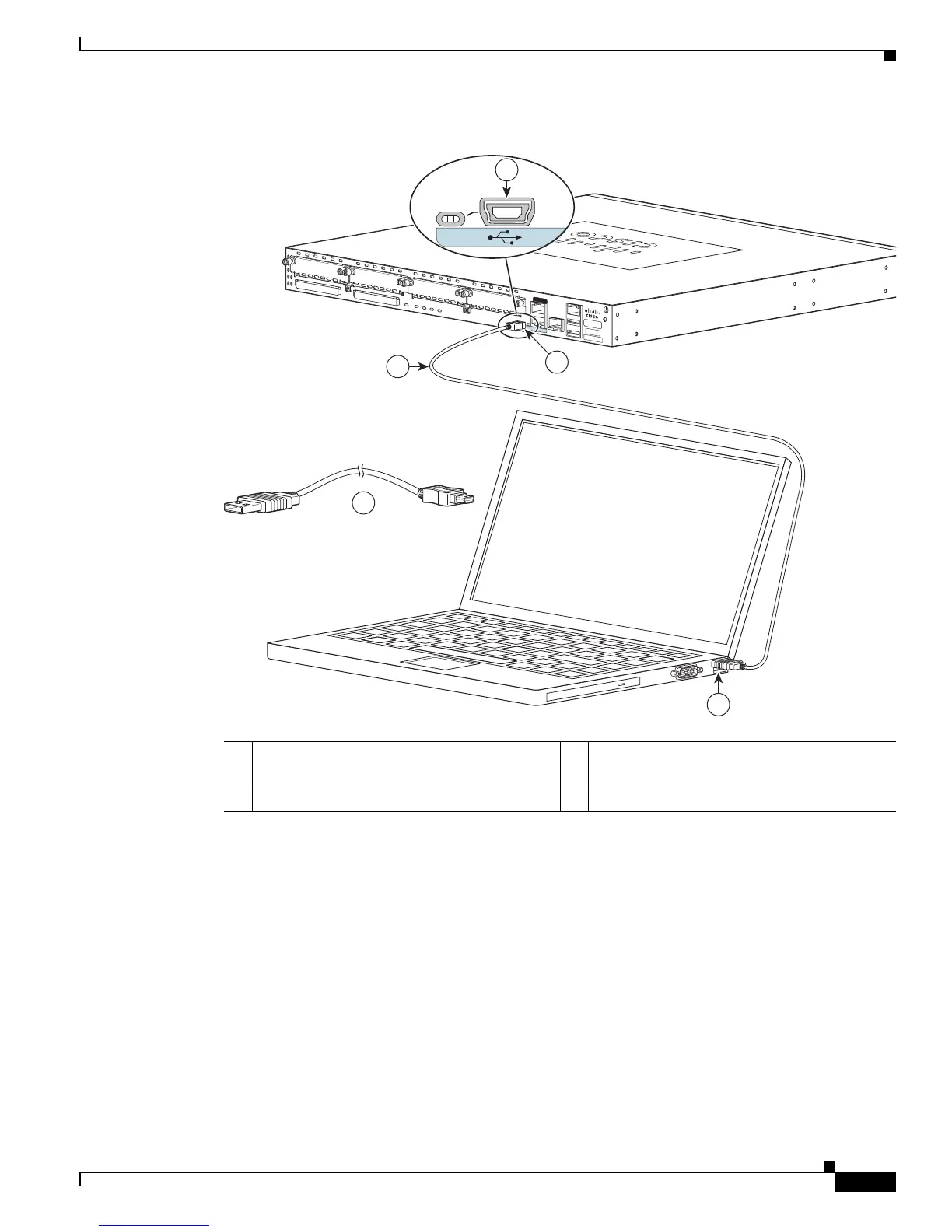

Figure 3-35 Connecting the USB Console Cable to the Cisco 2901 Router
1 USB 5-pin mini USB Type-B console port 2 USB 5-pin mini USB Type-B to USB Type-A
console cable
3 USB Type-A
DO NOT REMOVE DURING
NETWORK OPERATION
DO NOT REMOVE DURING
NETWORK OPERATION
3
2
251603
2
CONSOLE
AUX
1
EN
1
