Chapter 5 Installing and Upgrading Internal Modules and FRUs
Accessing Internal Modules
Step 5
Center the cover over the chassis and lower it onto the chassis.
Step 6
Install the three cover screws.

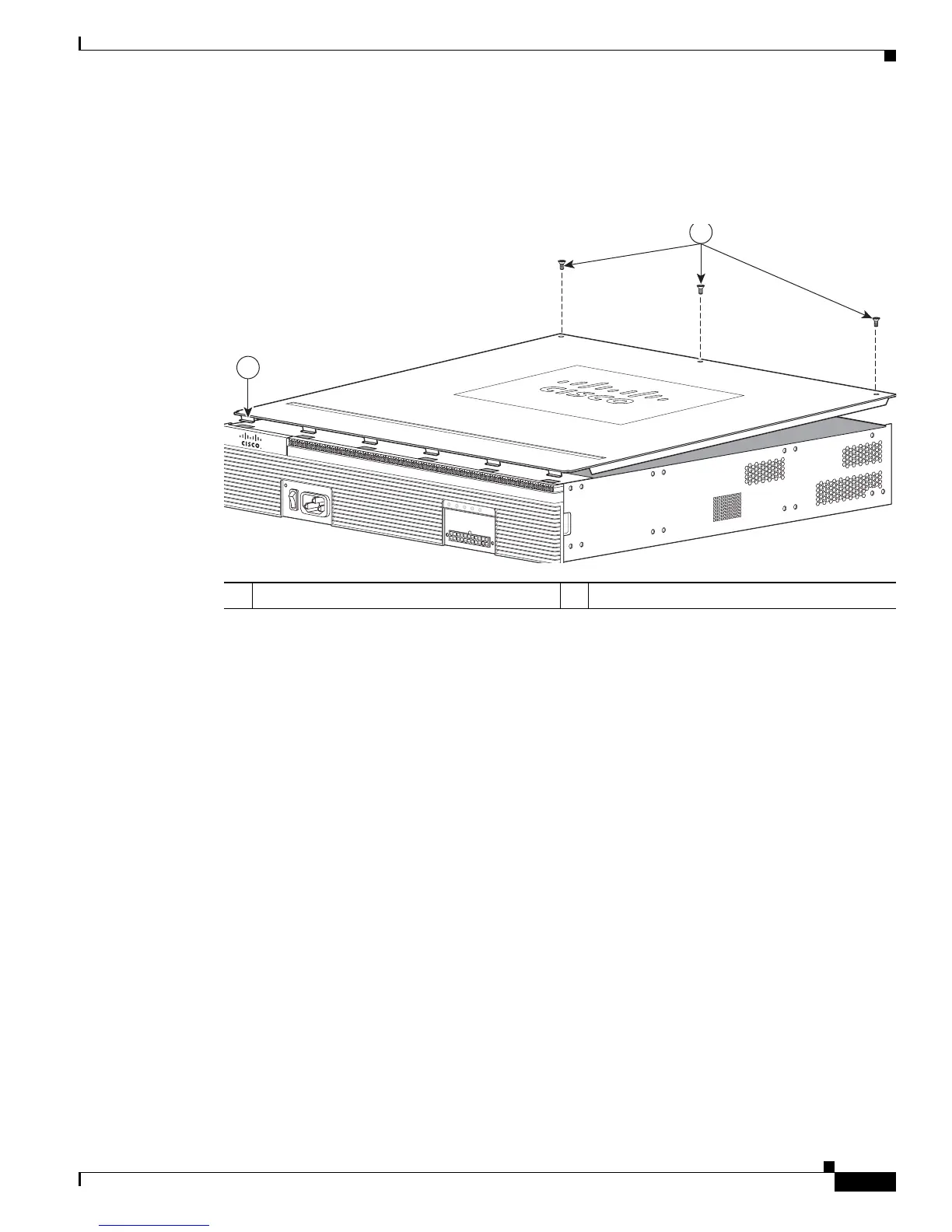

Figure 5-1 Installing Cover on Cisco 2900 Series Routers
1 Cover tabs 2 Cover screws (3)
Cisco 2900 Series
250906
1
2
