Clarion CX400 User Manual

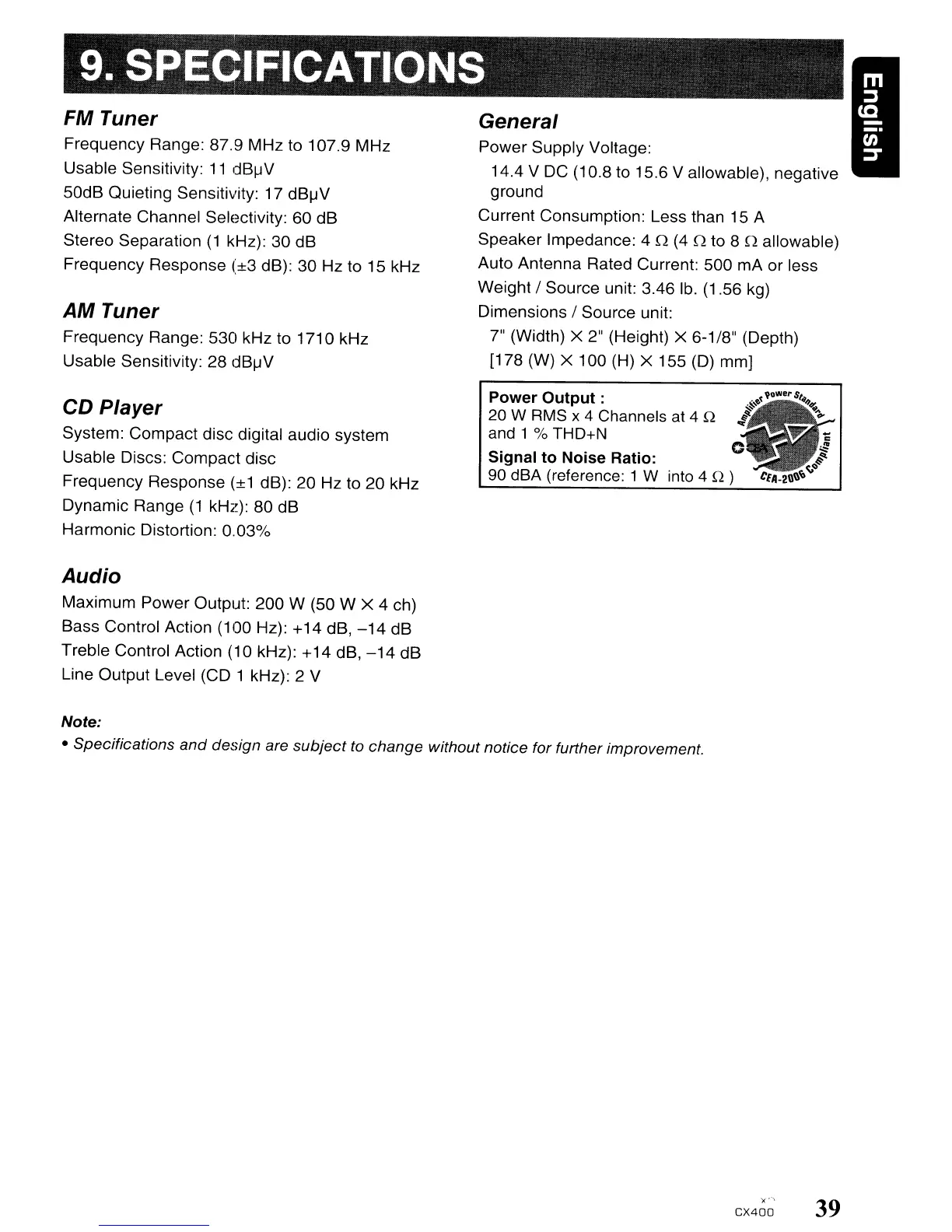

9. SPECIFICATIONS
FM Tuner
Frequency Range: 87.9 MHz to 107.9 MHz
Usable Sensitivity:
11 dBI.JV
50dB Quieting Sensitivity: 17 dBIJV
Alternate Channel Selectivity: 60 dB
Stereo Separation
(1 kHz): 30 dB
Frequency Response (±3 dB): 30 Hz to 15 kHz
AM Tuner
Frequency Range: 530 kHz to 1710kHz
Usable Sensitivity: 28 dBIJV
CD Player
System: Compact disc digital audio system
Usable Discs: Compact disc
Frequency Response
(±1 dB): 20 Hz to 20 kHz
Dynamic Range
(1 kHz): 80 dB
Harmonic Distortion: 0.03%
Audio
Maximum Power Output: 200 W (50 W X 4 ch)
Bass Control Action (100 Hz): +14 dB,
-14 dB
Treble Control Action
(10kHz): +14 dB, -14 dB
Line Output Level (CD 1 kHz): 2 V
General
Power Supply Voltage:
14.4 V DC (10.8 to 15.6 V allowable), negative
ground
Current Consumption: Less than 15 A
Speaker Impedance: 4
n (4 n to 8 n allowable)
Auto Antenna Rated Current: 500
mA or less
Weight / Source unit: 3.46 lb. (1.56 kg)
Dimensions / Source unit:
7" (Width) X 2" (Height) X 6-1/8" (Depth)
[178 (W) X 100 (H) X 155 (D) mm]
Power Output:
20 W RMS x 4 Channels at 4 Q
and 1 % THD+N
Signal to Noise Ratio:
90 dBA (reference: 1 W into 4 Q )
Note:
• Specifications and design are subject to change without notice for further improvement.
CX4~~' 39
9. SPECIFICATIONS
FM Tuner
Frequency Range: 87.9 MHz to 107.9 MHz
Usable Sensitivity:
11 dBI.JV
50dB Quieting Sensitivity: 17 dBIJV
Alternate Channel Selectivity: 60 dB
Stereo Separation
(1 kHz): 30 dB
Frequency Response (±3 dB): 30 Hz to 15 kHz
AM Tuner
Frequency Range: 530 kHz to 1710kHz
Usable Sensitivity: 28 dBIJV
CD Player
System: Compact disc digital audio system
Usable Discs: Compact disc
Frequency Response
(±1 dB): 20 Hz to 20 kHz
Dynamic Range
(1 kHz): 80 dB
Harmonic Distortion: 0.03%
Audio
Maximum Power Output: 200 W (50 W X 4 ch)
Bass Control Action (100 Hz): +14 dB,
-14 dB
Treble Control Action
(10kHz): +14 dB, -14 dB
Line Output Level (CD 1 kHz): 2 V
General
Power Supply Voltage:
14.4 V DC (10.8 to 15.6 V allowable), negative
ground
Current Consumption: Less than 15 A
Speaker Impedance: 4
n (4 n to 8 n allowable)
Auto Antenna Rated Current: 500
mA or less
Weight / Source unit: 3.46 lb. (1.56 kg)
Dimensions / Source unit:
7" (Width) X 2" (Height) X 6-1/8" (Depth)
[178 (W) X 100 (H) X 155 (D) mm]
Power Output:
20 W RMS x 4 Channels at 4 Q
and 1 % THD+N
Signal to Noise Ratio:
90 dBA (reference: 1 W into 4 Q )
Note:
• Specifications and design are subject to change without notice for further improvement.
CX4~~' 39
