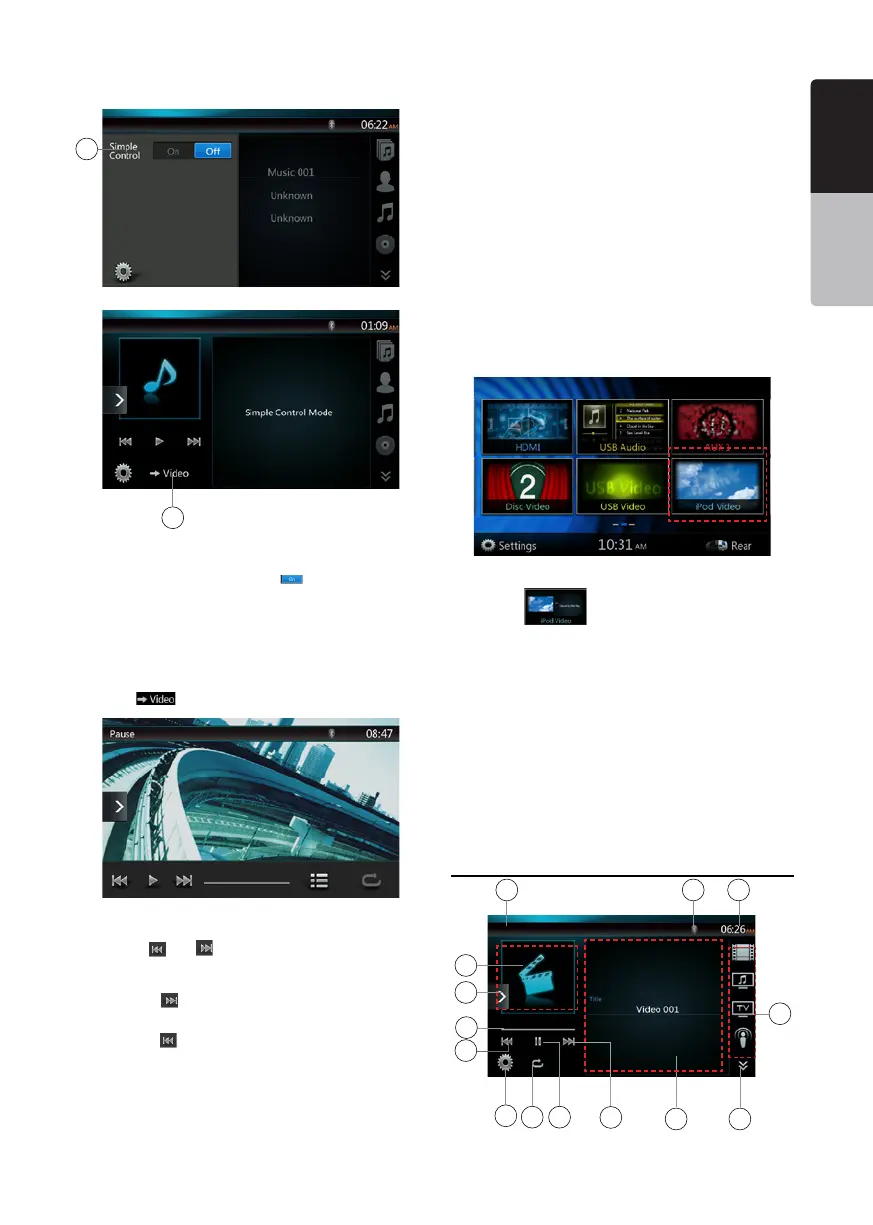

Simple Control Mode
1 - Simple Control button
2 - Video Mode button
• If the Simple Control is set to [
] in option menu,
the screen will become Simple Control Mode. It can
also display the video of iPod/iPhone regardless it
is iPod Audio or iPod Video mode. But only
“Previous Track”、“Play/Pause” and “Next Track”
can be operated.
• Touch [
]the video will play from iPod.
Skipping a Track (Simple Control Mode)
Touch the [ ] or [ ] button during playback. Tracks
are skipped, as many times as the button is touched,
and playback starts.
• Touch the [
] button to starts playback from the
beginning of the next track.
• Touch the [
] button to starts playback from the
beginning of the current track.
When this button is touched again within about 5
seconds, playback starts from the beginning of the
previous track.
Note: In Simple Control Mode, the best way is to control
the iPod just on iPod.
Selecting a list item from a list screen
(1). Touch the list screen and ick up or down to scroll
the list.
(2). Touch a desired list item on the screen to display
the corresponding list of tracks.
(3). Touch the desired track name on the list to play it.
iPod Video Menu Operations
Connect your iPod/iPhone to the USB connector.
The system will automatically detect the connected
device and the iPod Video button will be enabled for
operation on the Main Menu screen.
• When an iPod/iPhone is already connected
Touch the [
] button on the Main Menu
screen. The system changes to the iPod Video mode,
and starts playback from the previous position.
Touch MENU button on Operational Panel to return to
the Main Menu.
• Viewing video data in the iPod/iPhone (only for the
iPod/iPhone with video features)
When you connect an iPod/iPhone with video features
by using the optional connector cable for iPod/iPhone
with video, you can enjoy the video data and slide
show data stored in the iPod/iPhone and show them
on the display of this unit (and the rear monitor if
connected).
iPod Video ID3 Mode Screen
2
7
8
12
4
5
6
21
13
910
11
14
3
1

Clarion NX404 Specifications

General

MP3 playback	Yes
CD-R playback	-
Audio formats supported	MP3
Video formats supported	DIVX
USB version	2.0
Line outputs (RCA)	6
USB ports quantity	2
DIN size	2 DIN
Output power	72 W
Product color	Black
Disc types supported	DVD, DVD+R, DVD+RW, DVD-R, DVD-RW
Audio output channels	4.0 channels
Equalizer bands quantity	3
Maximum power per channel	18 W
Analog signal format system	NTSC, PAL
Signal-to-Noise Ratio (SNR)	93 dB
AM band range	530 - 1710 kHz
FM band range	87.9 - 107.9 MHz
Supported radio bands	AM, FM
Aspect ratio	17:9
Display type	TFT
Display diagonal	6.2 \
Output power description	4 x 18

Weight and Dimensions

Weight	2268 g
Dimensions (WxDxH)	178 x 172 x 100 mm
