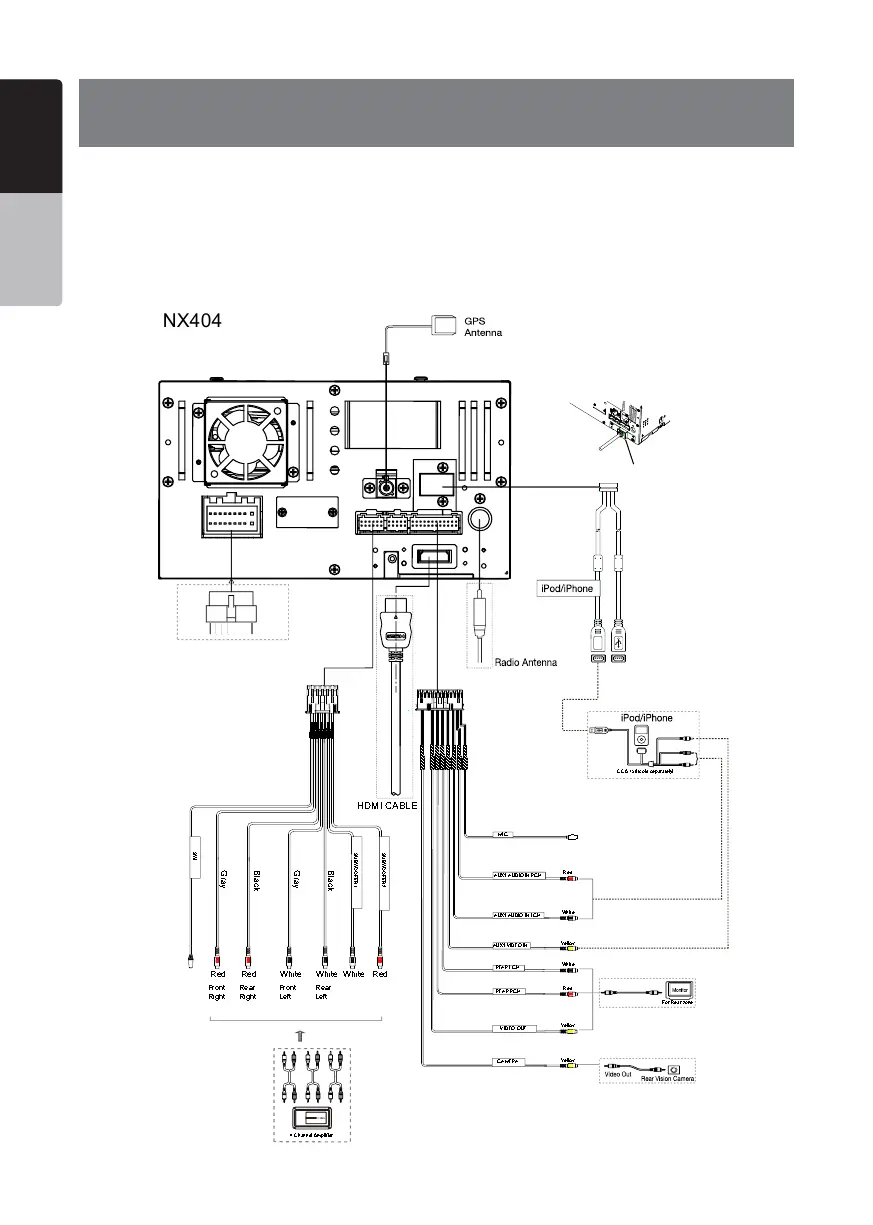

24. WIRE CONNECTION GUIDE
Note:
• Before installing, be sure to disconnect the negative cable of the car battery.
• In the optional devices, the RCA cables and the Connector cables are separately-sold
items.
•
When connect the HDMI cable, be sure to x with the HDMI cable holder and Machine screw(M2 x
4).
NX404
CAMERA
VIDEO OUT
REAR RCH
REAR LCH
AUX2 VIDEO IN
AUX2 AUDIO IN LCH
MIC
Red
Red
White
White
Yellow
Yellow
Yellow
CCA-750(sold separately)
4-Channel Amplifier
Red
Front
Right
Rear
Right
Front
Left
Rear
Left
Gray Black Gray Black
Red RedWhite White White
SWI
SUBWOOFER1
SUBWOOFER2
AUX2 AUDIO IN RCH
HDMI CABLE
For Rear zone
Refer to
page 57
HDMI cable holder

Clarion NX404 Specifications

General

MP3 playback	Yes
CD-R playback	-
Audio formats supported	MP3
Video formats supported	DIVX
USB version	2.0
Line outputs (RCA)	6
USB ports quantity	2
DIN size	2 DIN
Output power	72 W
Product color	Black
Disc types supported	DVD, DVD+R, DVD+RW, DVD-R, DVD-RW
Audio output channels	4.0 channels
Equalizer bands quantity	3
Maximum power per channel	18 W
Analog signal format system	NTSC, PAL
Signal-to-Noise Ratio (SNR)	93 dB
AM band range	530 - 1710 kHz
FM band range	87.9 - 107.9 MHz
Supported radio bands	AM, FM
Aspect ratio	17:9
Display type	TFT
Display diagonal	6.2 \
Output power description	4 x 18

Weight and Dimensions

Weight	2268 g
Dimensions (WxDxH)	178 x 172 x 100 mm
