56
English
Owner’s manual

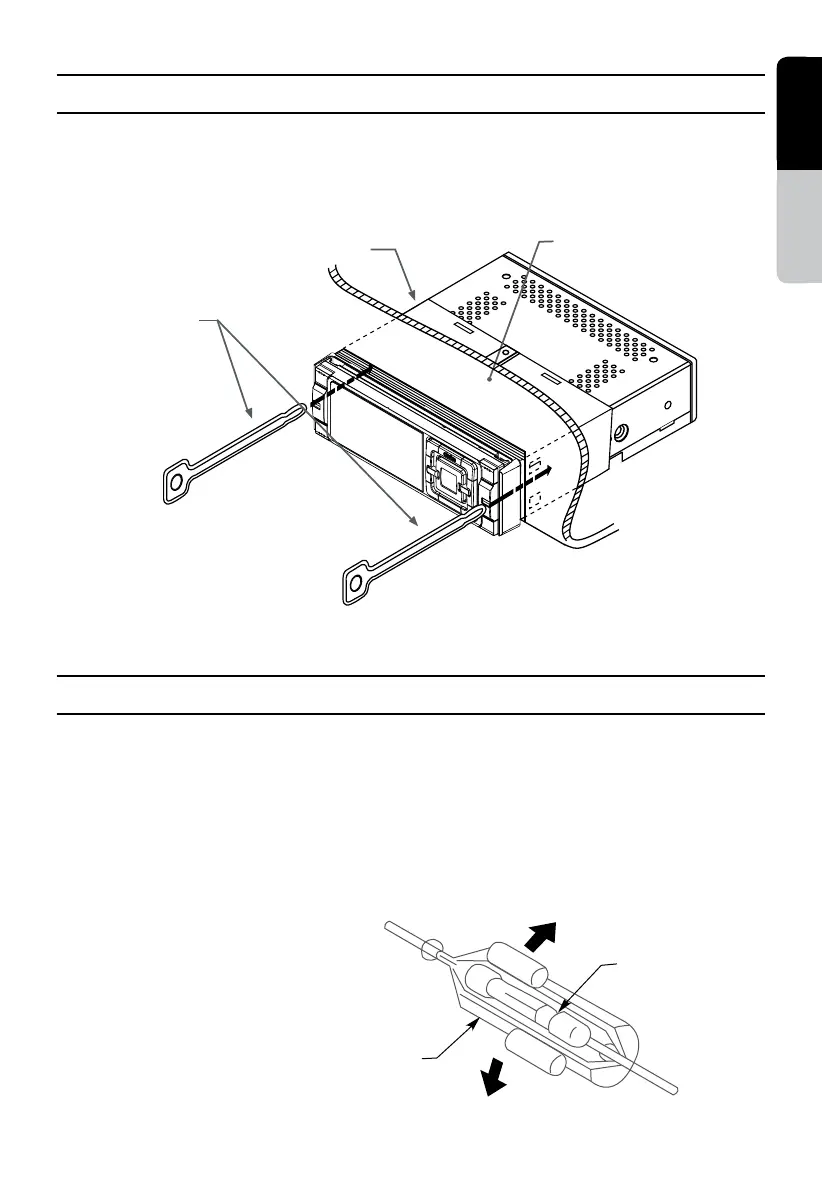

Removing The Main Unit
※ Keep the hook plate. You cannot remove the main unit without disengaging the hook plate.
① When the rear of the main unit has been secured through the method as shown in the following
figure, unfasten the special screw.
② Insert the hook plate into the universal mounting bracket, then pull the main unit out by the hook
plate. (Insert both the right and left edges of the hook plate.)
2-Hook Plate
Unversal mounting bracket
Instrument panel
Cautions On Wiring
Be sure to turn the power off before wiring. Be particularly careful where you route the wires.
Keep them well away from the engine, and exhaust pipe, etc. Heat may damage the wires.
If the fuse should blow, check to see if the wiring is correct. If it is, replace the fuse with a new one
with the same amperage rating as the original. To replace the fuse, remove the old fuse of the
power supply lead and insert the new One.
※ There are various types of fuse holder. Do not let the battery side touch other metal parts.
※ After the connection, fix the lead by a clamp or insulation tape for protection.
Fuse
Fuse holder
Main Unit Installation (Universal Mount)
① Place the universal mounting bracket into the instrument panel, use a screwdriver to bend each
stopper of the universal mounting bracket inward, then secure the stopper.
② Wire as shown in Section "Electrical Connection".
③ Insert the main unit into the universal mounting bracket until it locks.
• Console opening dimensions
※ Some car models require special mounting kits for proper installation. Consult your Clarion
dealer for details.
※ Fasten the front stopper securely to prevent the main unit from coming loose.
7.2" (183mm)
2.0"
53mm
Hole
Rear Iastening hole (of vehicle)
Instrument Panel
Hole
Stopper
Screw Drover
Unviersal Mounting
Bracket
Stopper
To Next Page
