Disassembly
2 - 16 Removing and Installing the Processor
2.Disassembly
Processor Installation Procedure
1. Insert the CPU , pay careful attention to the pin alignment, it will fit only one way (DO NOT FORCE IT!), and turn
the release latch towards the lock symbol (Figure 12b).
2. Remove the sticker (Figure 12c) from the heat sink.
3. Insert the heat sink
as indicated in Figure 12c.
4. Tighten screws
- in the order indicated on the label.
5. Replace the component bay cover and tighten the screws (page 2 - 14).

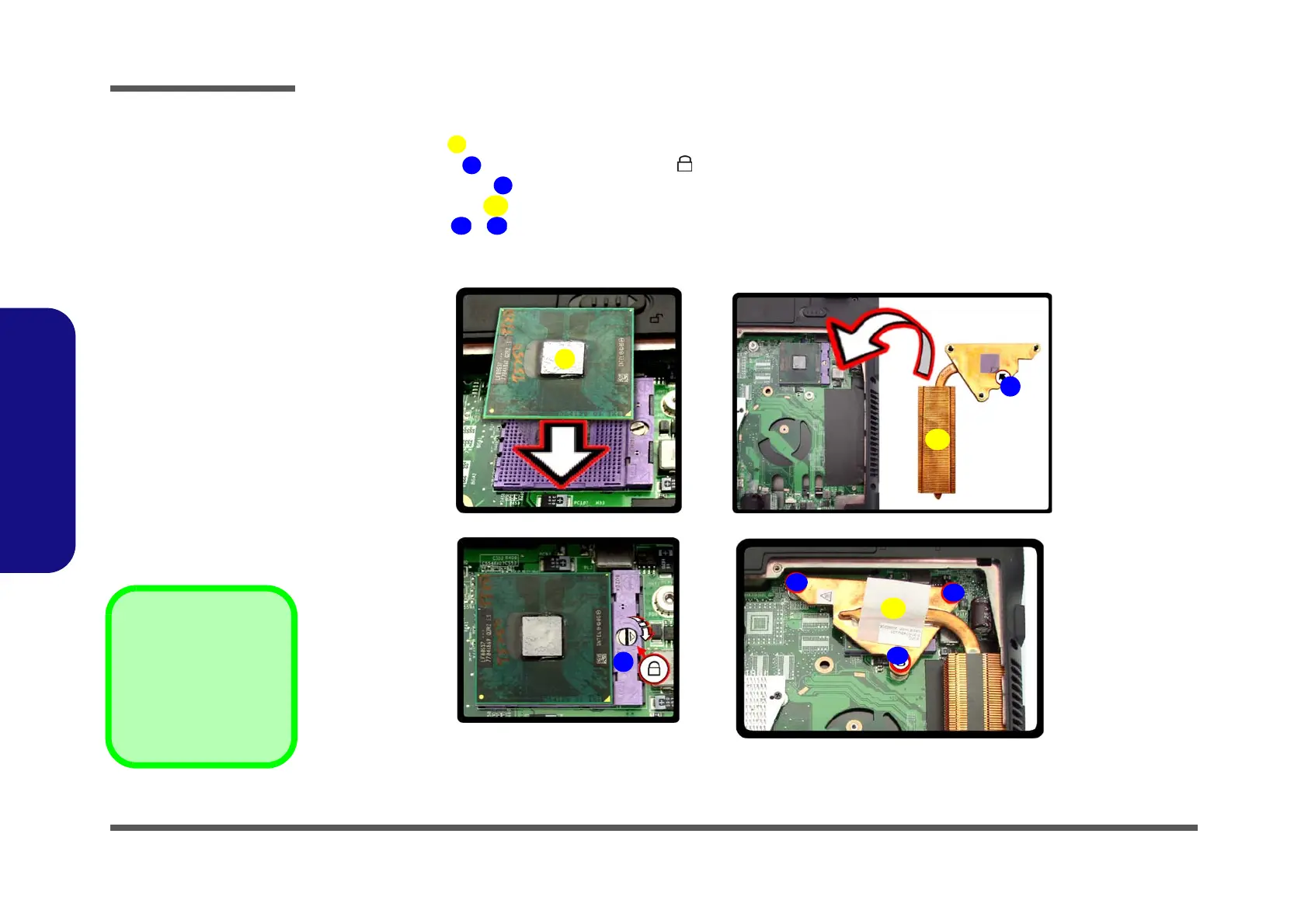

Figure 12
Processor
Installation
a. Insert the CPU.
b. Turn the release latch to-
wards the lock symbol.
c. Remove the sticker from
the heat sink and insert
the heat sink.
d. Tighten the screws.
1. CPU
4. Heat Sink
•3 Screws
To Next Page
