2 - 18 Removing the Bluetooth Module
2.Disassembly
Removing the Bluetooth Module
1. Turn off the computer, remove the battery (page 2 - 5).
2. Locate the Bluetooth bay cover, and remove the screw and cover .
3. Remove the screw and turn the module over.
4. Carefully separate the Bluetooth module from the connector
and disconnect the cable .
5. Lift the Bluetooth module
(Figure 14c) up and off the computer.

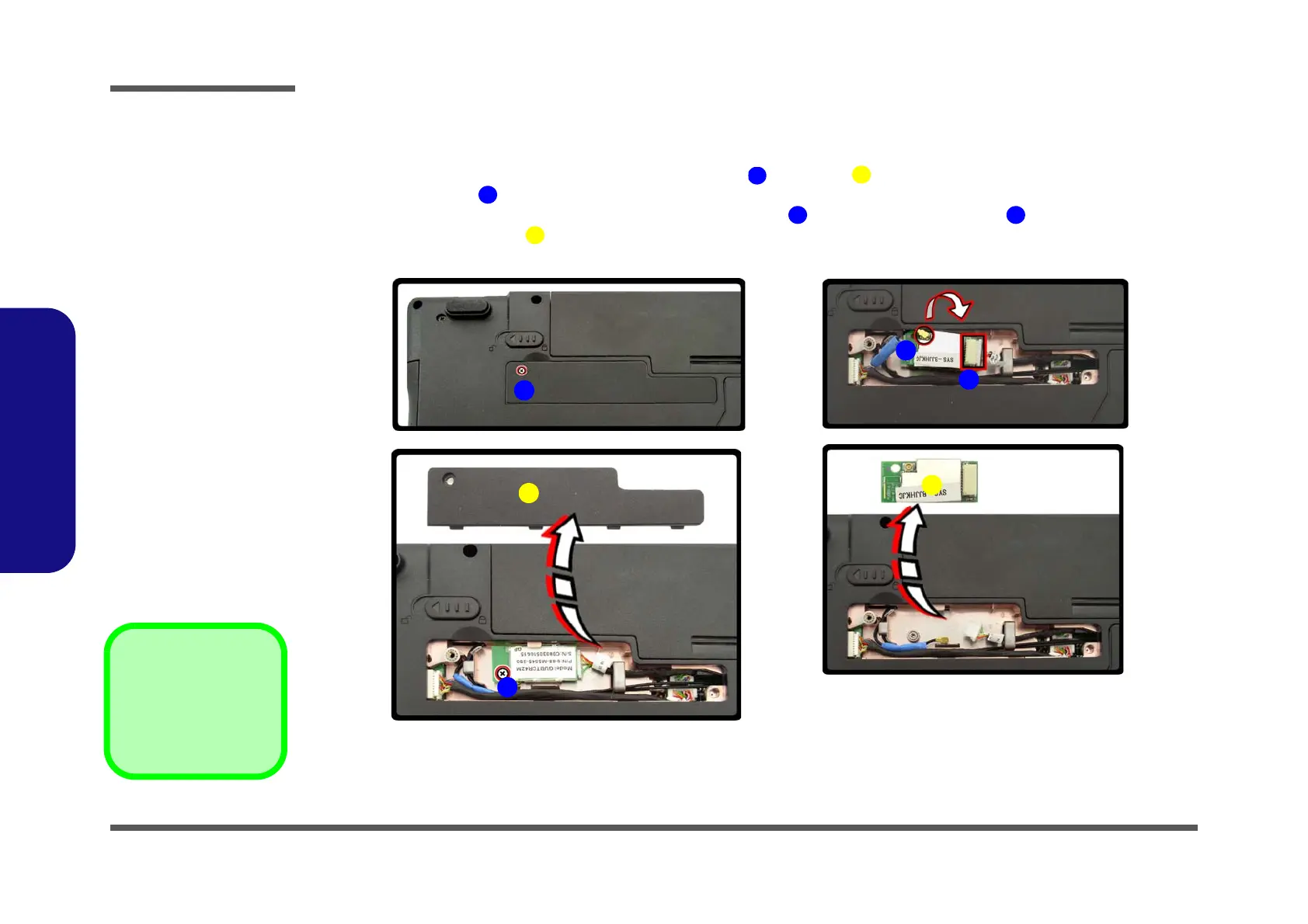

Figure 14
Bluetooth Module
Removal
a. Remove the screw.
b. Lfit the cover and remove
the screw.
c. Disconnect the cable and
the connector.
d. Lift the Bluetooth module
up off the socket.
2. Cover
6. Bluetooth Module
•2 Screws
