1 - 10 Mainboard Overview - Top (Connectors)
1.Introduction

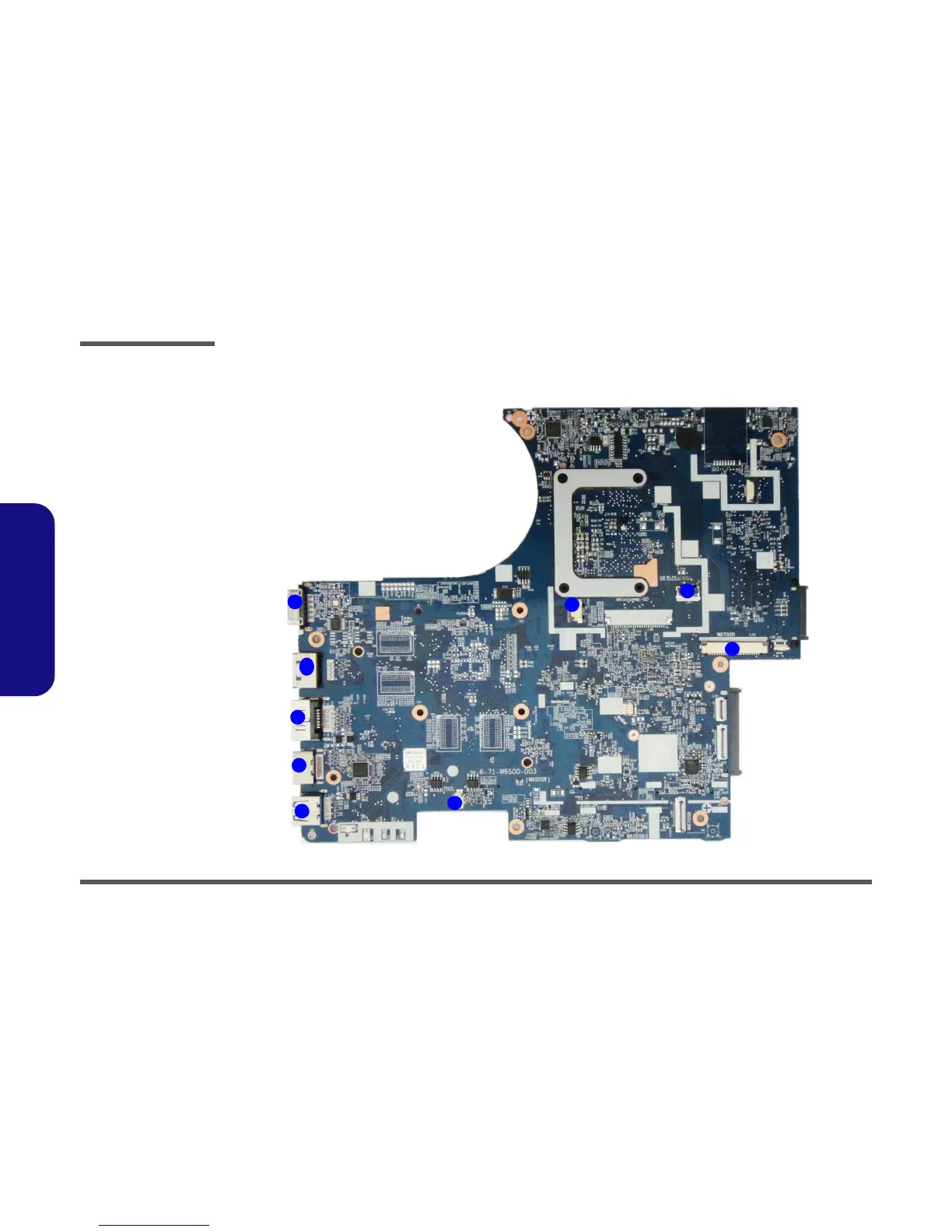

Mainboard Overview - Top (Connectors)
Figure 9
Mainboard Top
Connectors
1. External Monitor
Port
2. RJ-45 LAN Jack
3. Combo eSATA/
USB Port 3.0
4. HDMI-Out Port
5. USB Port 3.0
Connector
6. Speaker Cable
Connector
7. Keyboard Cable
Connector
8. Touchpad Cable
Connector
9. Touchpad Cable
Connector
10
11
9
7
8
6
5
1
2
3
4
